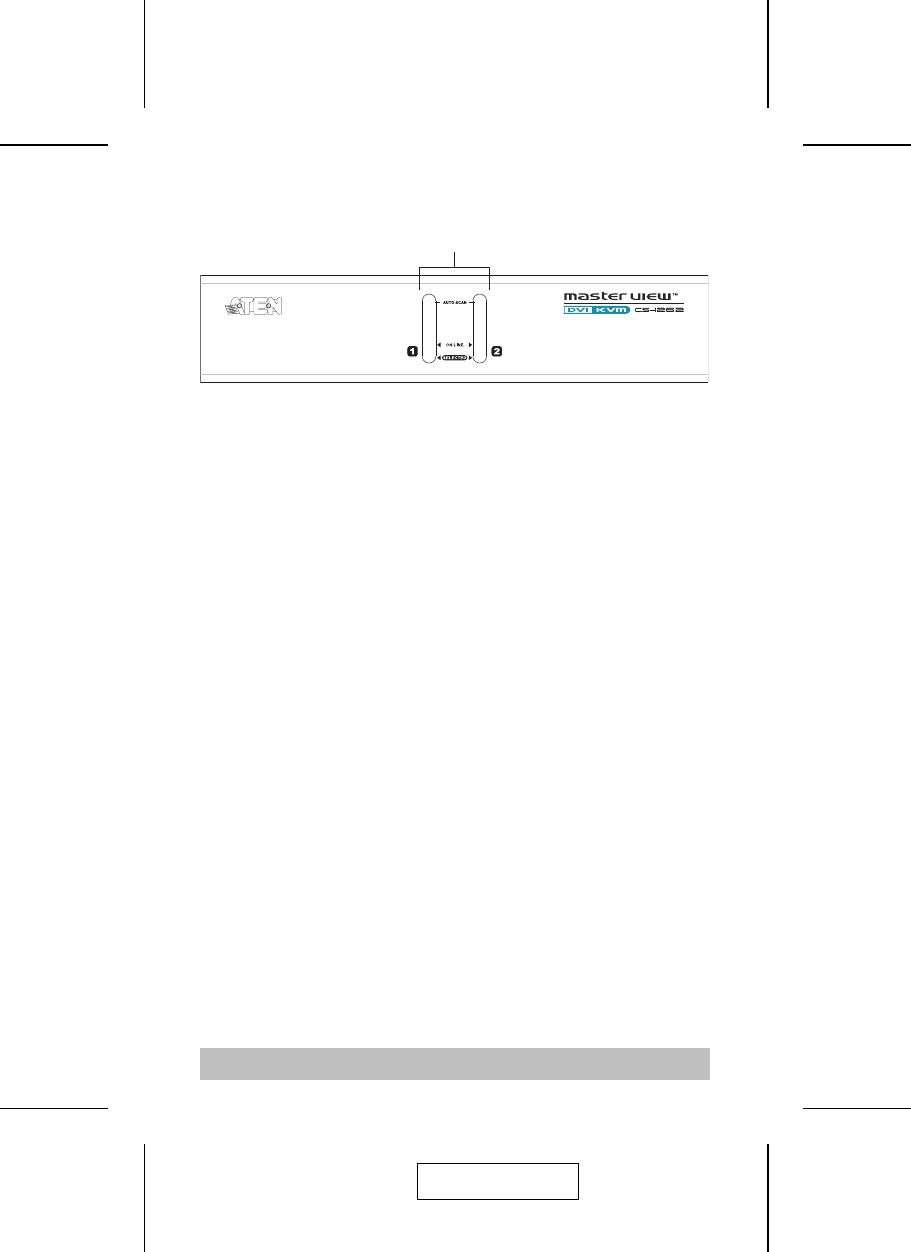

Front Panel
1. Port Selection Switches
2. Port LEDs
The Port LEDs are built into the Port Selection Switches.
The upper ones are the On Line LEDs; the lower ones are
the Selected Port LEDs:
M An On Line LEDs lights ORANGE to indicate that the
computer attached to the corresponding port is up and
running.
M A Selected LED lights GREEN to indicate that the
computer attached to its corresponding port is the one
that has the KVM focus.
