FP202800, FP202900
7
www.chpower.com
Operating Instructions and Parts List
For replacement parts or technical assistance,
call 1-800-543-6400
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Address any correspondence to:
Campbell Hausfeld
Attn: Customer Service
100 Production Drive
Harrison, OH 45030
1

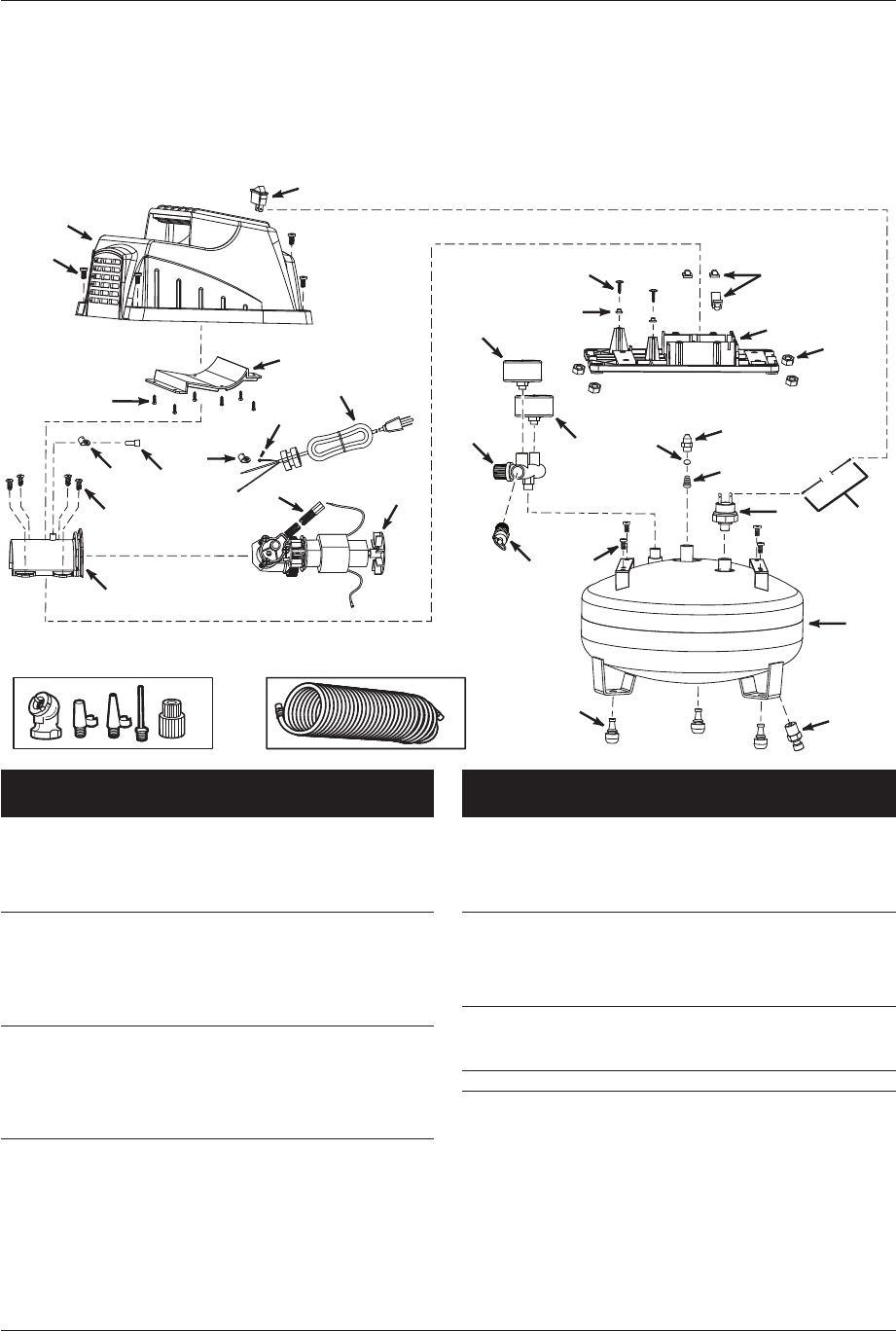

3
12
2
20
17
25
19
21
16
23 32
18
28
27
22
8
24
30
29
10
9
15
26
31
13
14
11
4
33
6
7
5
27
Ref. Part
No. Description Number Qty.
1 Shroud ▲ 1
2 Shroud insert ▲ 1
3 ON/OFF switch FP204824AV 1
4 M3x15 screw ▲ 6
5 Regulator Gauge FP204013AV 1
6 Tank Gauge FP204012AV 1
7 Safety valve V-215102AV 1
8 Plastic base ■ 1
9 Pressure switch FP209530AV 1
10 Check valve (includes
part #29 & #30) FP209532AV 1
11 M4 x 0.7 x 6 screw * 1
12 M6 x 1.0 x 10 screw ● 4
13 Drain valve D-1403 1
14 Rubber foot (tank) ◆ 3
15 Wire (pressure switch
to power switch) FP209523AV 1
16 Power cord ▼ 1
17 M3 x 10 screw * 1
18 Pump/motor assembly
(includes part #21) FP209039AV 1
19 Motor cover ■ 1
20 Wire clip FP202823AV 1
Ref. Part
No. Description Number Qty.
21 Exhaust tube kit FP202839AV 1
22 Motor isolator bushing kit FP209037AV 1
23 Accessories FP204008AV 1
24 Nut ● 4
25 Screw ● 4
26 Screw ● 4
27 Regulator assembly FP204835AV 1
28 Screw ● 2
29 Spring (see part #10) 1
30 Cap (see part #10) 1
31 Tank -- 1
32 25-foot Recoil Hose MP268100AV 1
33 Strain relief ▼ 1
REPAIR KITS AND ACCESSORIES
▲ Shroud kit FP209034AV
■ Motor cover and base kit FP209038AV
● Fastener kit FP209040AV
◆ Rubber foot kit FP202836AV
▼ Power cord / strain relief kit FP209534AV
✩ Decal kit FP202837AV
* Standard hardware item
-- Not available
