POWER CORD FOR 265-V
UNITS
A power cord is included for 265-v units. The power
cord is 18 in. long (cord extends 15 in. from bottom of
front panel) and per UL and National Electrical codes
must plug into an electrical subbase.
POWER CORD PROTECTION
FOR 230/208-V UNITS
The power cord for the 230/208-v unit provides power
cord protection by automatically disconnecting power
during an unsafe condition. Power can be restored by
pressing the RESET button.
BI-MOLDED CONDENSER
SHROUD
The bi-molded condenser shroud provides easy access
for service and maintenance of the condenser coil and
related components.
SNOW BAFFLE
The snow baffle is provided to keep snow from blow-
ing into the intake and landing on the internal compo-
nents of the PTAC unit. Melted snow can form ice on
moving parts and cause damage to the unit.
Bi-Molded Condenser Shroud
BI-MOLDED
CONDENSER
SHROUD
2
0
1
9
1
8
1
7
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9
8
7
6
5
4
3
2
1

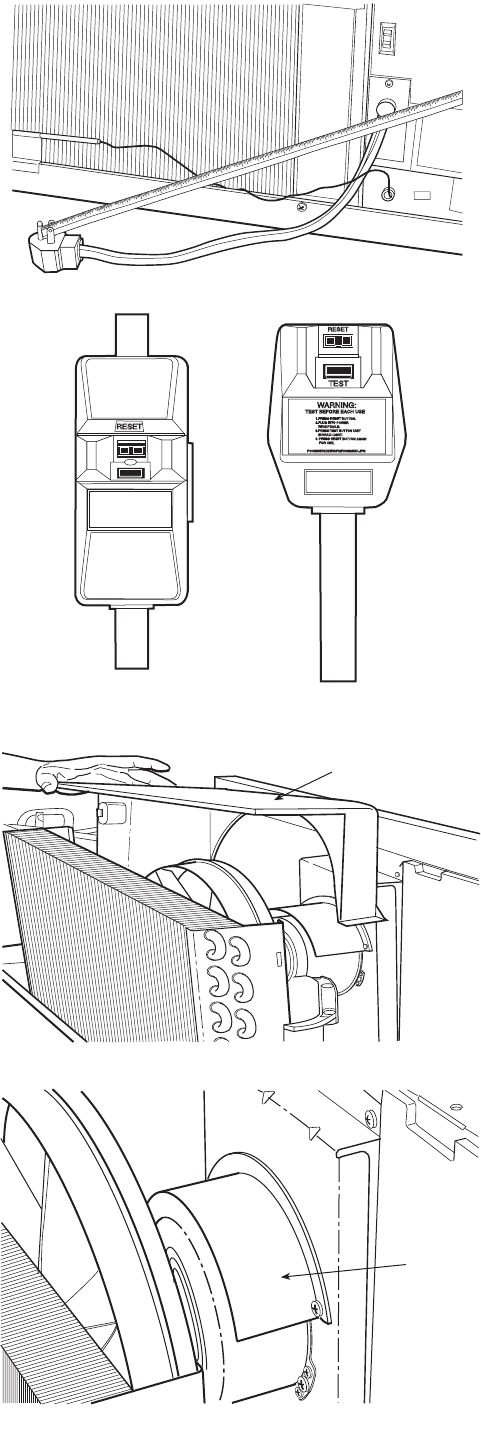

265-V Unit with Power Cord
