Chapter 1 Overview of Cisco 3700 Series Routers
Modules, Interface Cards, and Memory
• Installation in a 19- or 23-inch rack or on a desk
• Support for Cisco Redundant Power System
• 3-rack unit (RU) chassis height

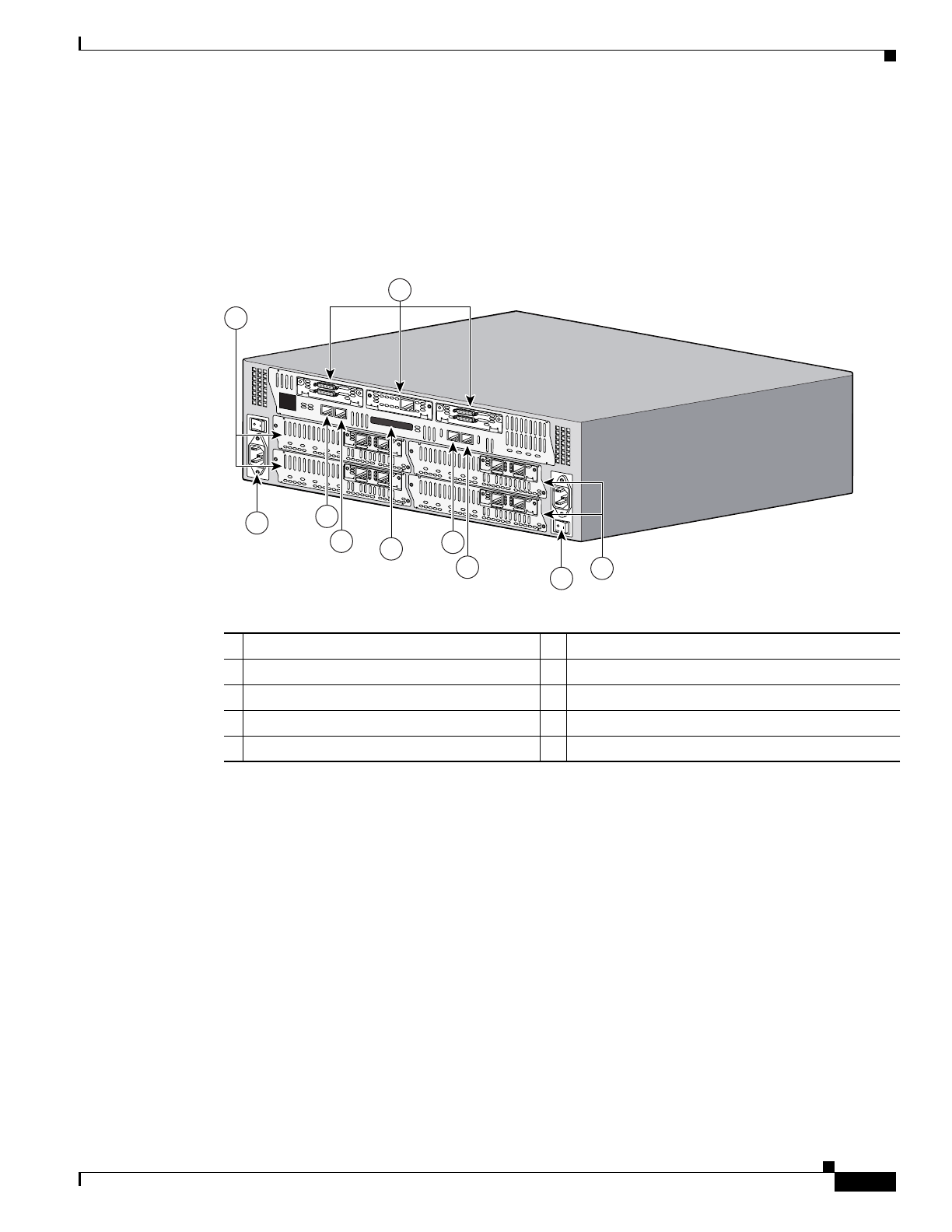

Figure 1-2 shows the rear panel of the Cisco 3745 router.
Figure 1-2 Rear Panel of the Cisco 3745 Router
Modules, Interface Cards, and Memory
• For information on installing network modules, see the following documents:
• Quick Start Guide: Network Modules for Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700
Series Routers
• Cisco Network Modules Hardware Installation Guide
For information on installing WICs and VICs, see the following documents:
• Quick Start Guide: Interface Cards for Cisco 1600, 1700, 2600, 3600, and 3700 Series
• Cisco Interface Cards Hardware Installation Guide
For information on installing AIMs, see the following documents:
• AIM Installation Quick Start Guide: Cisco 2600, Cisco 3600, and Cisco 3700 Series
• Installing Advanced Integration Modules in Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700
Series Routers
1 Interface card slots 6 Cisco 3700 CompactFlash memory card slot
2 Network modules 7 Auxiliary port
3 Power supply 8 Console port
4 Fast Ethernet 0/0 port 9 Power supply
5 Fast Ethernet 0/1 port 10 Network modules
