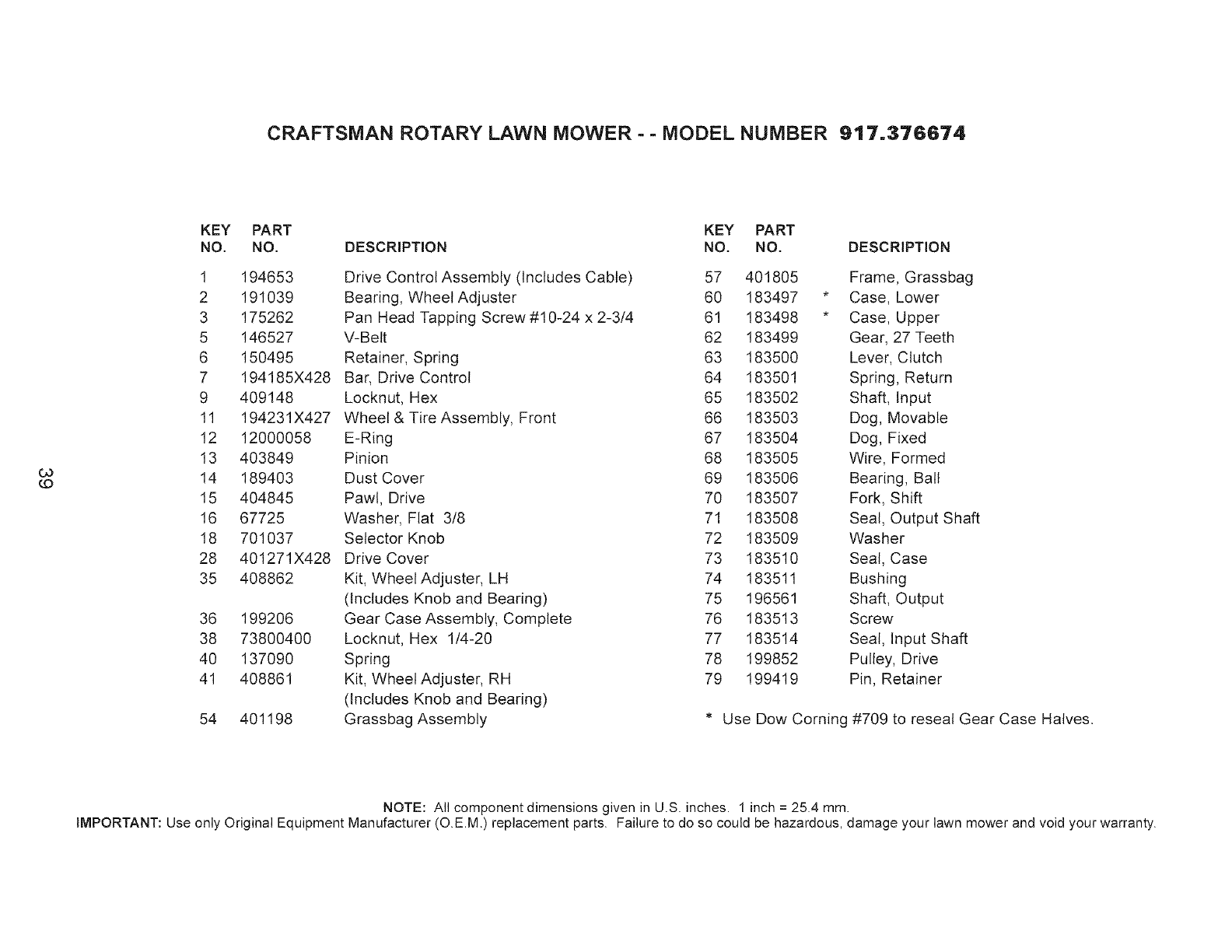

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.376674
LO
KEY
NO.
!
2
3
5
6
7
9
11
12
13
!4
15
16
18
28
35
36
38
40
41
54 401198
PART KEY PART
NO. DESCRIPTION NO. NO. DESCRIPTION
!94653 Drive Control Assembly (Includes Cable) 57 401805 Frame, Grassbag
!91039 Bearing, Wheel Adjuster 60 !83497 * Case, Lower
175262 Pan Head Tapping Screw #10-24 x 2-3/4 61 183498 * Case, Upper
146527 V-Belt 62 183499 Gear, 27 Teeth
150495 Retainer, Spring 63 183500 Lever, Clutch
!94185X428 Bar, Drive Control 64 183501 Spring, Return
409148 Locknut, Hex 65 183502 Shaft, Input
194231X427 Wheel & Tire Assembly, Front 66 !83503 Dog, Movable
12000058 E-Ring 67 183504 Dog, Fixed
403849 Pinion 68 183505 Wire, Formed
!89403 Dust Cover 69 183506 Bearing, Ball
404845 Pawl, Drive 70 183507 Fork, Shift
67725 Washer, Flat 3/8 71 183508 Seal, Output Shaft
701037 Selector Knob 72 183509 Washer
401271X428 Drive Cover 73 183510 Sea!, Case
408862 Kit, Wheel Adjuster, LH 74 !83511 Bushing
(Includes Knob and Bearing) 75 196561 Shaft, Output
199206 Gear Case Assembly, Complete 76 183513 Screw
73800400 Locknut, Hex 1/4-20 77 183514 Sea!, Input Shaft
137090 Spring 78 199852 Pulley, Drive
408861 Kit, Wheel Adjuster, RH 79 !99419 Pin, Retainer
(Includes Knob and Bearing)
Grassbag Assembly * Use Dow Coming #709 to reseal Gear Case Halves.
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORTANT: Use only Original Equipment Manufacturer (O.EM.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
