How to deploy the Dell M8024 family of switches in a Cisco Nexus network
6. In the Port Configuration screen, change the Group ID of the
external ports (we changed ports 23 and 24 to Group 2), and click
Apply Changes (see Figure 24).

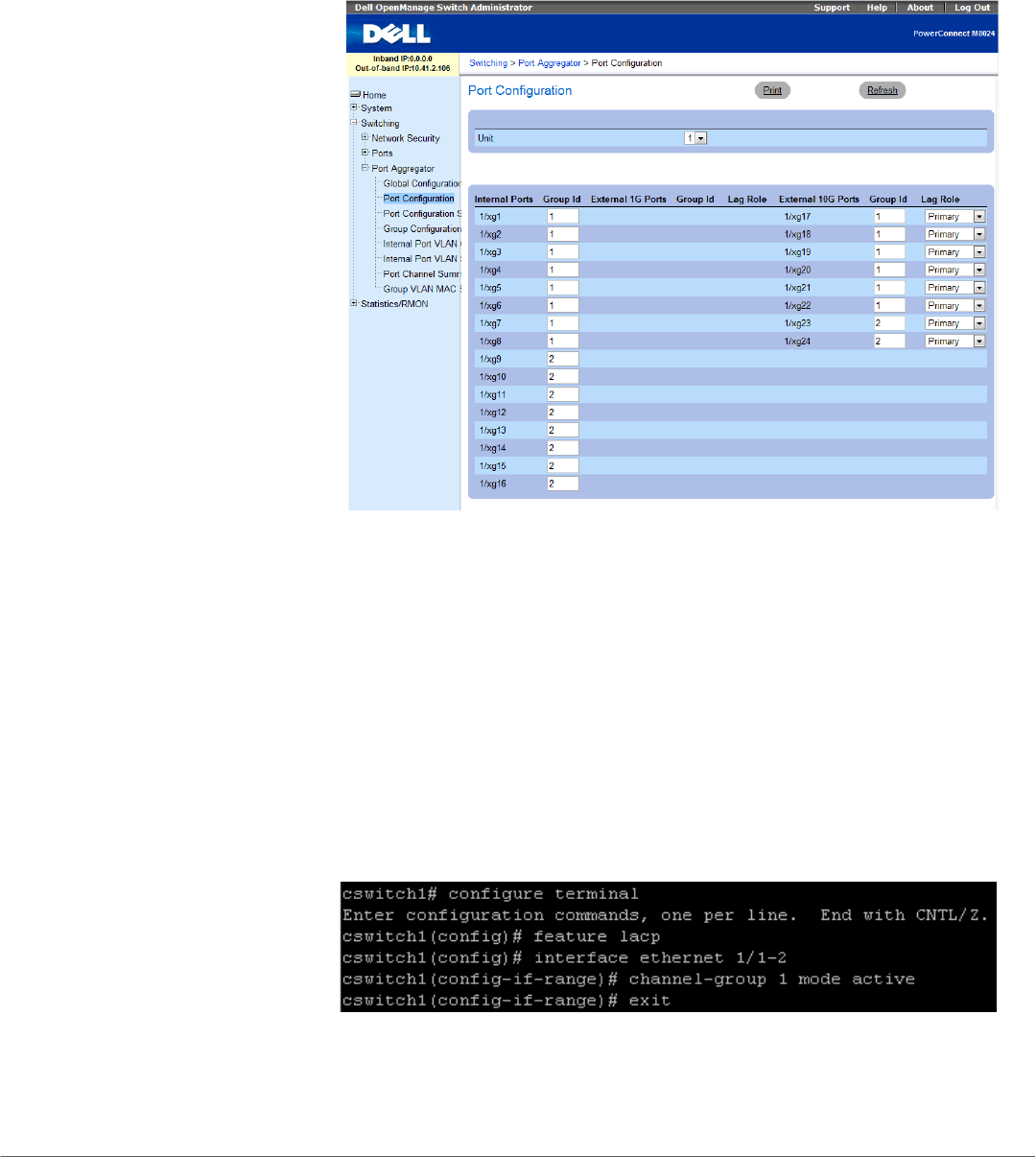

Figure 24: Assigning Group 2 to external ports on the Dell PowerConnect M8024
switch.
On the Cisco Nexus 5010 switch
1. Log into the switch.
2. Type the following commands into the switch to configure the
first port channel (see Figure 25):
configure terminal
feature lacp
interface ethernet 1/1-2
channel-group 1 mode active
exit
Figure 25: Configuring the first port channel on the Cisco Nexus 5010 switch.
3. Type the following commands into the switch to configure the
second port channel (see Figure 26):
