3.2.5.10 Upper Frame Removal
1. Remove the printer mechanism (see Section 3.2.4).
2. Remove the carriage unit (see Section 3.2.5.2).
3. Remove the E-ring securing the knob shaft to the sub frame; then remove the knob with the
knob shaft from the right side frame.
4.
Remove the 5 CBN (M3×5) screws securing the upper frame to both side frames or the sub
frame. Then remove the upper frame with 4 PF support rollers.
5. Remove the upper frame with 4 PF support rollers.
ASSEMBLY POINT
Assemble each straight end of torsion spring 6700s to attach to the center of the driven
roller support.
CBS (M3x5)
CBS (M3x5)
Knob
Tension Spring
E-ring
Upper Frame

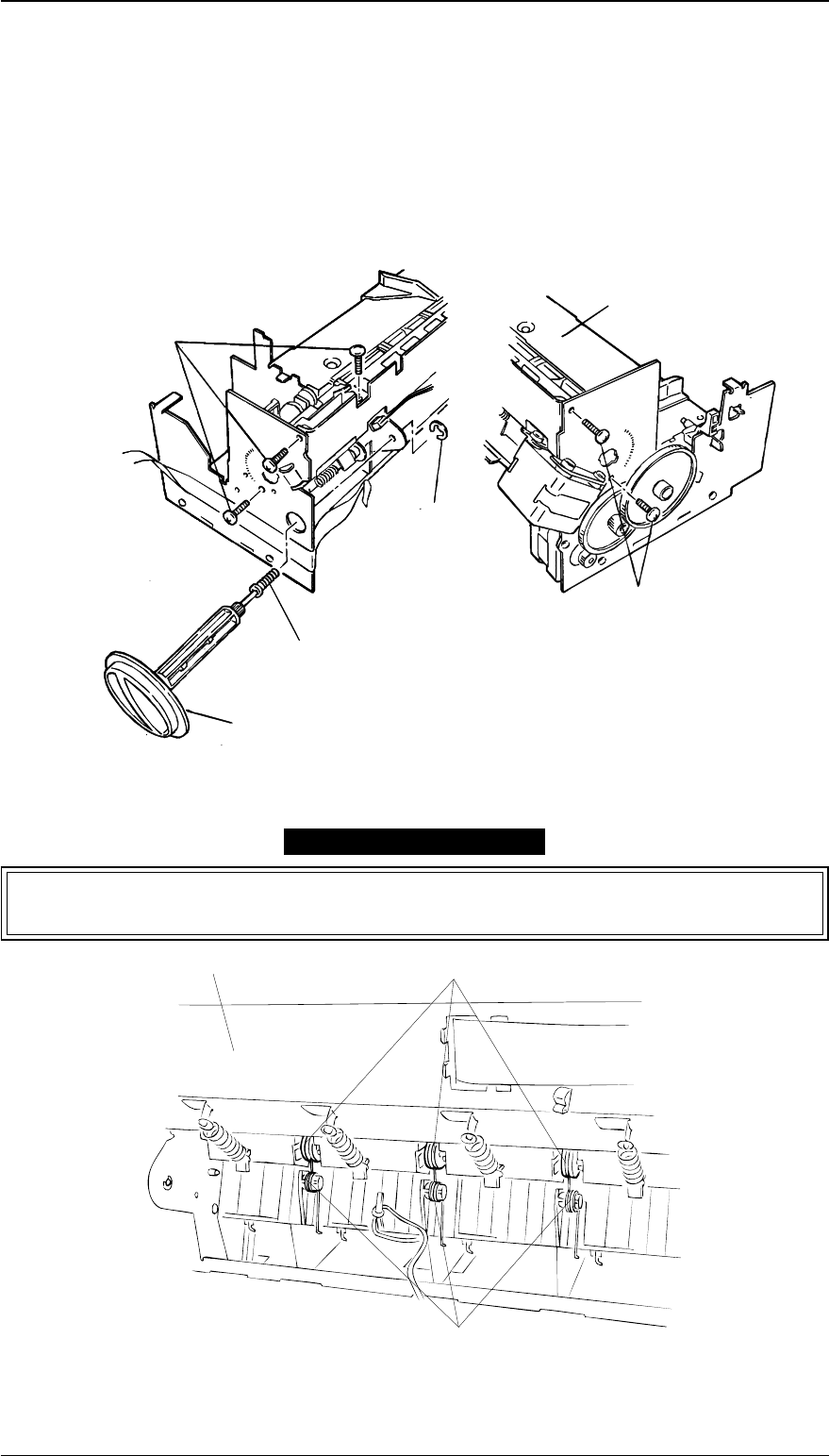

Figure 3-21. Upper Frame Removal
Base Frame
PF Support Roller
Tension Spring
Figure 3-22. Attaching the Torsion Spring
Disassembly and Assembly Stylus Pro XL
3-18 REV.-A
