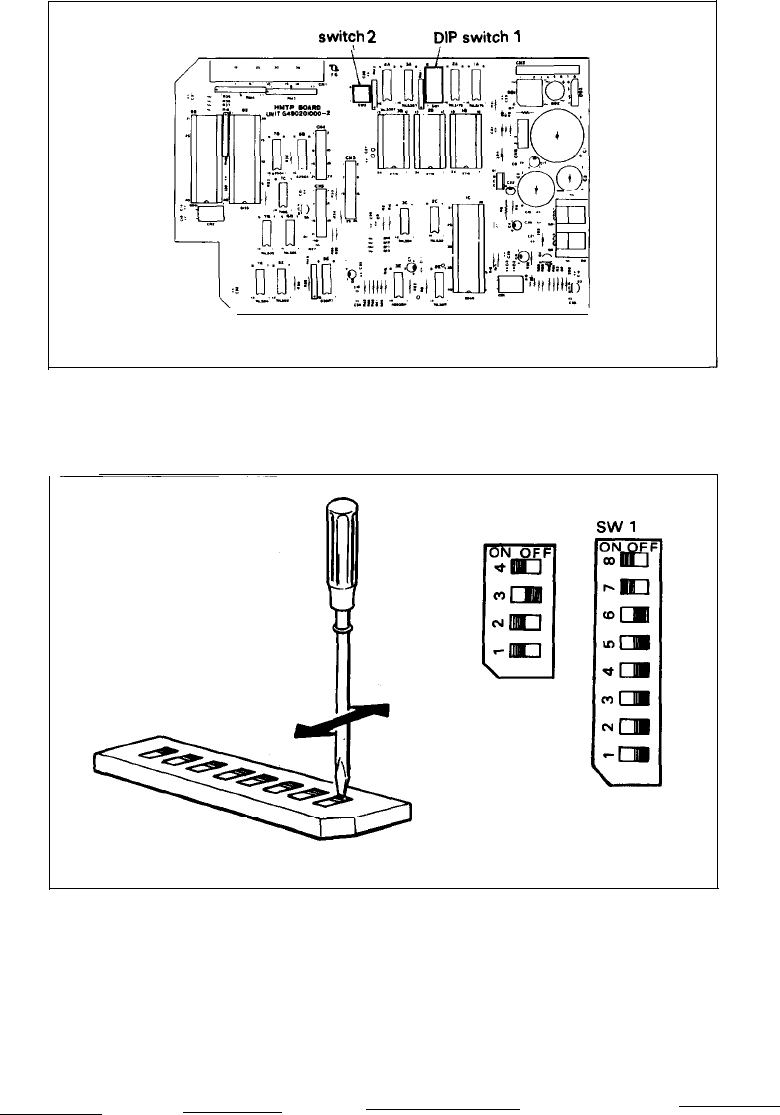

Fig. 54 Location of DIP Switches
Position the printer as shown in Fig. 53.
There are two “DIP’ (DUAL IN-LINE PACKAGE) switches in the HMTP board. (See
Fig. 54) The switches set to the left are ON... to the right are OFF. (See Fig. 55)
-I
SW
1
Fig. 55 Setting DIP Switches
Each switch No. of the DIP switch functions as described below. So set these swit-
ches to suit your application or the computer’s specifications.
NOTE: Be sure that the POWER switch of the printer is turned off before changing
switch positions.
