FF 120T
Flat Field Speaker
User’s Manual

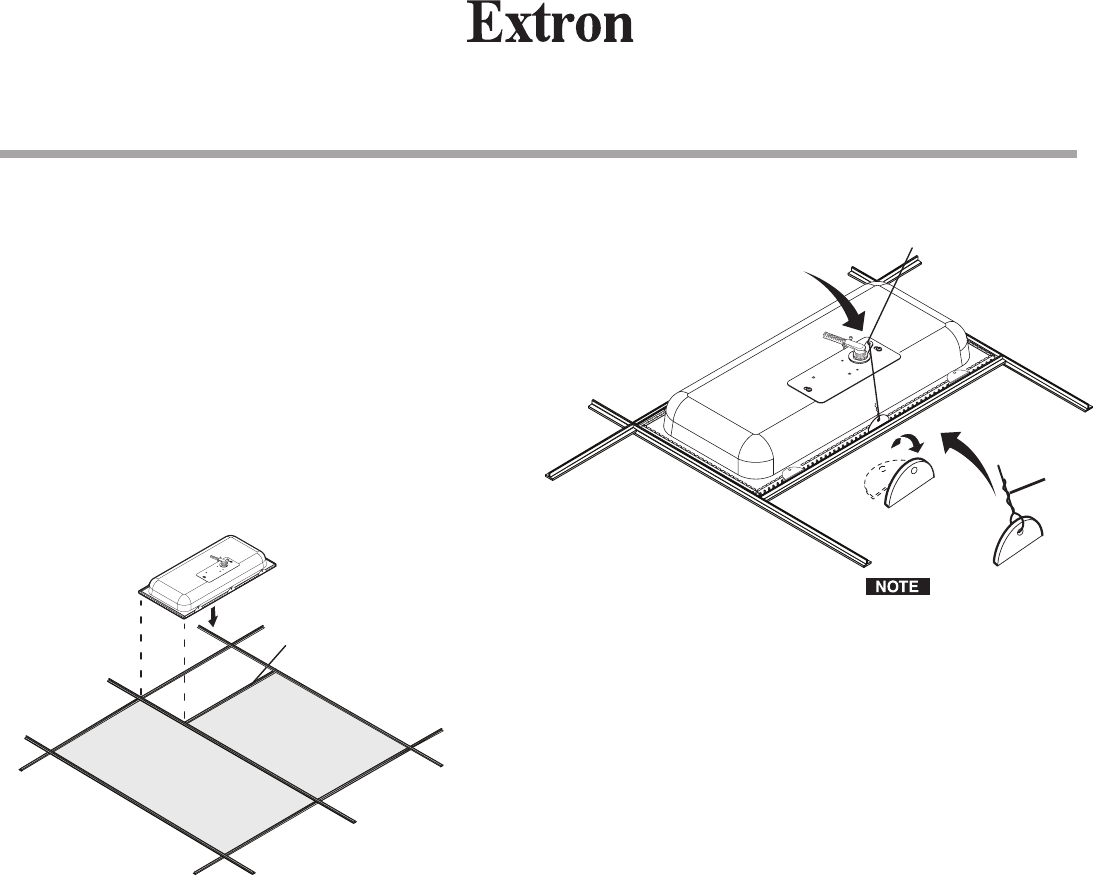

If seismic support lines are being used, connect a line
through the seismic anchor ring on the top terminal cover
plate and attach it to one of the center seismic bendout tabs
(the center tab is preferred) located on either side the speaker
as shown below. Use a small screwdriver or similar tool to
bend out the tab. See the following illustration.
N Observe all applicable building codes and
local ordinances when installing the speaker.
Anchor this end to a
suitable secure point.
Route the cable through
the seismic anchor ring
and bendout tab.
Seismic
Safety
Cable
Bend Up Tab
Repeated bending of the tab
may cause it to break off.
3
After checking all speaker connections, power up the
amplifier.
7 Installing the speaker in the
ceiling
8 Attaching the seismic support
lines
9 Power up
See the following illustration.
a. Replace the cover plate and tighten the two cover
screws.
b. Install the included T-rail crosspiece into the ceiling
opening up against the cut tile.
c. Set the speaker into place so that the edges are
hidden by the support rails.
T-rail (1)
