Power connector
Description Spare part number
Power connector 641137-001
Before removing the power connector cable, remove the following components:
1. Battery (see
Battery on page 43)
2. Service access cover (see
Service access cover on page 44)
3. Hard drive (see
Hard drive on page 45)
4. Optical drive (see
Optical drive on page 47)
5. Keyboard (see
Keyboard on page 52)
6. Top cover (see
Top cover on page 55)

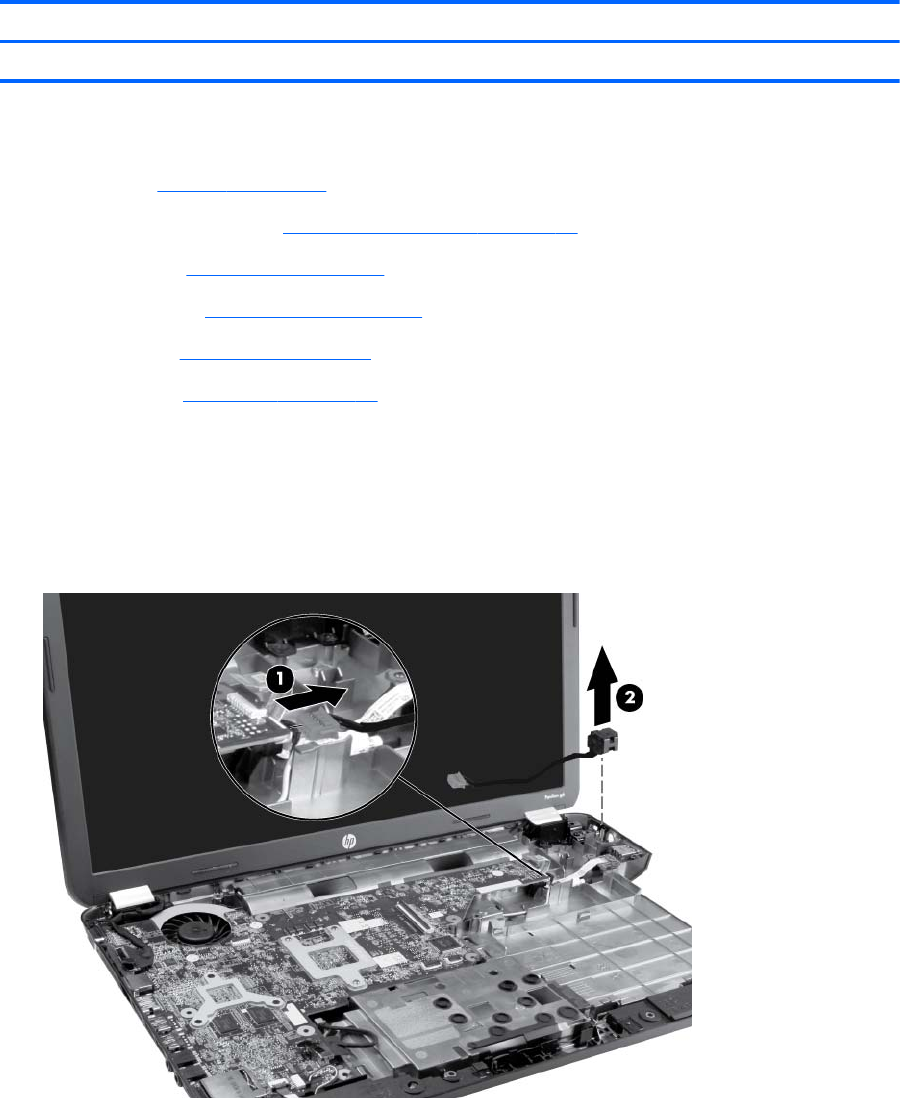

Remove the power connector:
1. Position the computer right-side up.
2. Disconnect the power connector cable (1) from the system board.
3. Lift the power connector (2) away from the clips built into the base enclosure.
Reverse this procedure to install the power connector.
Component replacement procedures 63
