— 9 —
English
Model NV83A2 NV65AC NV50A1
Operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm
2
)
Dimensions 11-13/32" × 13-11/16" × 5-13/32" 11-13/32" × 12-17/32" × 5-13/32" 9-27/32" × 10-3/8" × 4-11/16"
Length × Height × Width (290 mm × 348 mm × 135 mm) (290 mm × 318 mm × 135 mm) (250 mm × 264 mm × 119 mm)
Weight 8.2 lbs (3.7 kg) 7.5 lbs (3.4 kg) 4.2 lbs (1.9 kg)
Nail capacity 200 – 300 nails (1 coil) 250 – 300 nails (1 coil) 400 nails (1 coil)
.084 ft
3
/cycle at 100 psi .075 ft
3
/cycle at 100 psi .035 ft
3
/cycle at 100 psi
Air consumption (2.4 ltr/cycle at 6.9 bar) (2.1 ltr/cycle at 6.9 bar) (.99 ltr/cycle at 6.9 bar)
(2.4 ltr/cycle at 7 kgf/cm
2
) (2.1 ltr/cycle at 7 kgf/cm
2
) (.99 ltr/cycle at 7 kgf/cm
2
)
Air inlet 3/8 NPT Thread
Model NV83A2 NV65AC NV50A1
1 Eye protector 1 1 1
2 Allen wrench for M8 screw 1 1
3 Allen wrench for M6 screw 1 1
4 Allen wrench for M5 screw 1 1 1
5 Allen wrench for M4 screw 1
1
2
4
3
5
NV83A2 NV65AC NV50A1
Min. Max. Min. Max. Min. Max.
.236” .283” .245” .266” .189” .189”
(6 mm) (7.2 mm) (6.2 mm) (6.8 mm) (4.8 mm) (4.8 mm)
.083”
.
090”
(2.1 mm)
(2.3 mm)
.083”
.111”
(2.1 mm)
.099” .131” (2.8 mm)
(2.5 mm) (3.3 mm)
2” (50 mm)
3-1/4” (83 mm)
1-3/4” (45 mm)
2-1/2” (65 mm)
1-1/4” (32 mm)
2” (50 mm)
Wire-collated coil nails

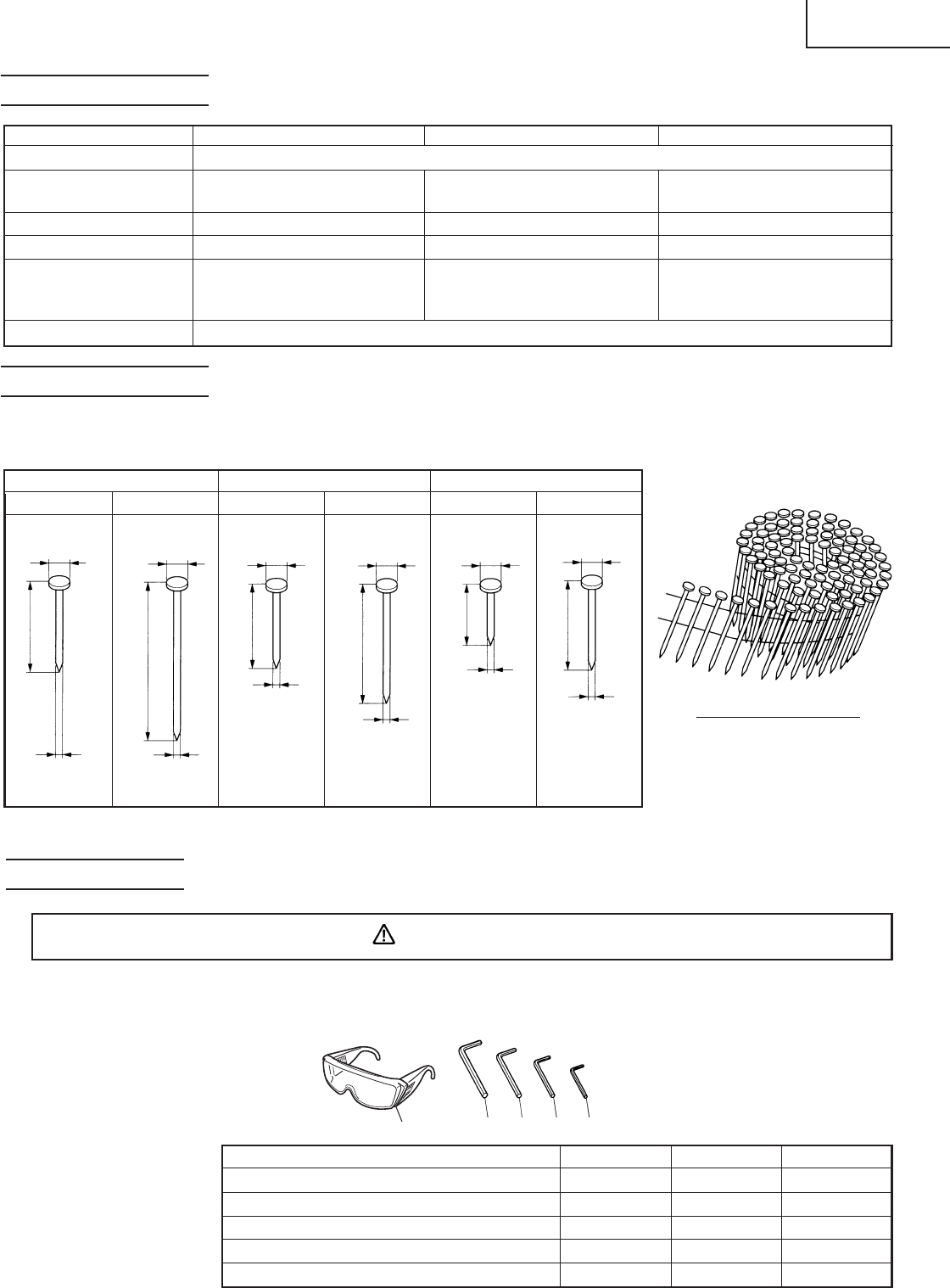

SPECIFICATIONS
NAIL SELECTION
Only nails shown in the Table below can be driven with this Nailer.
NOTE: Use only genuine Hitachi nails to assure nail quality and driving ease.
ACCESSORIES
WARNING
ⅷ Accessories other than those shown below can lead to malfunction and resulting injuries.
STANDARD ACCESSORIES
Dimensions of nails
Nails are collated and coiled, as shown in the above figue.
