Installation Guide

69-2486—03

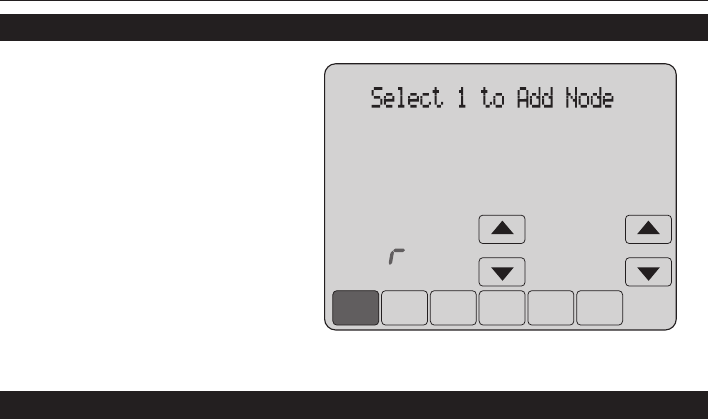

Z-Wave enrollment

4. To share the

thermostat Node

information with

additionalZ-Wave

devices select 1.

DONE

F20

M32421

Z-Wave messages

Add/ Remove

ThethermostatcanbeincludedorexcludedfromtheZ-Wavenetwork.Thisactionrequiresthe

controllersetininclusionmode.ThedeviceisincludedtotheZ-Wavenetworkaftersendingthe

node information to the controller. The controller is responsible for assigning the home ID and

device ID to the included device.

Association

The thermostat can be associated with other devices in the system. Being associated means

that the thermostat is able to send messages directly to any other device. During the associa-

tion process the return route is acquired from the primary controller. The thermostat then uses

this return route to access the distant node.

Enter/leave power saving mode

WhenrequestedfromtheZ-Wavecontroller,thethermostatadjustsitssetpointinorderto

decreasethepowerconsumptionoftheHVACequipment.

In addition, using an Internet gateway enables the person to control the thermostat remotely

through the Internet.

Fan Switch

The thermostat can send the message containing the actual fan switch position.

Fan Switch change

The other devices are able to change the fan switch of the thermostat. After the message is

received, the fan switch is changed to the desired value (if this value is possible).

For the thermostat the possible values are On, Auto and Circ.

Indoor temperature

The thermostat sends the indoor temperature using the Multilevel Sensor command class.

Report upon GET request

Uponrequest(GETcommand)thethermostatsendsthecorrespondingreport.

Setpoint Value

The thermostat can send the message containing the actual setpoint value based on setpoint

change.
