Commander GP User Guide
Issue code: gpxu2
Getting Started 2-5
Status relay
Drive healthy
SPEED
TORQUE
0V common
Signal
connector
AT SPEED
RESET
External trip
0V common
0V common
Encoder
Power
Optional
RFI filter
Stop Start /
Reset
Thermal
protection
device
Optional braking resistor
Refer to the Installation Guide for
cable sizes and fuse ratings
Refer to the Installation Guide for sizing
of the optional braking resistor

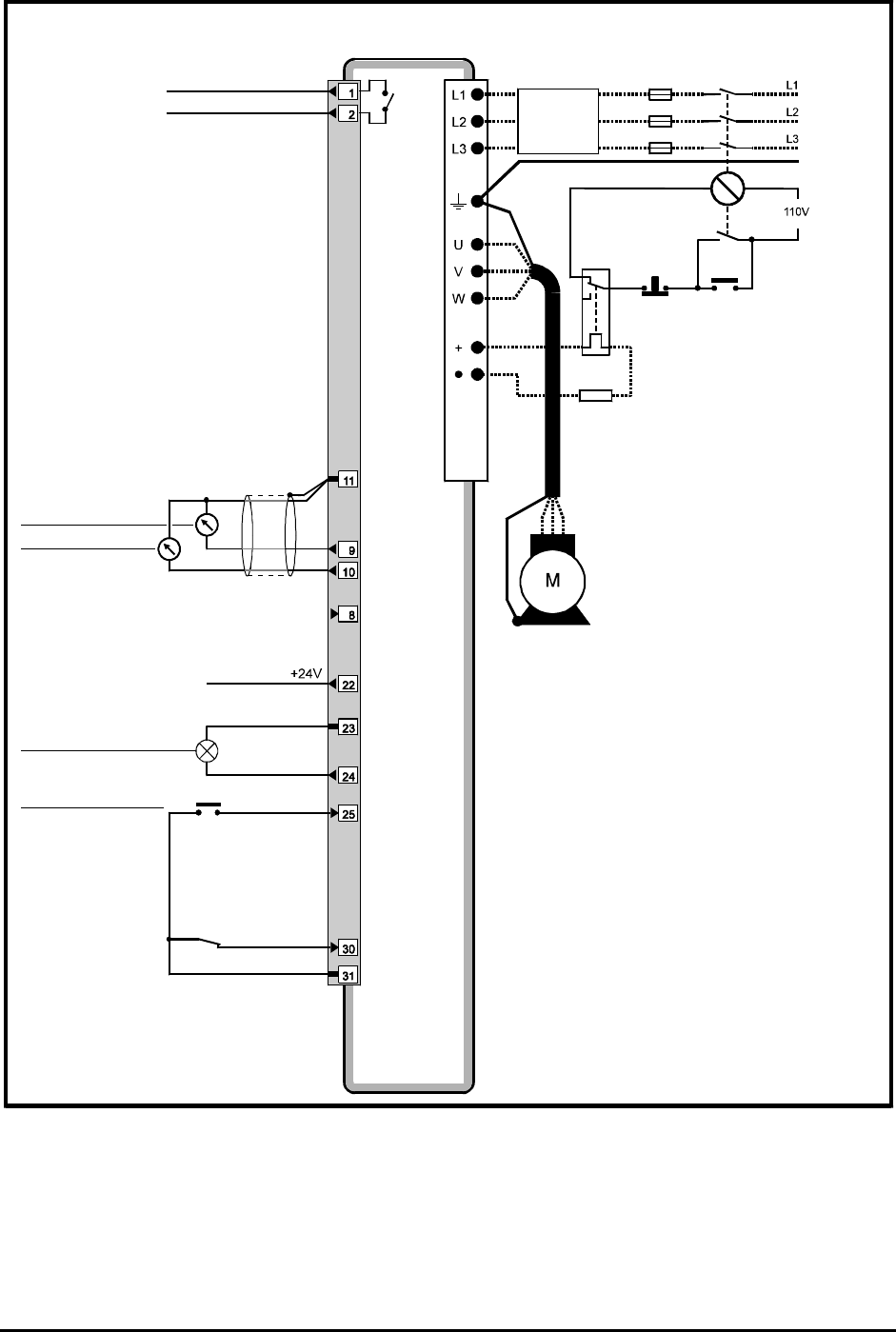

Figure 2–6 Power connections, and signal connections for Keypad mode (Macro 1 only)
