Installing the joystick

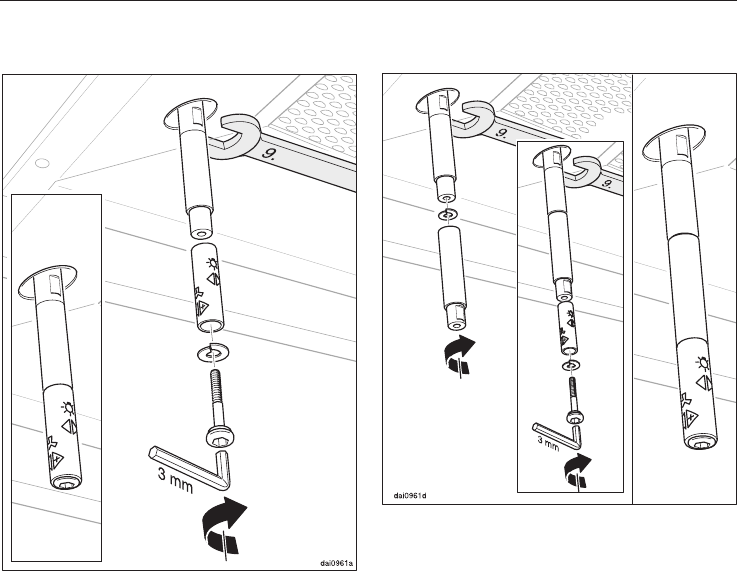

^ Insert the lower half of the joystick
into the socket and loosely secure in
place with the screw and spring
washer.
^
Turn the printed part of the joystick so
that the m-symbol faces front.
^
Tighten the screw with an allen
wrench. At the same time counter the
joystick with a wrench.
Joystick extension
The joystick can be extended for an
easier reach.
^ Attach the lower part of the joystick to
the extension with a spring washer.
Turn the m-symbol to the front and
screw in place with an allen wrench
while using a wrench to counter the
joystick base.
^
Place a spring washer between the
joystick base and the extension.
Tighten the extension by hand while
countering the joystick base with a
wrench.
