Model
Coolmate 1
Coolmate 1 CE
Coolmate 3
Coolmate 3 CE
Coolmate V3
Coolmate V3 CE
Coolmate 3.5
Coolmate 4
Coolmate 4 CE
Coolmate 3X
Maximum
Current Draw
50 Hz 60 Hz
— 2.1 A
0.65 A 0.55 A
5.9 A 4.7 A
2.5 A 3.0 A
5.9 A 4.7 A
5.9 A 4.7 A
5.9 A 4.7 A
5.9 A 4.7 A
Rated
Cooling
Capacity**
1,210 W
(4,120 BTU/hr)
1.1 qt/min (1 L/min)
1,420 W
(4,840 BTU/hr)
1.1 qt/min (1 L/min)
1,420 W
(4,840 BTU/hr)
1.1 qt/min (1 L/min)
1,660 W
(5,660 BTU/hr)
1.1 qt/min (1 L/min)
1,780 W
(6,070 BTU/hr)
1.1 qt/min (1 L/min)
1,660 W
(5,660 BTU/hr)
1.1 qt/min (1 L/min)
Maximum
Cooling
Capacity*
2,850 W
(9,700 BTU/hr)
1.8 qt/min (1.7 L/min)
3,820 W
(13,000 BTU/hr)
4.2 qt/min (4.0 L/min)
3,820 W
(13,000 BTU/hr)
4.2 qt/min (4.0 L/min)
4,140 W
(14,000 BTU/hr)
5.0 qt/min (4.7 L/min)
5,500 W
(18,000 BTU/hr)
5.9 qt/min (5.6 L/min)
4.140 W
(14,000 BTU/hr)
5.0 qt/min (4.7 L/min)
Motor Input
Voltage 50/60 Hz
115 VAC, 60 Hz
230 VAC, 50/60 Hz
115 VAC
230 VAC
115 VAC
115 VAC
115 VAC
115 VAC
Tank
Capacity
1 gal
(3.8 L)
3 gal
(11.4 L)
3 gal
(11.4 L)
3.5 gal
(13.2 L)
4 gal
(15 L)
3 gal
(11.4 L)
Net
Shipping
Weight
29 lb
(13 kg)
43 lb
(20 kg)
54 lb
(24 kg)
70 lb
(32 kg)
40 lb
(18 kg)
158 lb
(72 kg)

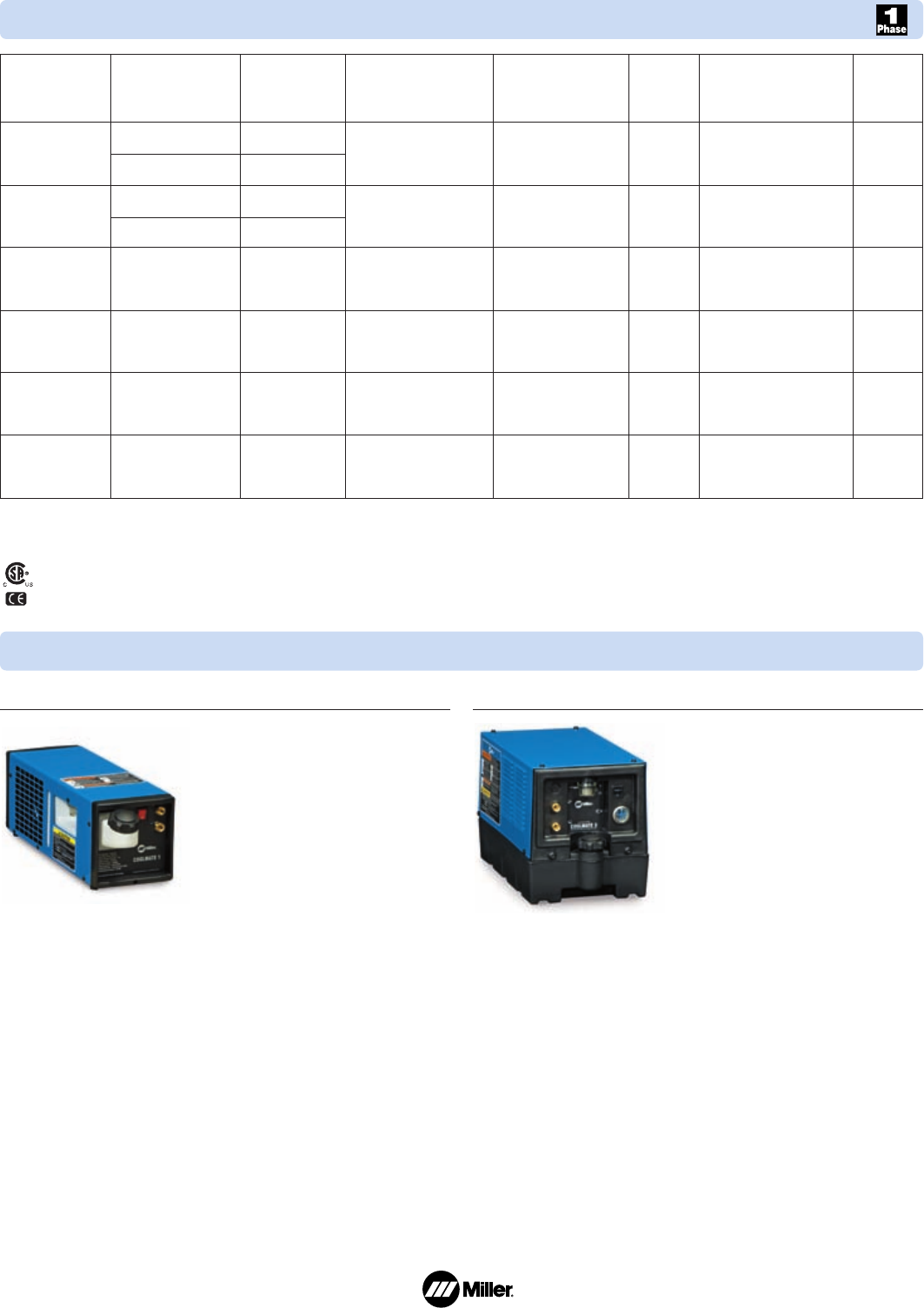

Specifications (Subject to change without notice.)
Dimensions
H: 8 in (203 mm)
W: 7-1/2 in (191 mm)
D: 23-3/4 in (603 mm)
H: 13-1/4 in (337 mm)
W: 12-1/4 in (311 mm)
D: 23-1/4 in (584 mm)
H: 33 in (838 mm)
W: 9-1/4 in (235 mm)
D: 9-1/4 in (235 mm)
H: 11-3/4 in (298 mm)
W: 15-3/4 in (400 mm)
D: 26 in (660 mm)
H: 16-1/4 in (413 mm)
W: 15-1/4 in (387 mm)
D: 18-3/4 in (476 mm)
H: 17 in (432 mm)
W: 27 in (686 mm)***
D: 39 in (991 mm)
All CE models conform to the applicable parts of the IEC 60974 series of standards.
All models are certified by Canadian Standards Association to both the Canadian and U.S. Standards.
2
*Maximum cooling capacity is based on a 25°C (77°F) environment at maximum flow with a 65°C (149°F) coolant temperature rise.
**Rated IEC standard cooling capacity is based on a 25°C (77°F) environment at a flow of 1 L/min with a 40°C (104°F) coolant temperature rise.
***Width measurement includes rear wheels and axle. Cooler width without rear wheels and axle is 22-1/4 in (565 mm).
Coolmate
™
1
#300 360 115 VAC, 60 Hz
#300 360-00-1 115 VAC, 60 Hz CE
#300 459 230 VAC, 50/60 Hz
#300 459-00-1 230 VAC, 50/60 Hz CE
Light industrial, 1-gallon cooler designed for water-cooled
torches on power sources rated up to 200 A*.
• Designed to integrate with smaller Dynasty and Maxstar models
and Syncrowave 200
• Compact horizontal design allows stacking and convenient mounting
• Lightweight at 25 lb (11 kg) dry
• Equipped with lighted on/off power switch on front panel
• Filter and coolant filling spout are conveniently located for
easy access
• Fluid level sight window
• Polyethylene-molded coolant tank and filler spout are rustproof
• Thermally protected piston pump guards against overheating
• Stainless steel oscillating piston pump provides consistent
coolant flow and pressure rating with long pump-life expectancy
Coolmate
™
3
#043 007 115 VAC, 50/60 Hz
#043 007-01-2 115 VAC, 50/60 Hz CE
#043 008 230 VAC, 50/60 Hz
#043 008-01-2 230 VAC, 50/60 Hz CE
Economical, 3-gallon cooler designed for water-cooled torches
rated up to 500 A*.
• Compact horizontal design allows stacking and convenient mounting
• Midsize cooler weighs 40 lb (18 kg) dry
• On/off power switch, “paddle wheel” coolant flow indicator, filter
and coolant filling spout are all conveniently located on front panel
• Polyethylene-molded coolant tank, fan shroud and filler spout
are rustproof
• Factory-set pressure relief valve (55 PSI) maintains consistent
pressure during operation
• Thermally protected 1/4 HP motor guards against overheating
• Efficient fin and tube heat exchanger
• Brass-body, positive displacement rotary vane pump
provides consistent coolant flow and pressure rating with
long pump-life expectancy
Product Descriptions
*May vary with torch design and cable length.
