EXTERNAL INPUT TERMINALS
CONNECTING DEVICES TO THE AV INPUT TERMINALS
Connect the output of the device to the input terminals of plasma display as shown in the following illus-
trations.
NOTE
You will select TV channels with the VCRs, or Cable/Satellite set top box that will be viewed on the plasma dis-
play.
Cables shown here are not included with the plasma display.

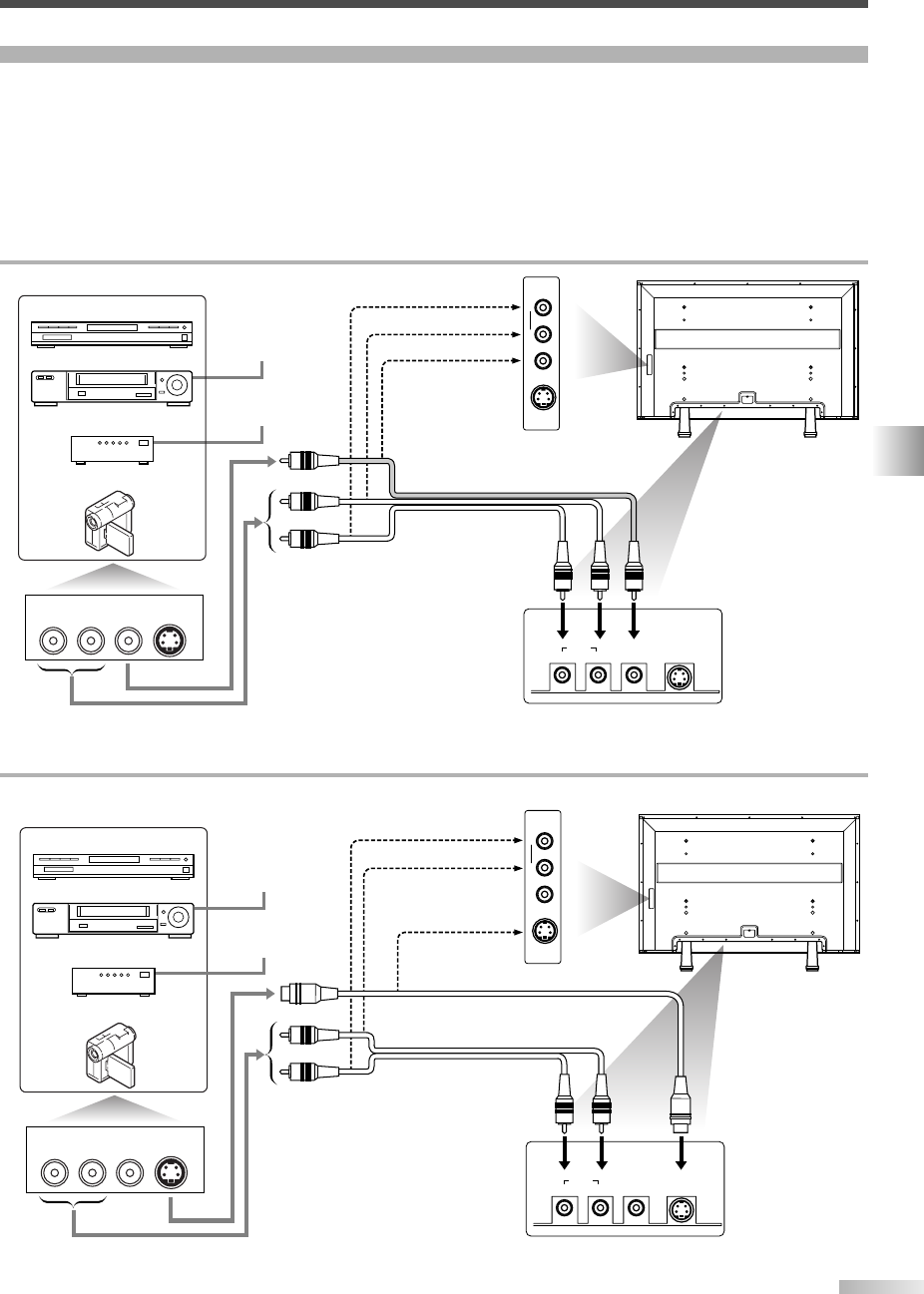

VIDEO Signal Connection (Basic Signal Transfer)
AUDIO
S-VIDEO
2×RCA
audio cables
Audio
OUT
Video
OUT
S Video
OUT
RL
(DVD Player)
Example of input signal source
(VCR)
(Cable/Sat STB)
(Camcorder)
AUDI O
VIDEO2
S-VIDEO2
R
L
Antenna or
cable signal
Antenna, cable,
satellite signal
VIDEO1AUDIO S-VIDEO1
LR
Video input to
S-VIDEO socket
Audio input to
L/R sockets
Video input to
S-VIDEO socket
Audio input to
L/R sockets
AUDIO-VIDEO
3×RCA audio
video cables
Video input to
RCA socket
Video input to
RCA socket
Audio input to
L/R sockets
Audio input to
L/R sockets
Audio
OUT
Video
OUT
S Video
OUT
RL
(DVD Player)
Antenna or
cable signal
Antenna, cable,
satellite signal
Example of input signal source
(VCR)
(Cable/Sat STB)
(Camcorder)
AUDI O
VIDEO2
S-VIDEO2
R
L
VIDEO1AUDIO S-VIDEO1
LR
S-VIDEO Signal Connection (Better Signal Transfer)
