Installation
B Connecting to your PC

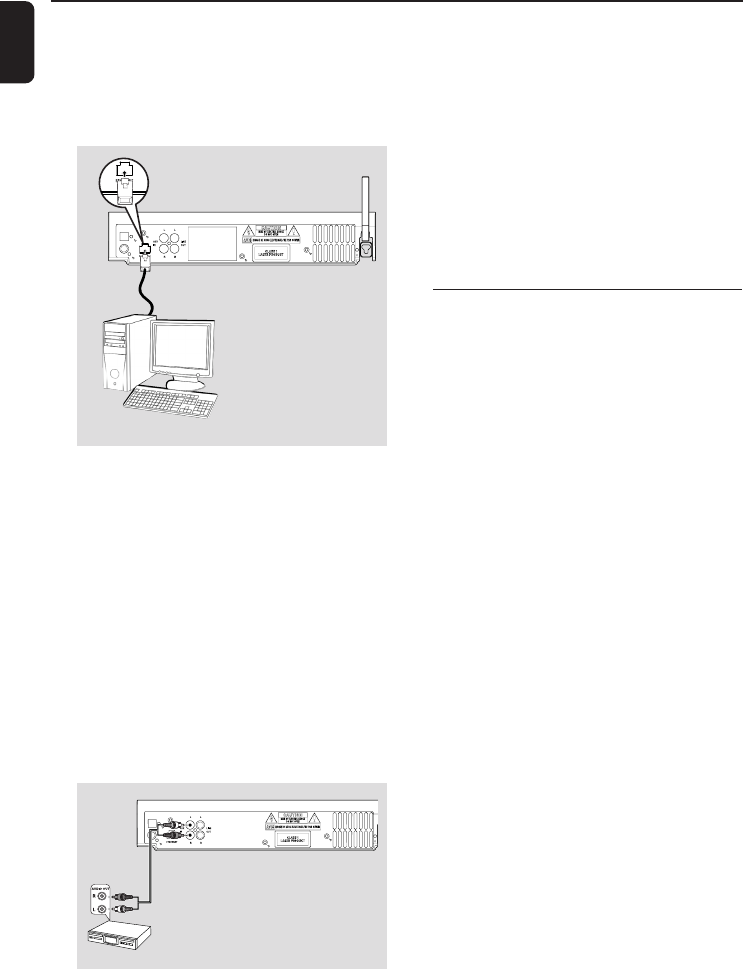

● Connect the supplied Ethernet cable to
Center’s ETHERNET and your computer’s
Ethernet port. For details, see the manual
Connect to your PC
OPTICAL OUT
DIGITAL OUT
C Connecting an additional appliance
It is possible to use an additional appliance, e.g.
TV, VCR, Laser Disc player or DVD player with
the WAC5 Center. On WAC5 Center, you can
playback or record music from an external
source.
1 Insert the red plug of the red/white audio cables
(not supplied) to the red socket AUX IN R
and the white plug to the white socket AUX
IN L
2 Connect the other end of the audio cables to
the AUDIO OUT terminals of the additional
appliance
OPTICAL OUT
DIGITAL OUT
3 Select AUX mode in Center.
Helpful hints:
– For more information about recording/playback
from the external source, see HD: Recording
from external source and AUX.
– For better sound output, use the LINE OUT
terminals on the external device.
– If the connected device has only a single audio
out terminal, connect it to the AUX IN left terminal.
Alternatively, you can use a “single to double” cinch
cable, but the output sound still remain mono.
– Always refer to the owner’s manual of other
equipment for complete connection.
Using AC power
1 Make sure all the connections have been made
before switching on the power supply
2 Connect the AC power cord to the wall socket.
This switches on the power supply
When Center is switched to standby, it is still
consuming some power. To disconnect the
system from the power supply completely,
remove the power plug from the wall
socket.
The type plate is located on the rear of the
set.
