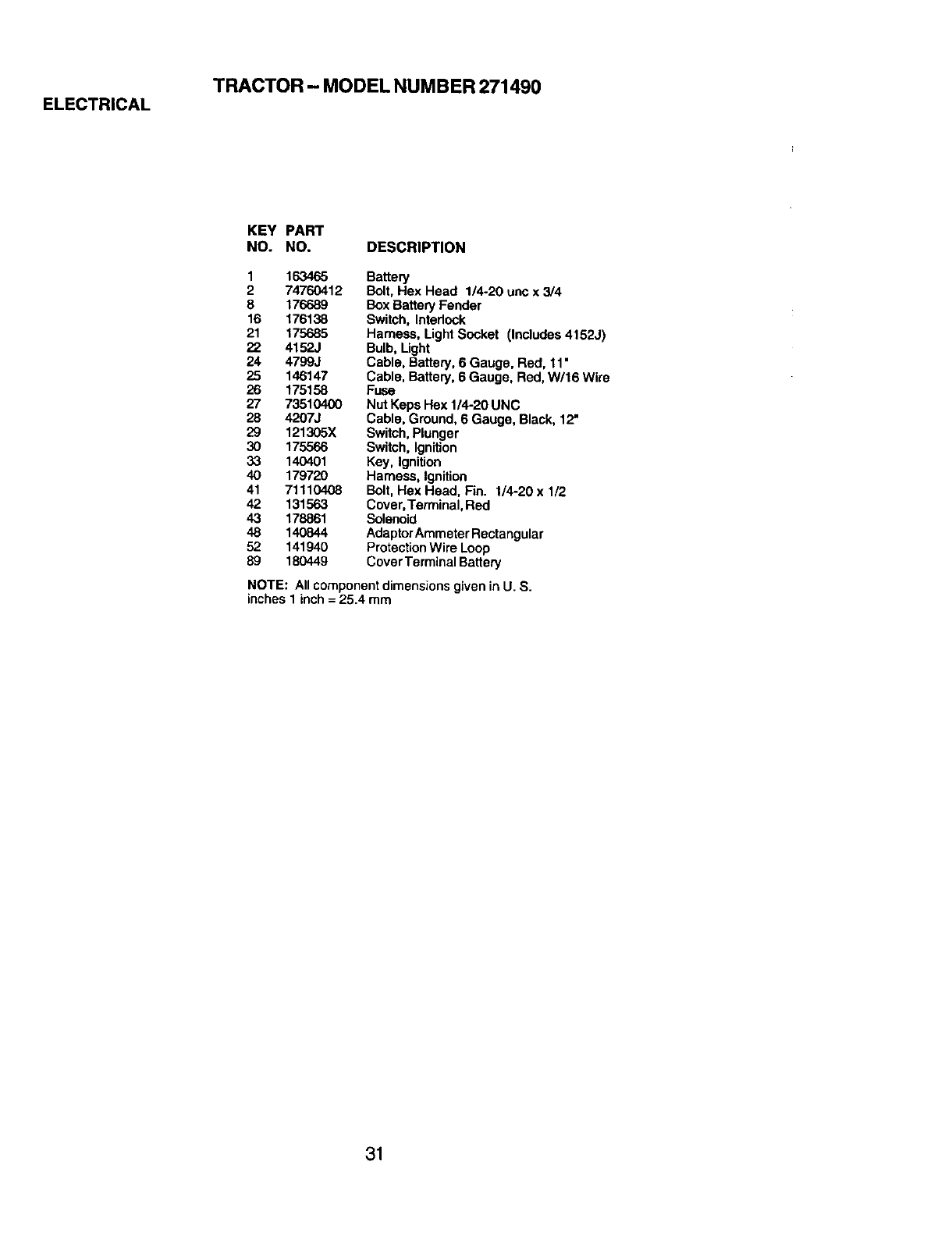

TRACTOR - MODEL NUMBER 271490
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt,Hex Head 1/4-20 unc x 3/4
8 176689 BoX BatteryFender
16 176138 Switch, Interlock
21 175685 Harness, Light Socket (Includes 4152J)
22 4152J Bulb,Light
24 4799J Cable, Battery,6 Gauge, Red, 11"
25 146147 Cable, Battery,6 Gauge, Red, Wit 6 Wire
26 175158 Fuse
27 73510400 Nut KepsHex 1/4-20 UNC
28 4207J Cable, Ground, 6 Gauge, Black,12"
29 121305X Switch,Plunger
30 175566 Switch, Ignition
33 140401 Key, Ignition
40 179720 Harness, Ignition
41 71110408 Bolt,Hex Head, Fin. 1/4-20 x 1/2
42 131563 Cover,Terminal,Red
43 178861 Solenoid
48 140844 AdaptorAmmeter Rectangular
52 141940 ProtectionWire Loop
89 180449 Cover Terminal Battery
NOTE: Allcomponent dimensionsgiven in U. S.
inches 1 inch = 25.4 rnrn
