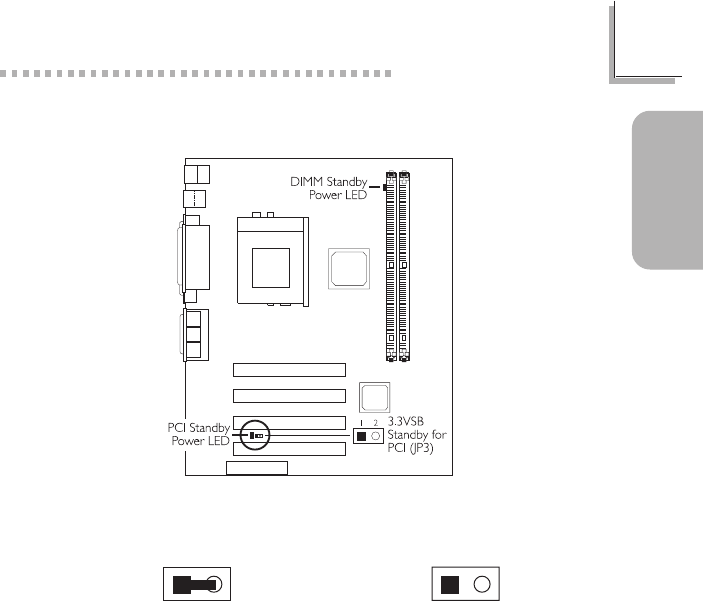

1.3.14 DIMM/PCI Standby Power LED
The DIMM Standby Power LED will turn red when the systems power is
on or when it is in the Suspend state (Power On Suspend or Suspend to
RAM). It will not light when the system is in the Soft-Off state.
The PCI Standby Power LED will turn red when the system is in the
power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM)
state.
Lighted LEDs serve as a reminder that you must power-off the system
then turn off the power supplys switch or unplug the power cord prior to
installing any DIM modules or add-in cards.
On: Default
3.3VSB Standby Power to PCI slots
(PCI 2.2 spec.)
Off:
Non-PCI 2.2 spec.
12 12
3.3VSB Standby for PCI - Jumper JP3
