Internal Switches and Internal Boards
b “Memory stick” slot
Insert an upgrade “Memory Stick” to upgrade the software
version of this unit.
To insert a “Memory Stick”
Insert the “Memory Stick” into the slot so that the labeled
side of the stick faces you.
When the “Memory Stick” is correctly set, the ACCESS
indicator lights in green. If the indicator stays dark, the
“Memory Stick” may be inserted incorrectly. Check the
stick and reinsert it. To eject the “Memory Stick,” press it
in.
Do not eject a “Memory Stick” when the ACCESS
indicator is lit in red (which means that data is being read
from or written to the “Memory Stick”). This may erase
data stored in the “Memory Stick.”

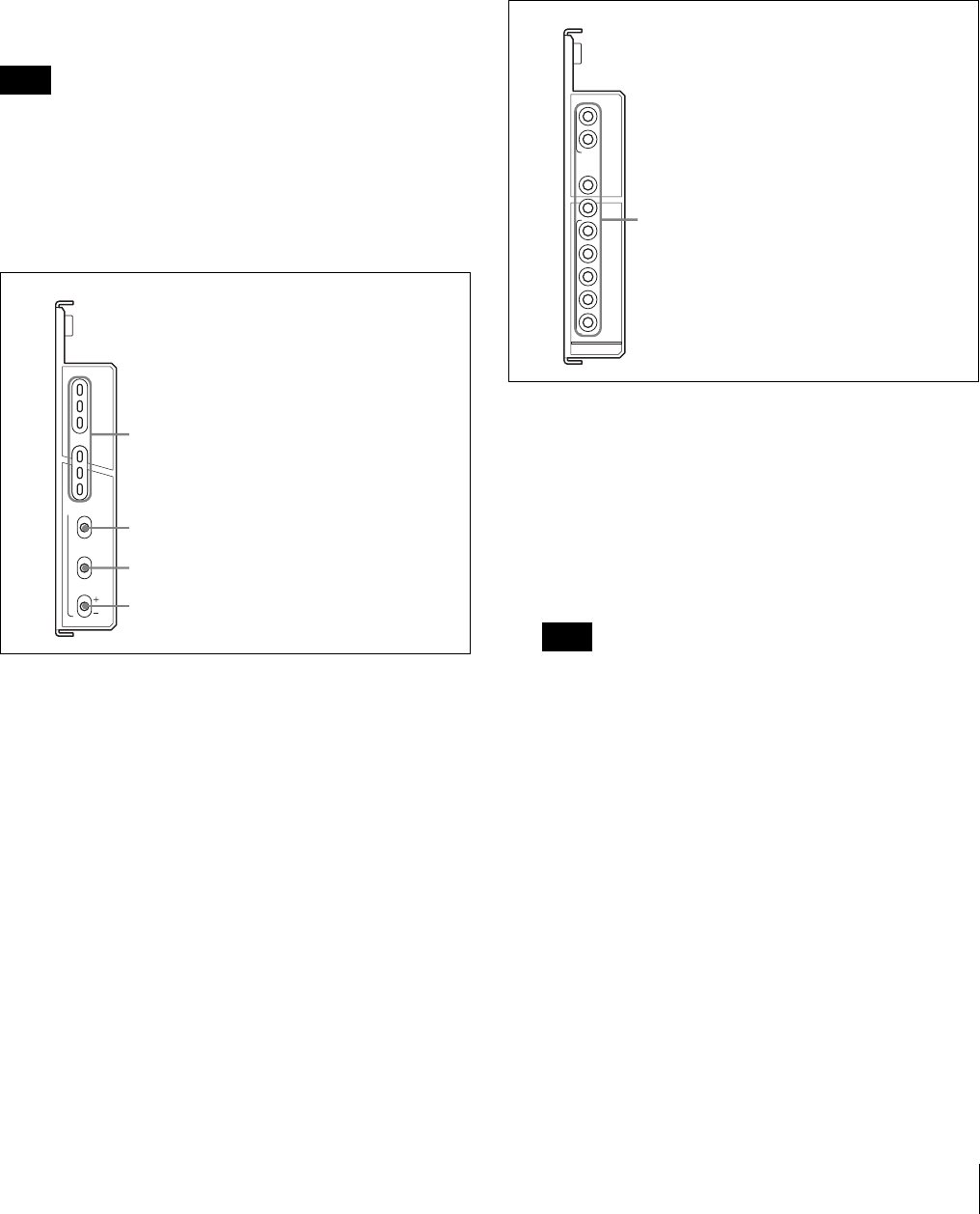

DTX Board
a Optical condition indicators
The corresponding LEDs light to show the condition of
optical signal reception at this unit (CCU) and the camera
(CAM):
Green: Good
Yellow: Low optical level
Red: Extremely low optical level, or disconnection
If communication with the connected camera is not
established, all three CAM indicators (green, yellow and
red) go dark.
b Menu control switch
Displays the setting status of this unit or the setup menu on
the monitor connected to this unit.
DISP: Displays the setting status of this unit.
OFF: Does not display the setting status or the setup
menu.
MENU: Displays the setup menu.
c CANCEL/ENTER switch
Used for operations on the setup menu. Press towards
ENTER to select an item or to enter a setting, or towards
CANCEL to cancel the setting.
d +/– switch
Used to adjust the setting items on the setup menu.
DPR-A Board
a Output signal format indicators
Displays the format status of the output signal.
1080/720P: One of these indicators corresponding to the
signal status of the two HD-SDI (SS-A/B/C) signal
output from this unit lights.
PsF: Not function
MODE: Reserved for future use
60/50/30/25/24: One of these indicators corresponding to
the field/frame frequency of the output signals lights.
The 30, 25, and 24 indicators do not function on the
HDCU3300.
Note
DTX
CHARACTER
DISP
CCU
CAM
OFF
MENU
CANCEL
ENTER
3CANCEL/ENTER switch
4+/– switch
2Menu control switch
1Optical condition indicators
Note
DPR A
1080
720P
PsF
MODE
60
50
30
25
24
1Output signal format indicators
