Remove Slash Guard/Dust Shield

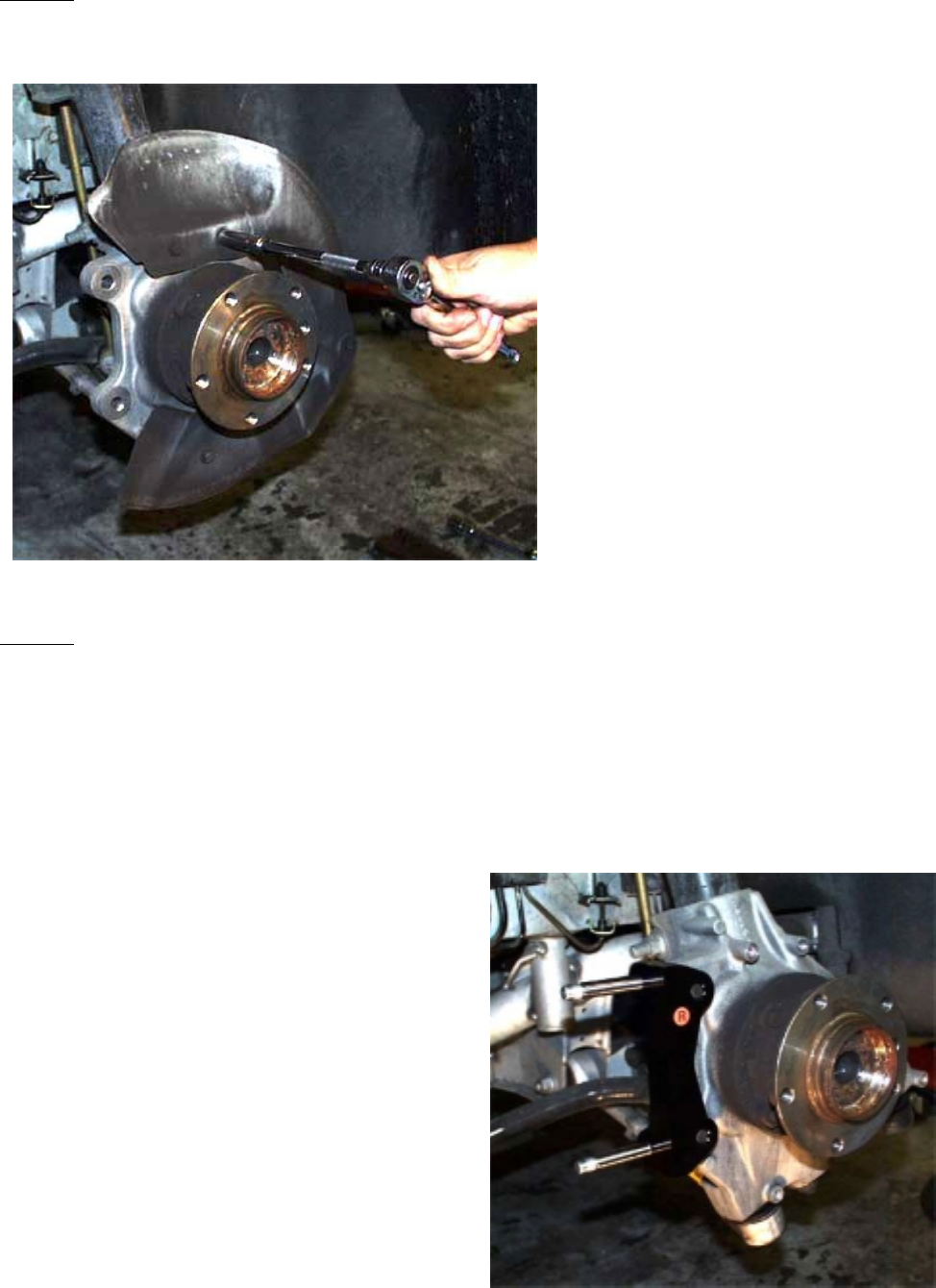

Use a 10mm wrench or socket to
remove the four bolts holding the
dust shield.
3541 Unit A, Lomita Boulevard, Torrance, CA 90505 (310) 325-4799
www.stoptech.com 9
Step 5Step 5
Step 5Step 5
Step 5
Install Caliper BracketInstall Caliper Bracket
Install Caliper BracketInstall Caliper Bracket
Install Caliper Bracket
The brackets are marked “L” & “R” for Left and Right sides of the vehicle as viewed
from the rear of the vehicle looking forward. It may be necessary to slightly clearance
the mounting lug on the knuckle. This modification in no way compromises the
strength of the part.
Bracket shown attached to knuckle using stock
caliper mounting bolts. Note studs face to the
rear and the bracket is located on the outboard
face of the mounting lugs. Test fit in this posi-
tion to determine if the lug needs to be
clearanced.
