TD-W8970
300Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide
4.5.1 WAN Settings

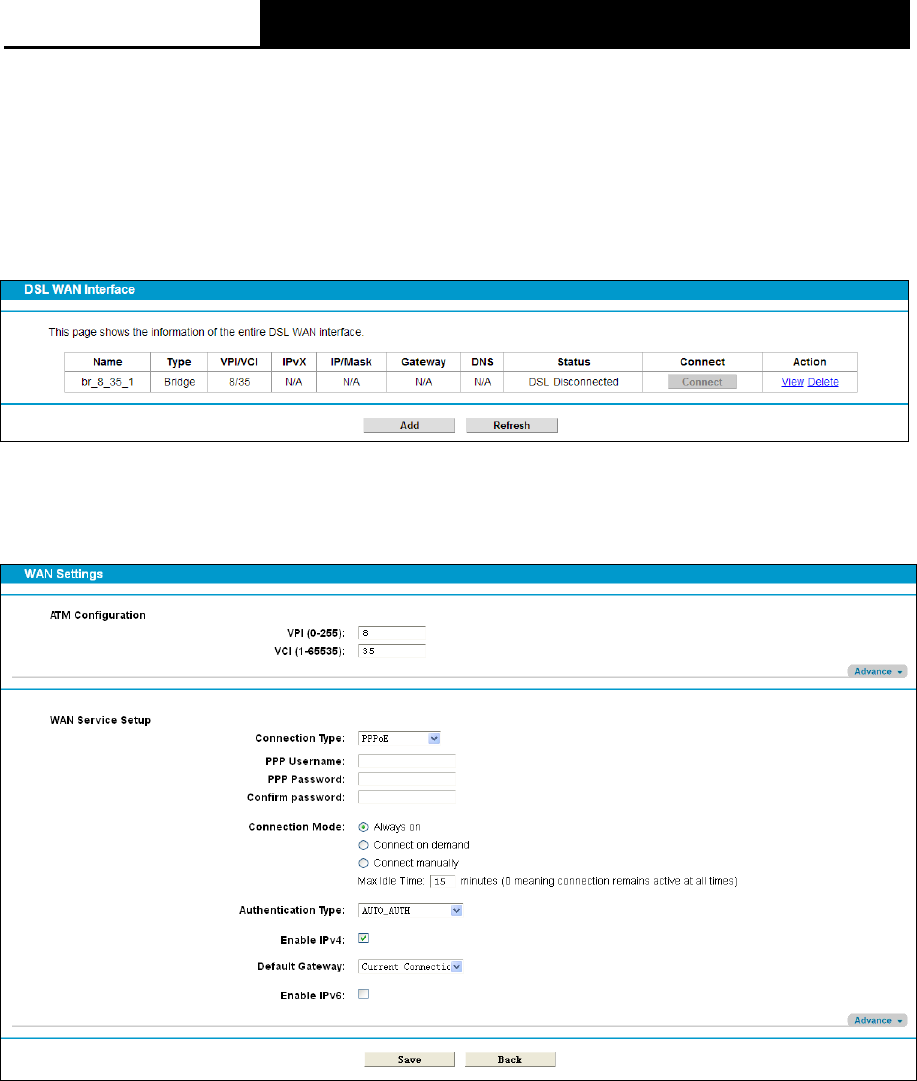

Choose “Network”“WAN Settings”, and you will see the WAN Port Information Table in the
screen similar to Figure 4-3, which describes the WAN port settings and the relevant manipulation
to each interface. There are five different configurations for the connection types, which are Static
IP, Dynamic IP, PPPoE, PPPoA, IPoA and Bridge. You can select the corresponding types
according to your needs.
Figure 4-3
Click Add to add a new entry, you can configure the parameters for ATM and WAN Service in the
next screen (shown in Figure 4-4).
Figure 4-4
4.5.1.1 Static IP
Select this option if your ISP provides static IP information to you. You should set static IP address,
IP subnet mask, and gateway address in the screen below.
18
