TL-MR3020 Portable 3G/4G Wireless N Router

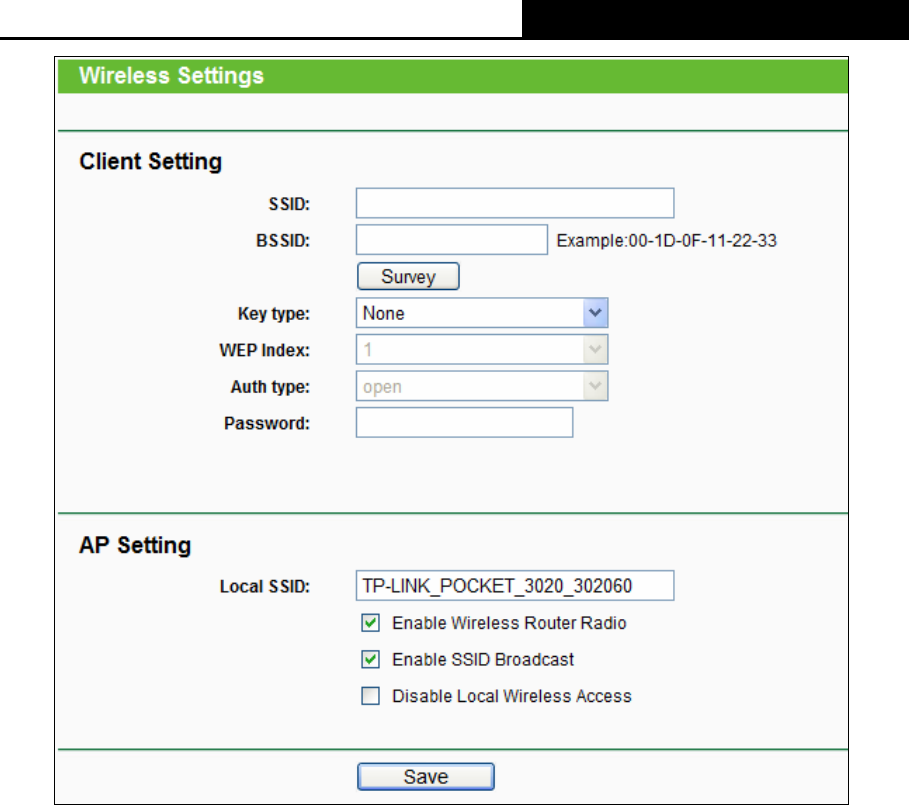

Figure 5-15 Wireless Settings
¾ SSID - The SSID of the AP your Router is going to connect to as a client. You can also use
the search function to select the SSID to join.
¾ BSSID - The BSSID of the AP your Router is going to connect to as a client. You can also use
the search function to select the BSSID to join.
¾ Survey - Click this button, you can survey the AP which runs in the current channel.
¾ Key type - This option should be chosen according to the AP's security configuration. It is
recommended that the security type is the same as your AP's security type.
¾ WEP Index - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX). It
indicates the index of the WEP key.
¾ Auth type - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX).It
indicates the authorization type of the Root AP.
¾ Password - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
¾ Local SSID - Enter a value of up to 32 characters. The same Name (SSID) must be assigned
to all wireless devices in your network.
-130-
