TL-R488T Load Balance Broadband Router User Guide
36

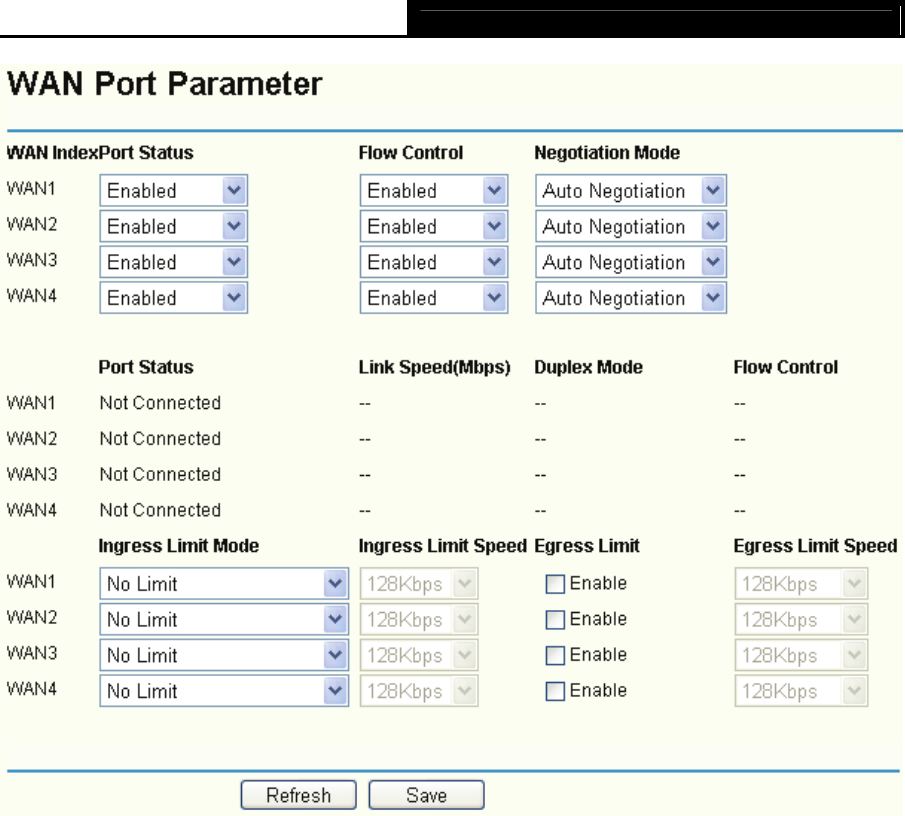

Figure 4-16
¾ WAN Index - This shows the Router's WAN ports.
¾ Port Status - This shows the ports' current status: Enabled (default) or Disabled.
¾ Flow Control - This shows the function of Flow Control is Enabled or Disabled.
¾ Negotiation Mode - The options are: Auto Negotiation, 10M Half Duplex, 10M Full Duplex,
100M Half Duplex, and 100M Full Duplex.
¾ Ingress Limit Mode & Ingress Limit Speed - Select the limit mode and limit speed for the
WAN ports.
¾ Egress Limit & Egress Limit speed - Enable Egress Limit for WAN ports and select the limit
speed for them.
)
Note:
Egress speed limit is designed for controlling the broadcasting storm. When the current flux
oversteps the setting value, the overstepped Datagrams will be discarded.
4.4 DHCP
Choose menu “DHCP”, and you can see the submenus under the main menu: DHCP Settings,
DHCP Clients List and Address Reservation.
