INTRODUCTION
INTENDED USE
Your Black & Decker inflation station is designed to be used cordless or in most vehicles
from the standard 12 Volt socket to inflate car and bike tires, balls, rafts, air mattresses,
swimming pool floats, etc. This product is intended for household, consumer use only.

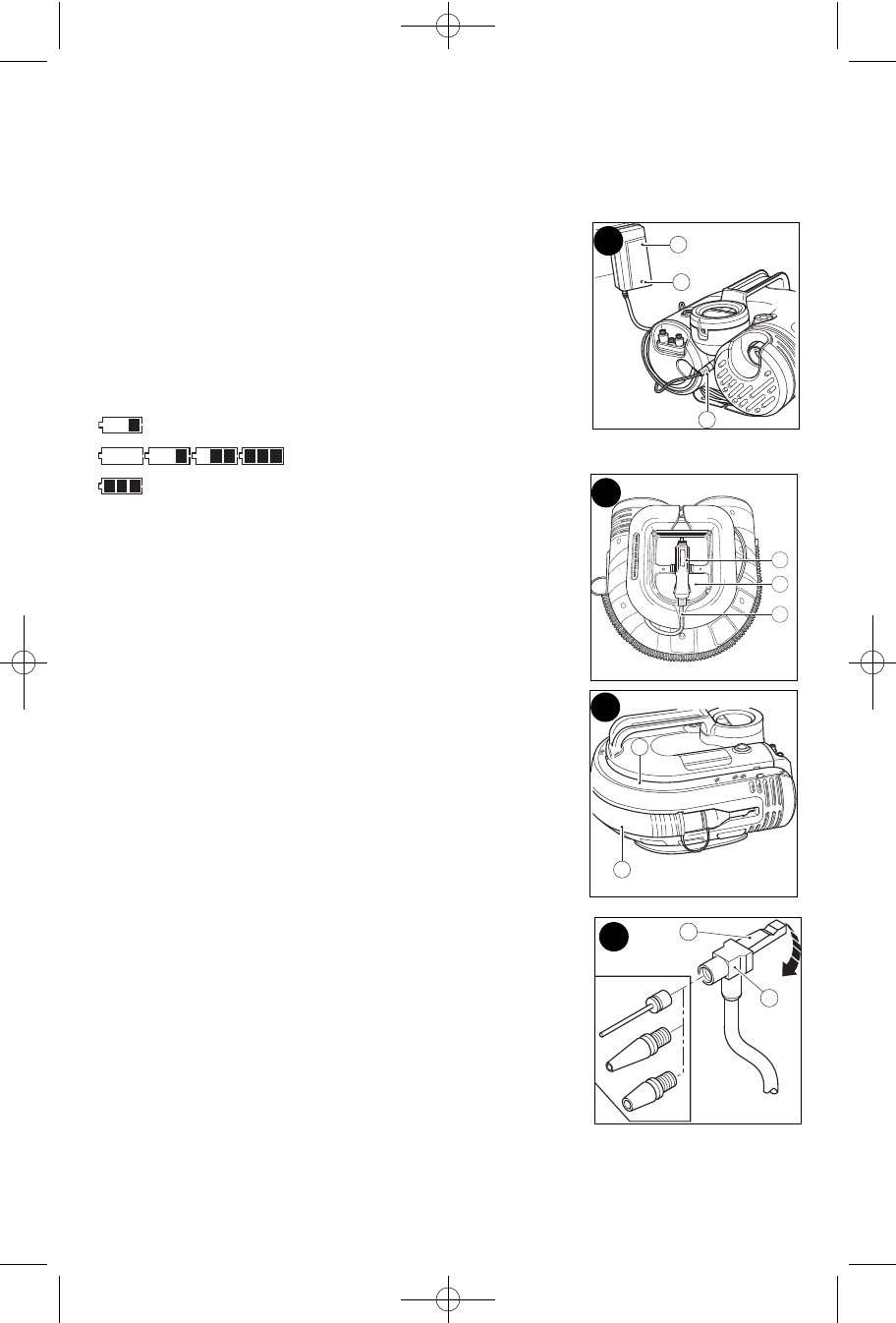

CHARGING THE BATTERY - FIGURE A
The internal battery must be recharged for 4 to 5 hours using
the AC charger provided (13).
• Insert the jack plug (9) into the socket on the front of the unit (11).
• Plug the AC charger into a 120Vac electrical outlet.
• The LED (15) on the AC charger (13) will indicate the level of
charging. Red, unit charging, Green, unit charged.
• When fully charged, remove the AC charger from the power
source and remove the jack plug from the unit.
USE
HOSE AND CORD STORAGE - FIGURES B-D
• Wrap the 12v dc cord (17) around the base of the unit and
snap the 12 Vdc adapter (8) into its storage location on the
base of the unit (16).
• The air hose (5) is located in a storage channel around the
top of the unit (fig. C), make sure the hose is snapped into the
retaining clips and the lever is in the up position (fig.D).
• The pump hose (7) is stored around the center of the unit and
snaps into position at both ends. The accessories are also
stored on the front of the unit.
FITTING THE ACCESSORIES - FIGURES D,E,F & G
Your inflator is supplied with the standard tapered nozzles and
the needle inflator nozzle, these are located on the front of the
unit.
• To use the universal valve adaptor, make sure that the lever is
in the up position.
• Place the valve adapter over the stem of the inflation needle
or tapered nozzle (fig. D).
• Press the lever on the valve adapter down to lock it in place.
• Place the inflation needle or tapered nozzle into the item to be
inflated.
Note: Always make sure that the lever is in the up position
when not in use. Operate your inflator only with the universal
valve adaptor or with the included nozzles.
Note: Make sure that the universal valve adapter is firmly locked in place before turning
the inflator on.
Your inflator is supplied with a high volume adaptor (24).
13
15
9
A
8
17
16
B
7
5
6
19
C
D
Needs charging.
Charging.
Fully charged.
Needs charging.
Charging.
Fully charged.
