9
OPERATING THE LED LIGHT
To switch on the LED light (12):
• Switch the main power switch (1) to the inflate (c fig. G) or the pump (a fig. G) position.
• Press either of the - or + buttons (21, 23) on the LCD (2) to turn the LED light (12) on.
To switch the LED light (12) off:
• Press either of the - or + buttons (21, 23) again.
• Turn the main power (1) switch to off.
SLEEP MODE TO PRESERVE BATTERY LIFE
• The unit is fitted with a sleep mode function that will help prolong the life of the internal
battery.
• If the unit is left on and unused for more than 2 minutes the unit will drop into sleep mode.
• To power the unit again either switch the main power switch (1) on and off or press any
button on the LCD (2).
Note: After sleep mode, all settings will be lost and will need to be re-entered following the
instructions under the heading 'Setting the automatic shut-off pressure'.
REPLACING THE FUSE IN THE VEHICLE DC ACCESSORY PLUG
• Remove the cap by turning it counterclockwise.
• Remove the center pin.
• Remove the fuse.
• Fit a new fuse of the same type and size (8A/250V).
• Refit the cap and center pin.
• Tighten the cap by turning clockwise onto the plug.

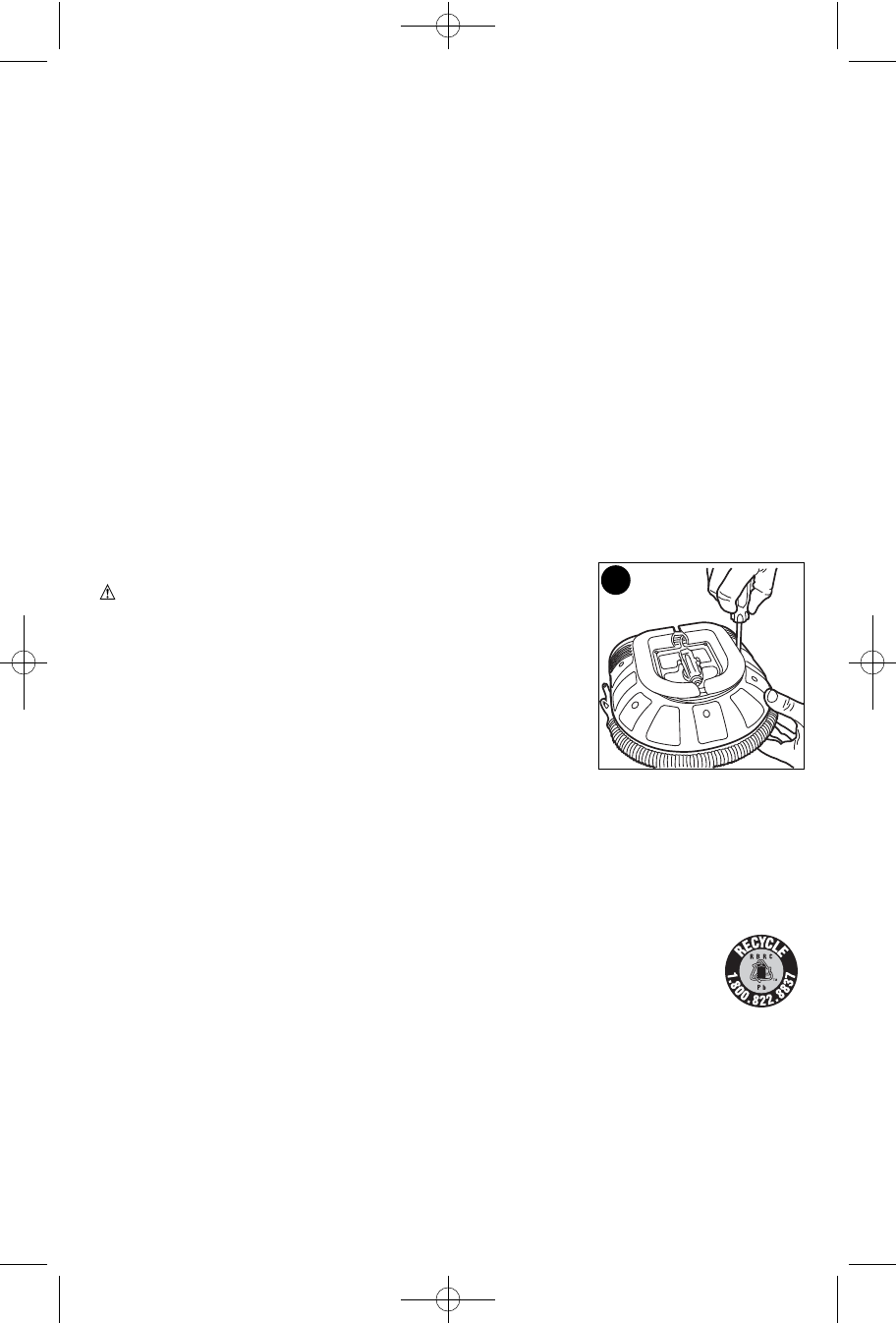

BATTERY REMOVAL (FOR RECYCLING) (FIGURE I)
WARNING: Exercise care when handling batteries in order
not to short the battery with conducting materials such as
rings, bracelets and keys. The battery or conductor may
overheat and cause burns.
Before attempting to disassemble the main body of the
product, turn it on and leave it on until the power is depleted
to ensure a complete discharge of the battery.
Using a phillips screwdriver, remove the screws from the
bottom housing cover shown in figure I. Lift the battery out
and pull off the terminal clips. See “Service Information” for
battery replacement.
MAINTENANCE
Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the
tool; never immerse any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and
adjustment (other than those listed in this manual) should be performed by authorized
service centers or other qualified service personnel, always using identical replacement parts.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the lead
acid battery (or battery pack) indicates that the costs to recycle the battery (or
battery pack) at the end of its useful life have already been paid by Black &
Decker. In some areas, it is illegal to place spent lead acid batteries in the
trash or municipal solid waste stream and the RBRC program provides an
environmentally conscious alternative.
RBRC in cooperation with Black & Decker and other battery users, has established
programs in the United States and Canada to facilitate the collection of spent lead acid
batteries. Help protect our environment and conserve natural resources by returning the
spent lead acid battery to an authorized Black & Decker service center or to your local
retailer for recycling. You may also contact your local recycling center for information on
where to drop off the spent battery, or call 1-800-8-BATTERY.
I
