INSTALLING ACCESSORIES
Clean the insert shank end of the accessory to
remove any debris, then lightly grease with a
light oil or lubricant.
(Model 11264EVS

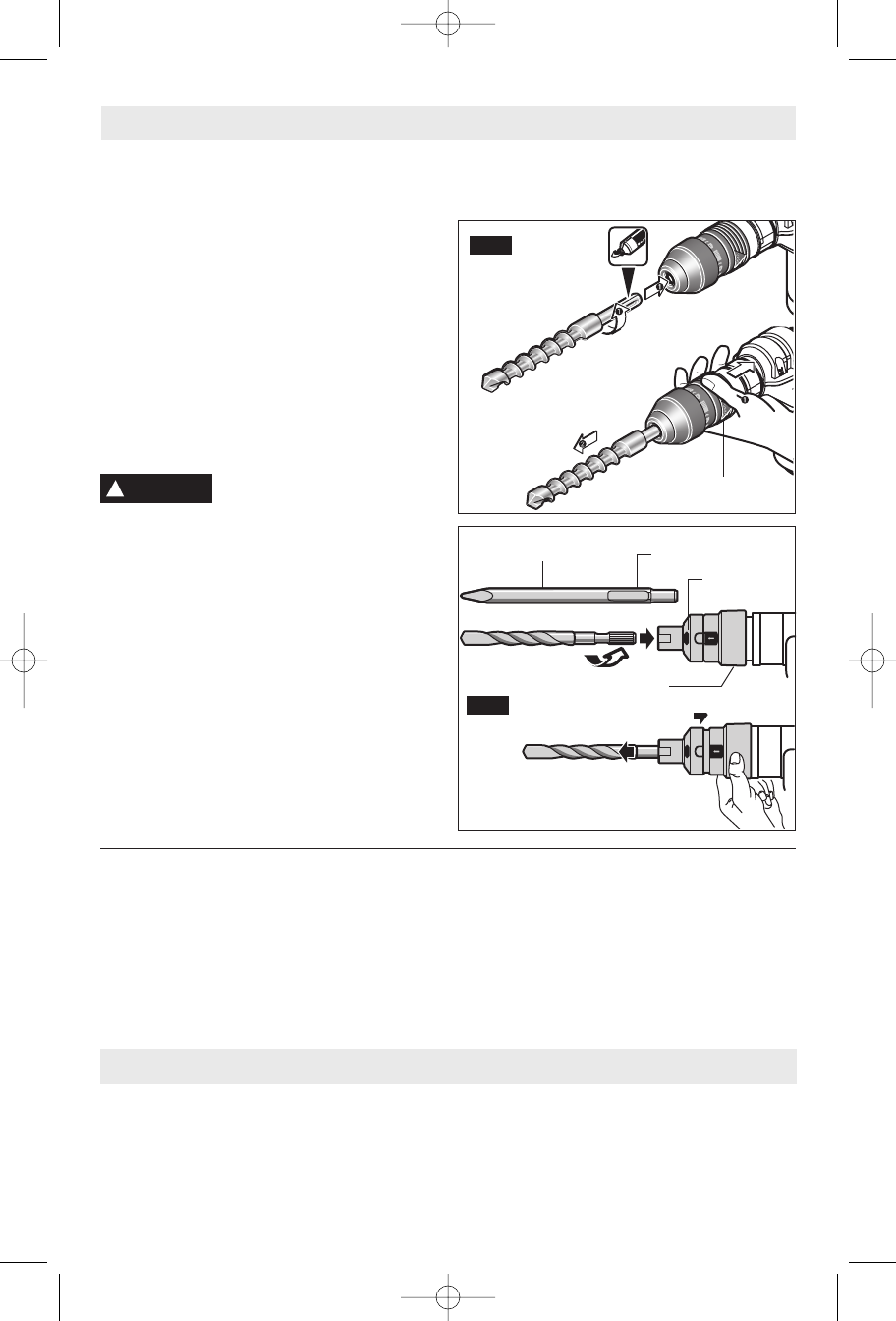

Insert accessory into the tool holder, while
twisting and pushing inward until it locks
automatically into place (Fig. 2).
(Model 11265EVS
To install hex round chisels, align flat on chisel
with alignment mark on tool holder, then push
chisel into tool holder until it locks automatically
into place. Pull outward on the accessory to
be certain it is locked into the tool holder
(Fig. 3).
REMOVING ACCESSORIES
Accessories may be hot after
use. Avoid contact with skin
and use proper protective gloves or cloth to
remove.
(Model 11264EVS
To remove an accessory, pull locking sleeve
backward until it locks into place, then pull bit
forward. All accessories should be wiped clean
after removing (Fig. 2).
(Model 11265EVS
To remove an accessory, pull and hold locking
sleeve backward and pull bit forward. All
accessories should be wiped clean after
removing (Fig. 3).
NOTE: The high efficiency available from the
rotary hammers can only be obtained if sharp
and undamaged accessories are used. The
"cost" to maintain sharp and undamaged
accessories is more than offset by the "time
saved" in operating the tool with sharp
accessories.
-7-
Operating Instructions
AUXILIARY HANDLE
The tool must be supported with the auxiliary
handle, which can be swiveled 360˚. To
reposition and/or swivel the handle, loosen
the hand grip, move the handle to the
desired position along the barrel and
securely retighten the hand grip.
VIBRATION DAMPER HANDLE /
HAMMER MECHANISM
The integrated vibration damper in the main
handle and hammer mechanism reduces
vibrations (Fig. 1).
FIG. 3
LOCKING
SLEEVE
ALIGNMENT
MARK
FLAT
HEX ROUND CHISEL
!
WARNING
LOCKING SLEEVE
FIG. 2
Assembly
POWER INDICATOR LIGHT
When you plug your tool into the power
source, the power indicator light will go “ON”
indicating the tool is receiving power.
SLIP CLUTCH
The tool has a internal pre-set slip clutch.
The output spindle will stop rotating if the
accessory binds and overloads the tool.
