For Replacement Parts or Technical Assistance,
Call 1-800-543-6400
FP209800
13
1
2
23
24
21
20
30
29
22
19a
32
19
10
12b
9
26
18
31
14
25
11
28
7
8
16
17
18
27
6
5
4
3
12a
12b
www.chpower.com

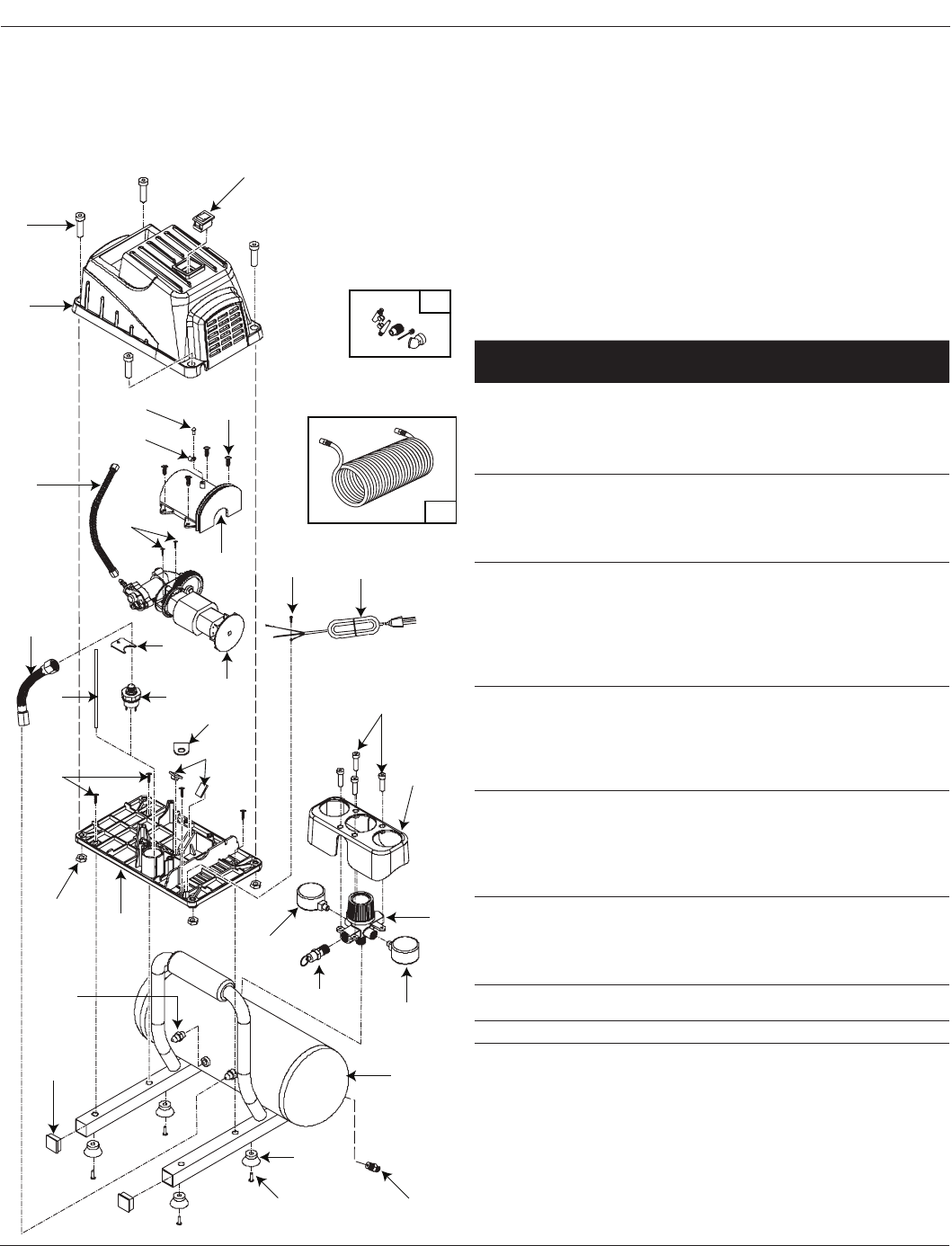

Replacement Parts List
Ref.
No. Description
Part
No. Qty.
1 Shroud assembly FP209536AV 1
2 On/off switch FP204824AV 1
3 Screw
s
4
4 Manifold Cover
s
1
5 Regulator
s
1
6 1-1/2 in. dia. left gauge FP209528AV 1
7 1-1/2 in. dia. right gauge FP209821AV 1
8 Safety valve V-215104AV 1
9 Motor isolator
n
2
10 Pressure switch FP209538AV 1
11 Check valve FP209532AV 1
12 Power cord FP209534AV 1
12a Ground screw * 1
12b Strain relief — 1
13 Housing screw
u
4
14 Nut
u
4
15 Drain valve D-1403 1
16 Rubber foot
l
4
17 Foot bolt
l
4
18 Wire (pressure switch to power
switch)
FP209523AV 1
19 Pump/motor assembly FP209039AV 1
19a Exhaust tube assembly FP202839AV 1
20 Wire clip FP202823AV 1
21 Screw * 1
22 Motor cover
t
1
23 5 piece accessory kit FP204008AV 1
24 25 ft. recoil house MP268100AV 1
25 Plastic base
t
1
26 Pressure switch tube assembly FP209535AV 1
27 Tank assembly — 1
28 Platic caps — 4
29 Washered head screw
u
2
30 Motor housing Screw
u
4
31 Base screw
u
4
32 Pressure switch bracket — 1
REPLACEMENT PARTS KITS
s
Manifold assembly FP209820AV
n
Isolator kit (includes 4) FP209037AV
l
Feet kit FP209522AV
u
Fastener kit FP209041AV
t
Plastic base & motor cover FP209038AV
* Standard hardware item
— Not available
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Address parts correspondence to:
Campbell Hausfeld
Attn: Customer Service
100 Production Drive
Harrison, OH 45030 U.S.A.
