Installation Instructions CTA-025
5
TOOLS REQUIRED FOR
INSTALLATION
The tools required for installation are as follows:
• Electric drill and bit set
• Stud sensor (mechanical or electronic)
• ½” box-end wrench or ratchet with ½” socket
• 13mm box-end wrench or ratchet with 13mm socket
• Level
NOTE: Other tools may be required depending on
your method of installation.
INSTRUCTIONS
Step 1
Installing Wall Arm
1. Locate the wall arm (10), two lag bolts (30) and two
flat washers (40). See Figure 2.
WARNING
It is the installer’s responsibility to verify that the
structure to which the mount is anchored will safely
support five times the combined load of all attached
components and equipment.
2. Determine a suitable mounting location. Keep in
mind that you will be mounting the wall arm (10) to
a wood stud, on center.
3. Using a stud sensor, locate the wood stud where you
will mount the wall arm (10).
4. Holding the wall arm (10) against the wall, use a
pencil, awl, or small nail to mark the mounting holes
where two pilot holes will be drilled into the center
of the wood stud. Make sure that the mounting holes
are centered.
5. Using a 15/64” drill bit, drill two pilot holes for
anchoring the wall arm (10).
6. Using two 5/16” lag bolts (30) and two 5/16” flat
washers (40), install the wall arm (10) on the wall.

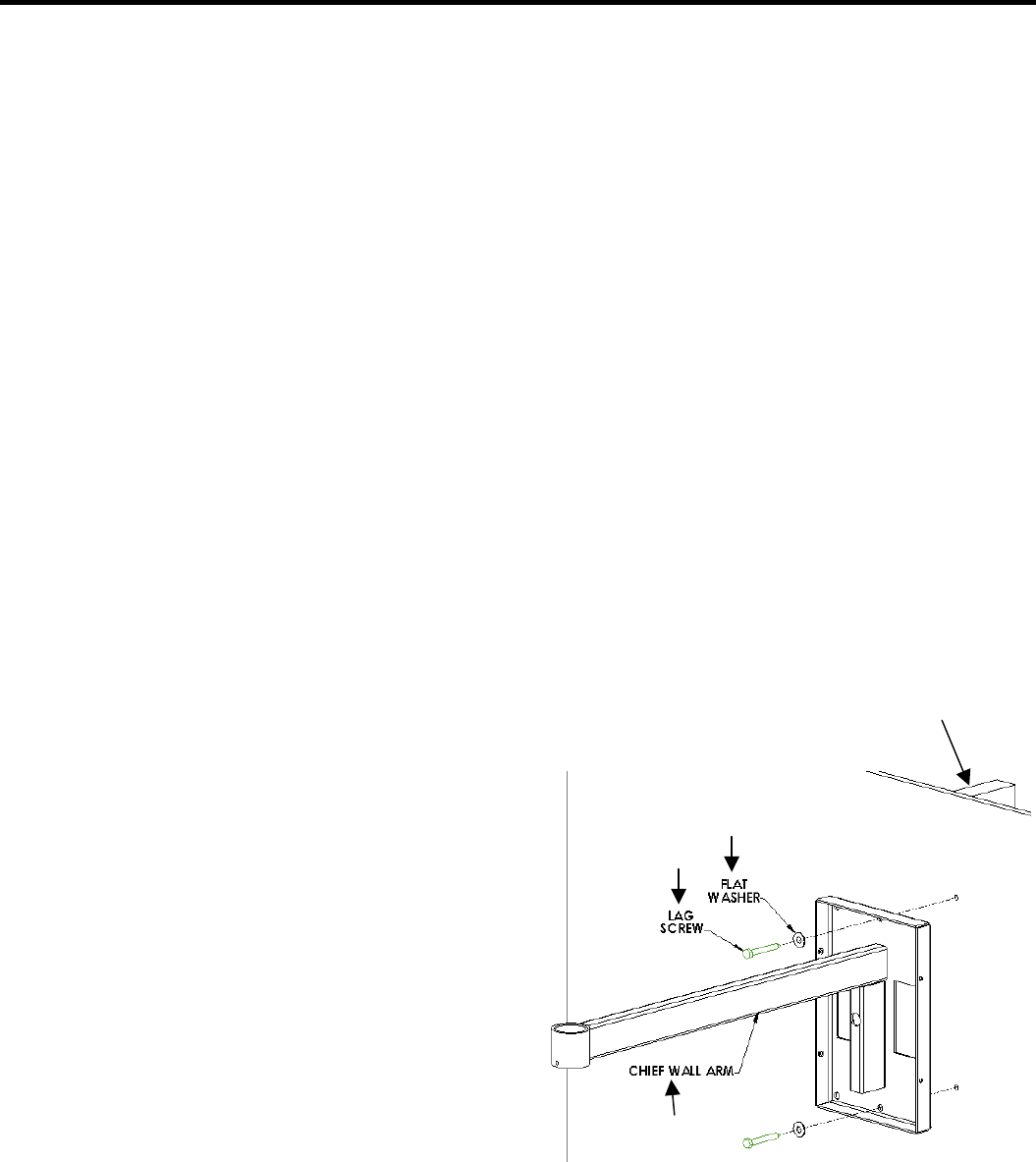

Figure 2. Install Wall Arm
Wall Stud
(
30
)
(
40
)
(
10
)
