Installation Instructions CTA-025
6
STEP 2
Attaching Front Cover
1. Locate front cover (20) and four M4 x 8mm Phillips
head cap screws (50).
NOTES
• The front cover may be partially removed and
reinstalled to conceal power/audio/video cables
after the TV/Mount is installed.
• You may remove one or both knockouts on
cover to assist routing to wall through cover.
2. Install the front cover (20) using four M4 8mm
Phillips head cap screws (50). See Figure 3.
STEP 3
Connecting NPT Pipe or Nipple to Wall Arm
1. Locate M6 x 6mm set screw (60) and 1-1/2” NPT
pipe or nipple (supplied with TV Mount or
purchased separately).
2. Connect the 1-1/2” NPT pipe or nipple (supplied
with TV Mount or purchased separately) to the wall
arm (10). See Figure 4.
3. Using the M3 Allen key (70), install the M6 x 6mm
set screw (60). Tighten the set screw.
WARNING
Make sure to tighten the M6 x 6mm set screw (60) to
prevent equipment damage or personal injury.

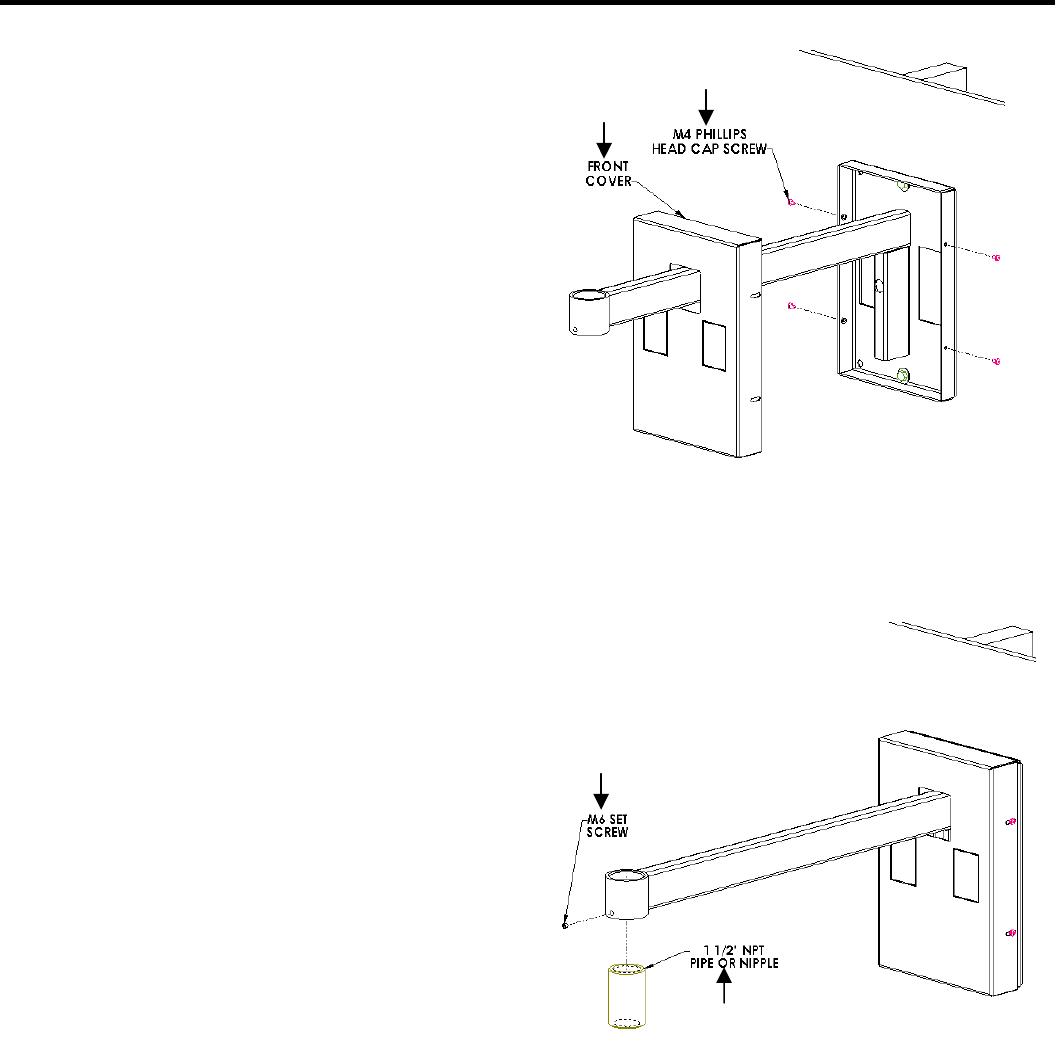

Figure 3. Attach Front Cover
Figure 4. Connect NPT Pipe or Nipple to Wall Arm
(
20
)
(
50
)
(
60
)
(Supplied with TV Mount
or purchased separately)
