2-13
Cisco 828 Router and SOHO 78 Router Hardware Installation Guide
78-12837-02
Chapter 2 Installation
Mounting the Router
Caution If you are mounting the router on drywall, use two hollow wall
anchors (1/8 in. with 5/16-in. drill bit, or M3 with 8-mm drill bit) to
secure the screws. If the screws are not properly anchored, the strain
of the network cable connections could pull the router from the wall.

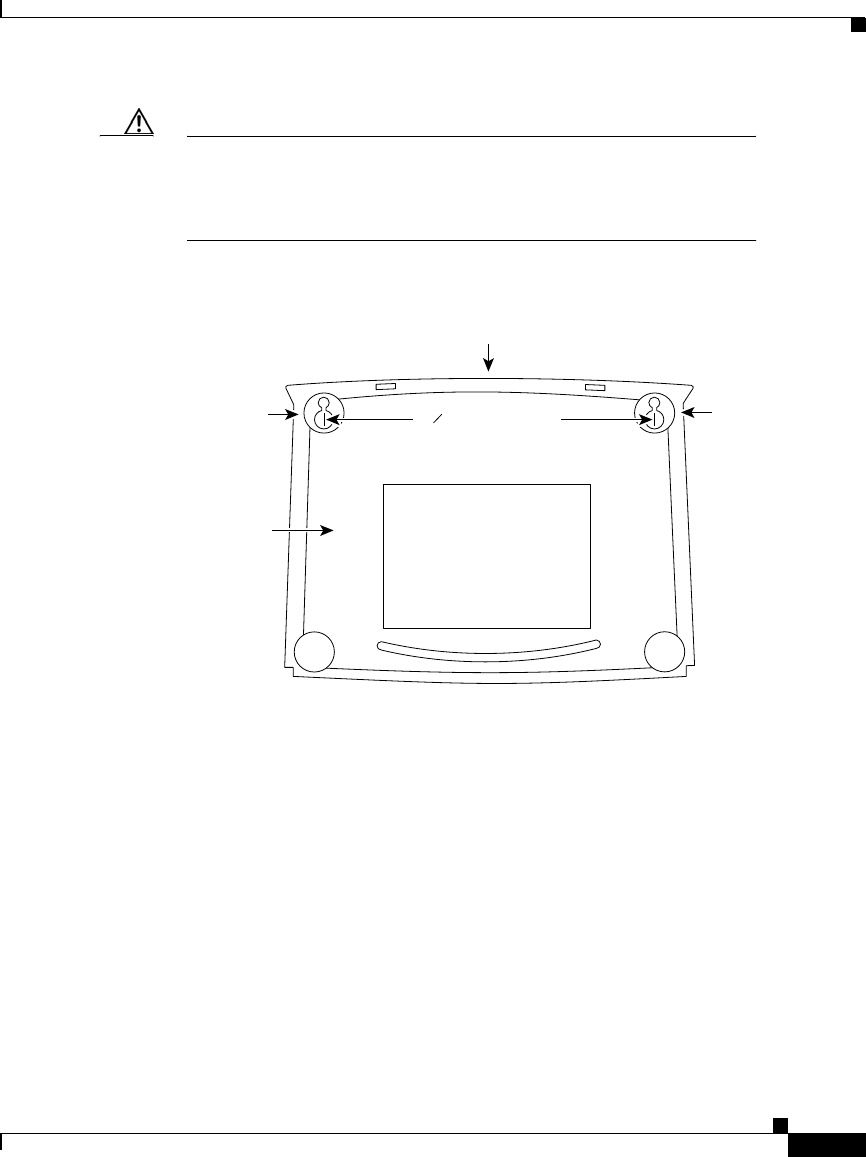

Figure 2-6 Wall-Mounting Brackets (Bottom of Router)
The following conditions must be met when you mount the router:
• Because you will use the LEDs as status and problem indicators, the LEDs on
the front panel must face upward and be easily visible.
• The back panel must face downward to reduce strain on the cable
connections.
• The power supply must rest on a horizontal surface, such as the floor or a
table. If the power supply is not supported, it might place strain on the power
supply cable and cause it to disconnect from the connector on the router back
panel.
To mount the router, follow the steps in Figure 2-7. The last page of this manual
provides a template for measuring the distance between the screws.
Mounting
bracket
Mounting
bracket
Front panel of router
7 in. (19.35 cm)
Bottom
of router
