Cisco ASA 5500-X Series Hardware Installation Guide
Chapter 1 Information about the ASA 5500-X
Console Cable Pinouts

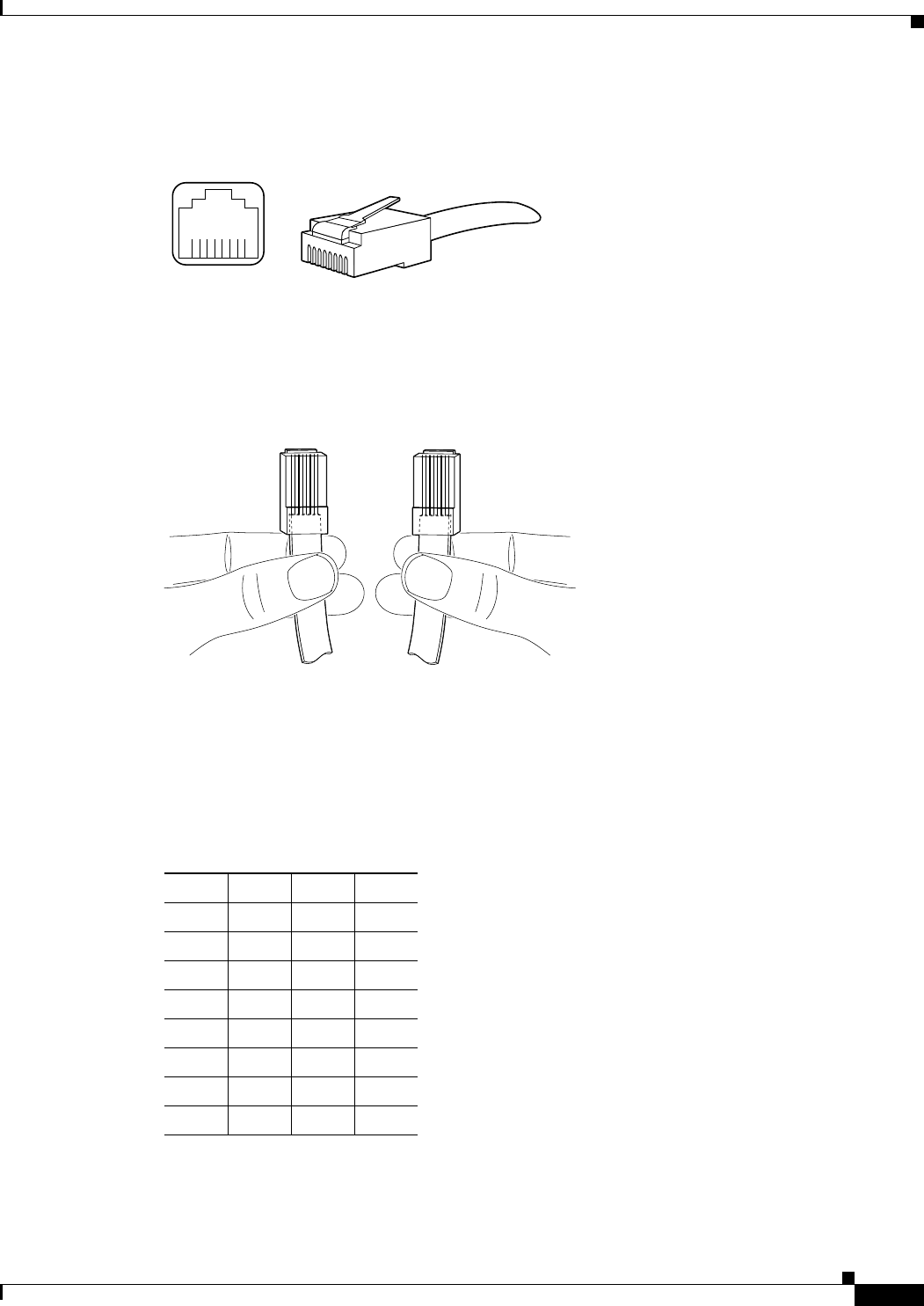

Figure 1-9 shows the RJ 45 cable.
Figure 1-9 RJ-45 Cable
To identify the RJ-45 cable type, hold the two ends of the cable next to each other so that you can see
the colored wires inside the ends, as shown in Figure 1-10.
Figure 1-10 RJ-45 Cable Identification
Examine the sequence of colored wires to determine the type of RJ-45 cable, as follows:
Straight-through—The colored wires are in the same sequence at both ends of the cable.
Crossover—The first (far left) colored wire at one end of the cable is the third colored wire at the
other end of the cable.
Table 1-5 lists the rolled (console) cable pinouts for RJ-45.
H2936
8 7 6 5 4 3 2 1
RJ-45 connector
H5663
Table 1-5 RJ-45 Rolled (Console) Cable Pinouts
Signal Pin Pin Pin
- 18-
- 27-
- 36-
- 45-
- 54-
- 63-
- 72-
- 81-
