E-50833

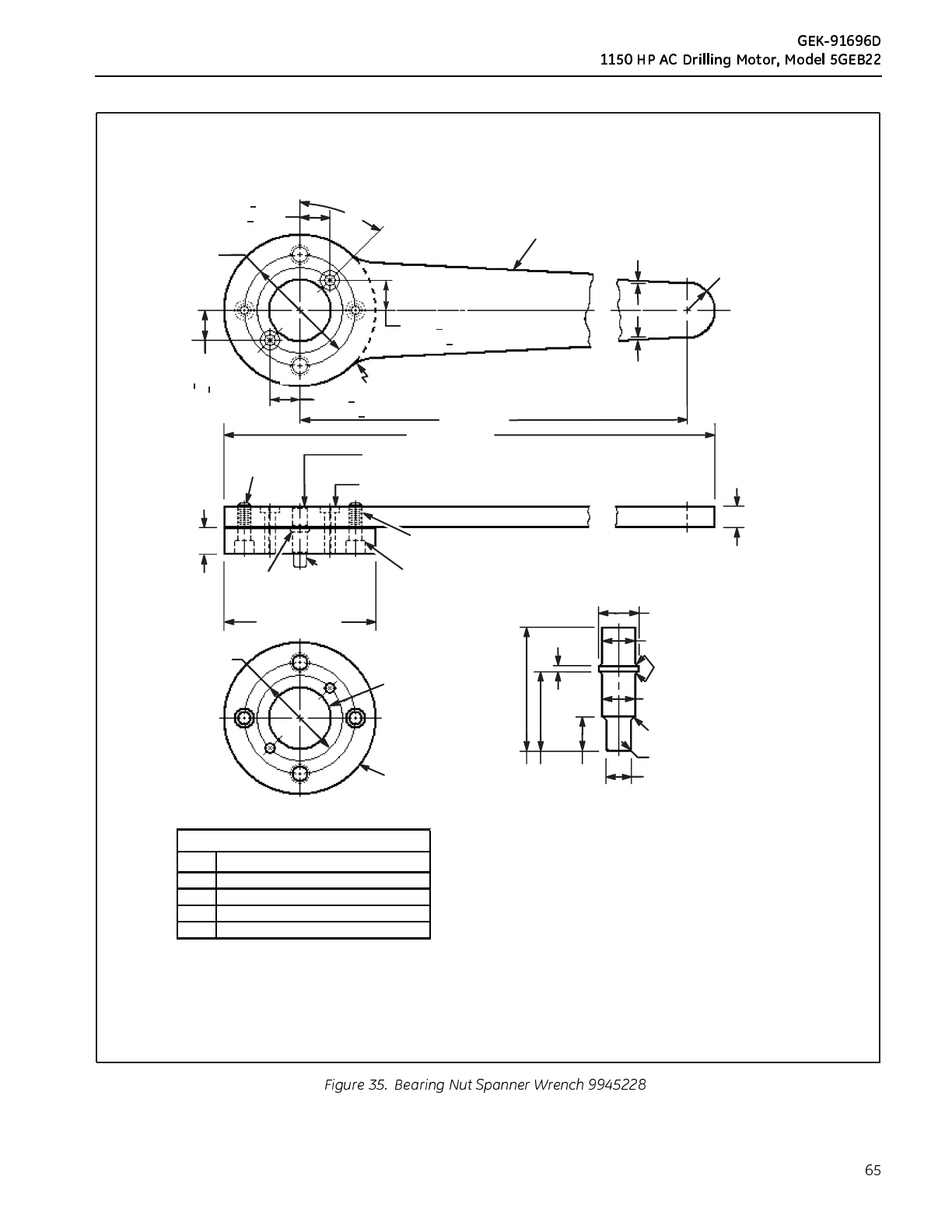

9945228 SPANNER WRENCH
PART DESCRIPTION
1 HANDLE (4140)
2 PLATE (4140)
3PIN (T.S)
4 SOCKET HEAD SCREW (.5-13X1.25)
MEASUREMENTS IN INCHES (MILLIMETERS IN PARENTHESES)
PART 3 PIN
ROCKWELL ‘C’ 45-50
PIN ENLARGED FOR DETAIL
.625 (15.875)
1.4375 (36.5125)
.1094
(2.7788)
2.25 (57.15)
PART 2 PLATE
NITRIDE HARDEN
RC 52-54
2.3125 (58.7375) DIA
THRU, PARTS 1 & 2
.5-13 TAP THRU
2 OPPOSITE HOLES
PART 4
BOLT
DRILL FOR .625 (15.875) REAMER, PART 1 & 2,
2 OPPOSITE HOLES, REAM ASSEMBLED
DRILL .5625 (14.287)
C’BORE .8125 (20.638) .5625 DEEP
2 OPPOSITE HOLES
.75 (19.05) DIA
20.75 (527.05)
17.0 (431.8)
1.105 + .005
(28.067 + .127)
1.105 + .005
(28.067 + .127)
+ 1.5 (38.1) RAD
PART 1 HANDLE
NITRIDE HARDEN
RC 52-54
1 (25.4)
RAD
45
0
0
3
3
0
1.105 + .005
(28.067 + .127)
4.000 + .007 DIA
(101.600 + .1778)
BOLT CIRCLE
PART 3 PIN
5.5 (139.7) DIA
.8125 (20.6375) C’BORE,
.125 (3.175) DEEP, C’SINK
.031 (794), 2 OPP. HOLES
.0312 (.7925) RAD
.46875 (11.90.63) DIA
.6255 +.000/-.001 DIA
(15.8877 +.0000/-.0254)
.03125 RAD
(.79375)
.6255 +.000/-.001 DIA
(15.887 +.0000/-.0254)
.0625 RAD
(1.5875)
.75 (19.05)
BLANCHARD GRIND
1.0 (25.4)
BLANCHARD
GRIND
1.105 + .005
(28.067 + .127)
3.125 (79.375) DIA
BOLT CIRCLE
.53125 (13.4938) DRILL THRU, .8125 (20.6375), 2 OPPOSITE
HOLES, C’BORE HANDLE .8125 (20.6375), .1875 (4.7625) DEEP
