Loading Staples
ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN
RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other
people in the work area must also wear ANSI approved impact safety goggles.
Warning! Make sure the Nailer is not attached to the air hose whenever loading the tool.
1. The Nailer/Stapler should be in the same position as in Figure 2.
2. As in Figure 3, depress Magazine Lock (229) and slide Magazine Cover (227) open.
3. Slide the staples over the Magazine’s Core (216) (see Figure 4).
4. After the staples reach the nose of the tool, close the Magazine Cover (see Figure 5).
Loading Brad Nails
ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN
RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other
people in the work area must also wear ANSI approved impact safety goggles.
Warning! Make sure the Nailer is not attached to
the air hose whenever loading the tool.
1. Follow
Loading Staples
steps 1 and 2, above.
2. Insert the Brad Nails into the Magazine, letting the
pointed end ride on the rail along the bottom of
the Magazine (205) (see Figures 4 and 6).
3. After the Nails reach the nose of the tool, close
the Magazine Cover (227) (see Figure 6, below).

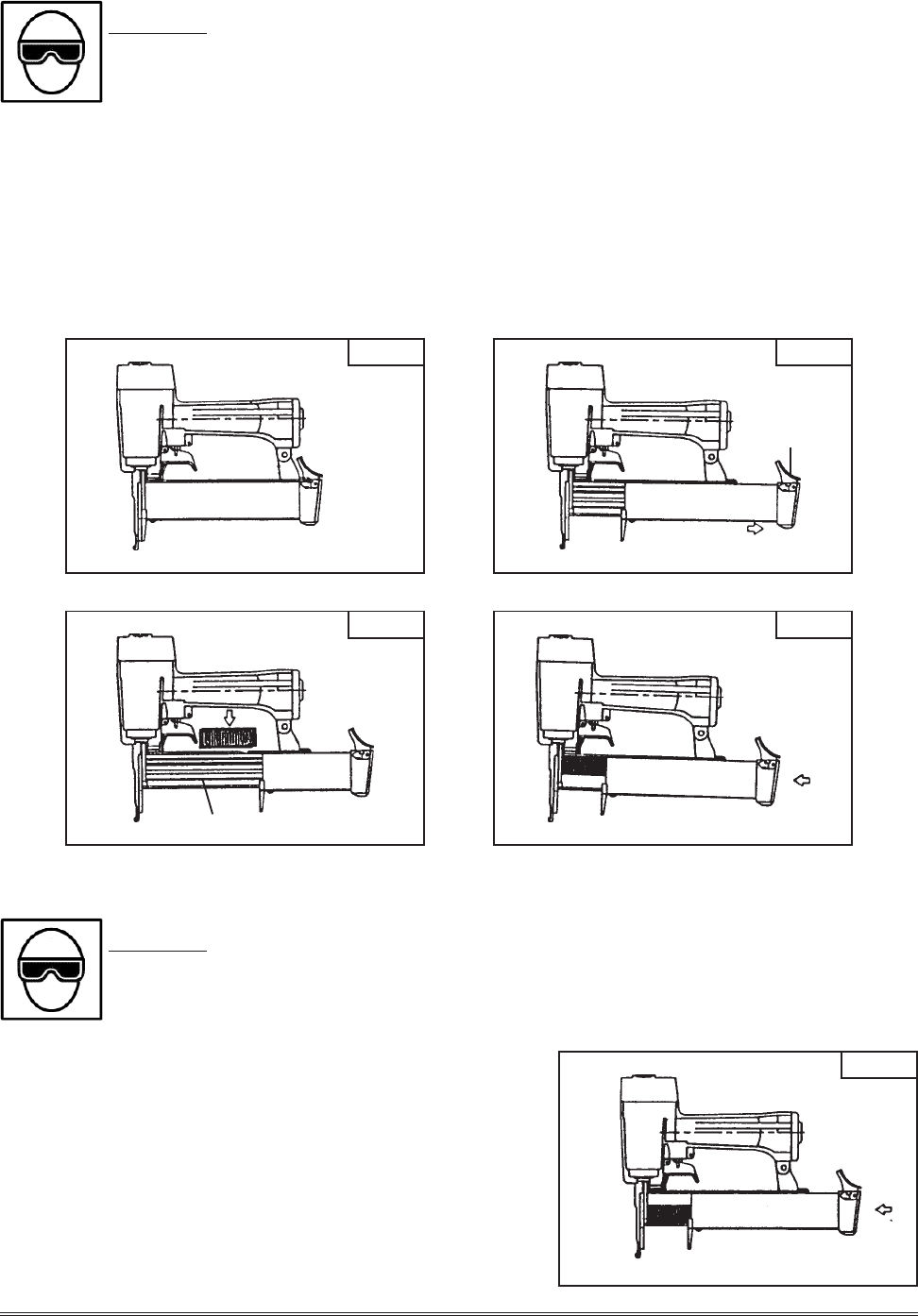

Figure 5Figure 4
Magazine
Cover (227)
Core (216)
Magazine
Lock (229)
Figure 3Figure 2
Magazine
Cover (227)
Figure 6
Magazine
Cover (227)
