9. Check for damaged parts. Before using any tool, any part that appears
damaged should be carefully checked to determine that it will operate properly
and perform its intended function. Check for loose parts and any other condition
that may affect the operation of this product. Replace loose or worn parts
immediately. Any part that is damaged should be properly repaired or replaced
by a qualified technician.
10. Replacement parts. When servicing, use only identical replacement parts. Use
of any other parts will void the warranty.
Warning: The warnings, cautions, and instructions discussed in this instruc-
tion manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the
operator.
Unpacking
When unpacking, check to make sure the following parts are included. If any parts
are missing or broken, please call Harbor Freight Tools at the number on the cover of
this manual.
Assembly Instructions
1. Assemble all parts on a smooth surface to avoid scratching.
2. Select the shorter Side Brace (3) for the left side and the longer Side Brace (3)
for the right side. Attach the lower Tray (2) to the Side Braces (3) by matching
up the holes and securing with Bolts (1), through Side Brace (3). Secure with
Washers (11), Spring Washers (12), and Nuts (13). Finger tighten.
See Figure A.
3. In the center of the Side Brace (3), attach Support Brace (7) by threading Bolt
(1) through Side Brace (3). Secure in place with Washer (11), Spring Washer
(12), and Nut (13). Repeat for other side.
See Assembly Drawing.
Tighten all
hardware.
SKU 47418 Page 3
Bolt (1)
Washer (11)
Spring Washer (12)
Nut (13)

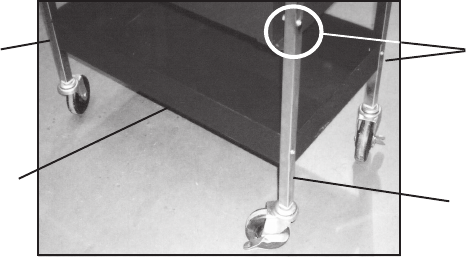

Figure A
Tray (2)
Shorter Side
Brace (3)
Longer Side
Brace (3)
