For technical questions, please call 1-800-444-3353;
Troubleshooting section at end of manual.
SKU 93305 Page 6
Air Connection

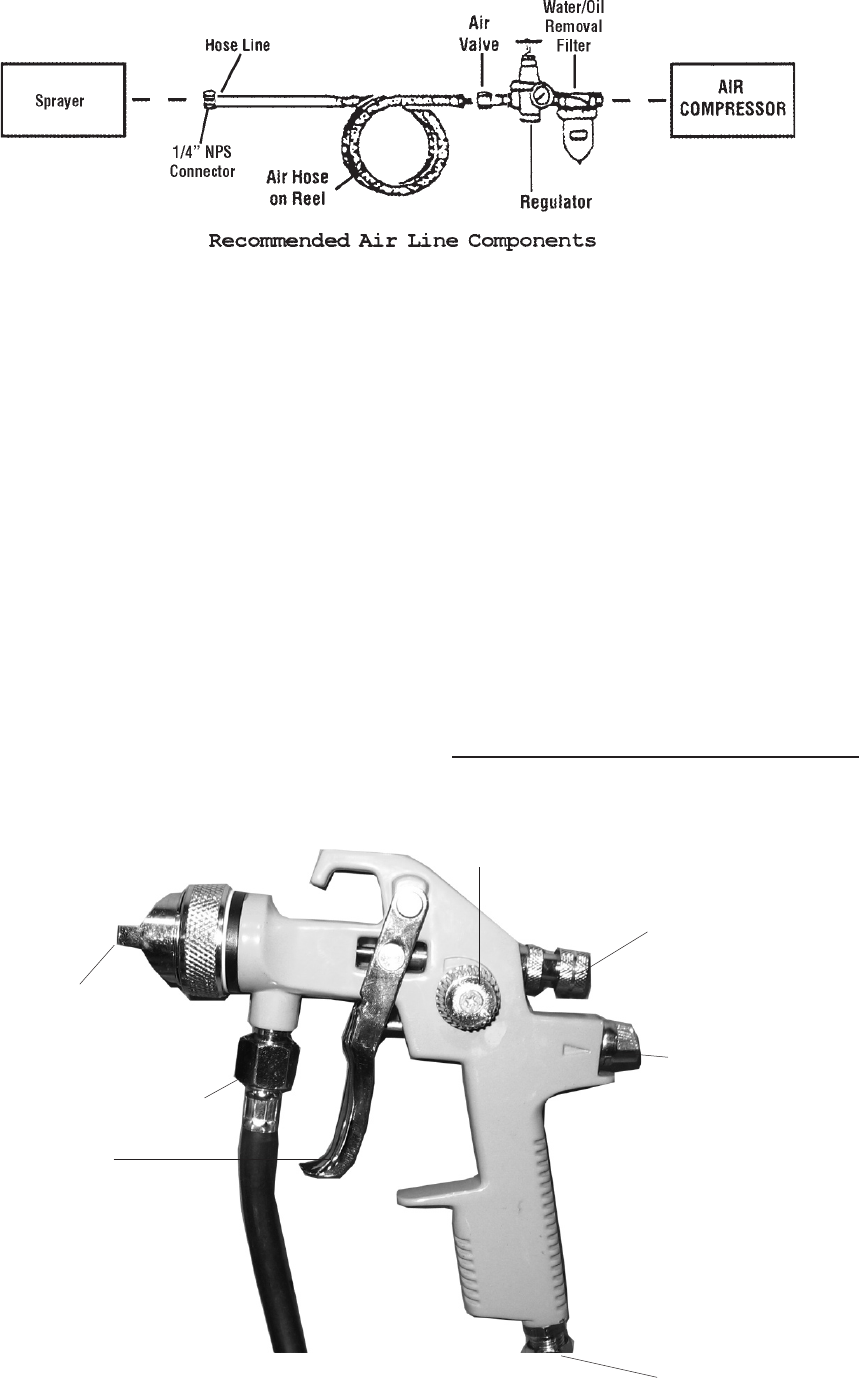

For best service you should incorporate a regulator and inline lter, as shown in the diagram
above. Hoses, couplers, regulators, and lters are all available at Harbor Freight Tools.
Note: Compressor pumps discharge condensed water, oil, or other contaminants along with
the compressed air. Condensation causes “sh eyes” to appear in paint patterns. To avoid
this problem, install water/oil removal lters and controls (not included) as close to the Spray
Gun as possible. If run through the Gun, water and oil will cause damage.
1. You will need to prepare a 1/4” air connector (sold separately) to connect to the air inlet
on the Spray Gun. First, wrap the 1/4” air connector (not included) with pipe thread
seal tape before threading it into the Air Inlet (36). Connect the Red Air Hose (41) to
the Air Outlet Connector (36). Attach the other end of the Red Air Hose (41) to the Air
Inlet (80) on the Gun.
2. Set the air pressure on your compressor to 30-43 PSI. Do not exceed the maximum
air pressure of 43 PSI. Also, set the air pressure on the Air Regulator to 10-30 PSI, as
shown on the Gauge (38).
3. Check the air connection for leaks and then disconnect the tool from the air source.
FIGURE 1
Control Layout
Pattern Control Knob (57)
Trigger (78)
Air Inlet (80)
Air Cap Set (45)
Fluid Control Knob (67)
Fluid Inlet
Air Adjustment Knob (73)
