5. From the underside of the workbench, put the appropriate size washers, lock washers
and nuts on the bolts (not provided). Tighten all the nuts, securing the Vise Plate (1) to
the workbench. Be sure the Vise is securely attached to the workbench before working
with the Vise.
Mounting
Holes
Vise Plate (1)

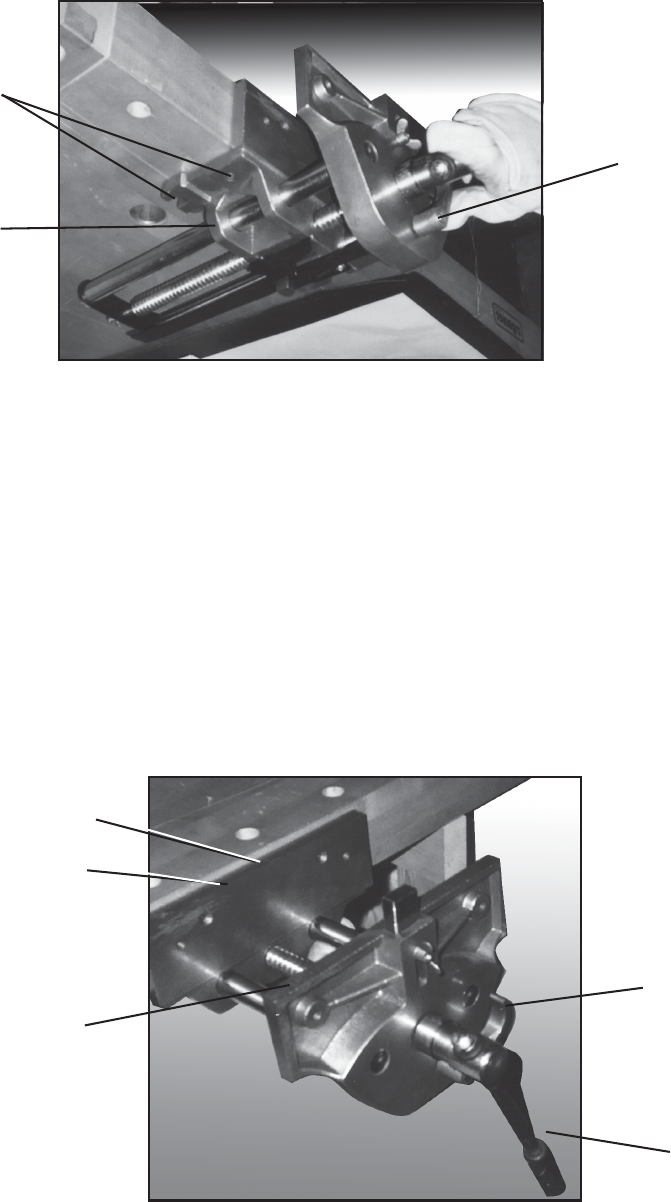

Figure 1
Note: By pushing down on the Quick Release Lever (4), you can release the Jaws so the
Jaws can be easily and quickly slid open or closed.
1. Slide the Jaws (2) open by either turning the Handle (3) or using the Quck Release Lever.
Place the workpiece you are working on inside the Jaws. Tighten the Jaws (2) against the
workpiece by turning the Handle (3) clockwise until your workpiece is held securely.
Caution: Damage could occur if you over-tighten the Handle (3). Avoid marring the
workpiece surface.
See Figure 2.
2. To remove the object you are working on, turn the Handle (3) counterclockwise
two to three times, opening the Jaws (2). Remove your workpiece.
OPERATING INSTRUCTIONS
Figure 2
Handle (3)
Vise Plate (1)
Jaw Face
Jaw Face
Quick Release
Lever (4)
Thumb on Quick
Release Lever (4)
Note: Jaws have threaded holes
and countersunk screw holes
for attaching wood faces
(not included).
