How to turn on the Rotary Hammer
1. To turn on the Rotary Hammer squeeze the Switch (107) shown below in Figure
3. There is a latch on the upper part of the switch that locks the switch on.
How to attach the chisels
WARNING: Always make sure this tool is not plugged in before changing the bits.

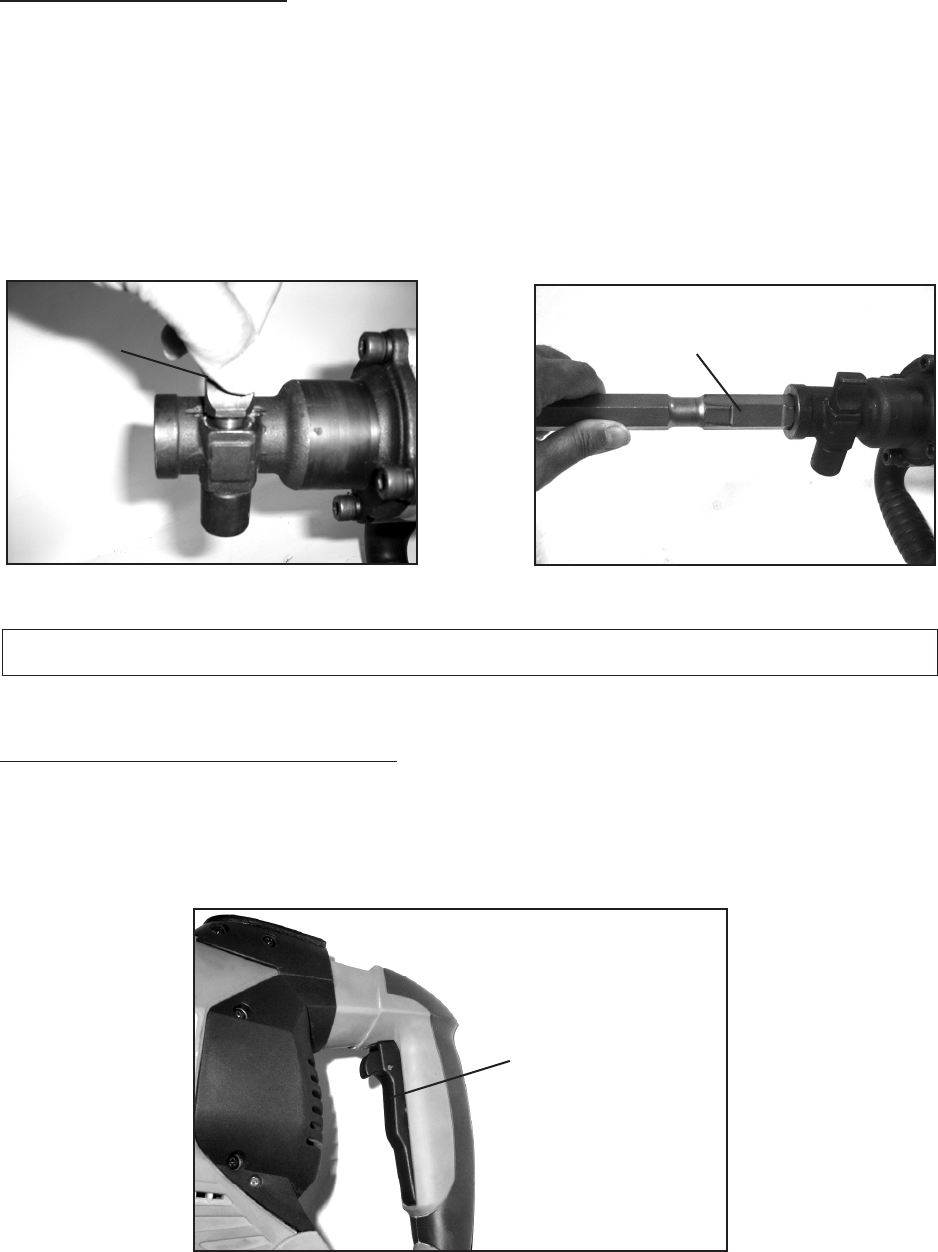

1. Slide the Bits into the Rotary Hammer with the flat cut-out side facing the Rod (19)
as shown in Figure 2.
2. Pull out the Rod (19) while you insert the Bit. See Figure 1. The two bits both have
a flat space on the shaft that must be turned horizontally when it is inserted. See
Figure 2. Turn the Rod (19) clockwise 180° to lock the Bit into place. The Bit should
move in and out after it is locked but should not come out.
Flat area of Bit
Rod (19)
Figure 3
Figure 2Figure 1
Switch (107)
OPERATING INSTRUCTIONS
