5. Once the four 3/8” mounting holes are drilled through the mounting surface,
place the Air Compressor Pump on the mounting surface and align its four
mounting holes with the four drilled mounting holes on the mounting surface.
Then, secure the Air Compressor Pump to the mounting surface, using four 3/8”
Bolts of appropriate length, four Lockwashers, and four Nuts (all not included).
6. The Air Compressor Pump requires the use of a “V” Pulley Belt (not included).
The “V” Pulley Belt should be no wider than 1-5/16” wide at its widest point and
of appropriate length depending on the distance between the Air Compressor
Pump’s Pulley (part #38) and the 3 HP Motor’s Pulley (not included). Once the
“V” Belt Pulley is installed, its proper length is indicated by pushing down with
your finger midway on the “V” Belt Pulley. The “V” Belt Pulley should not de-
press more than 1/2”. (See Figure B.)

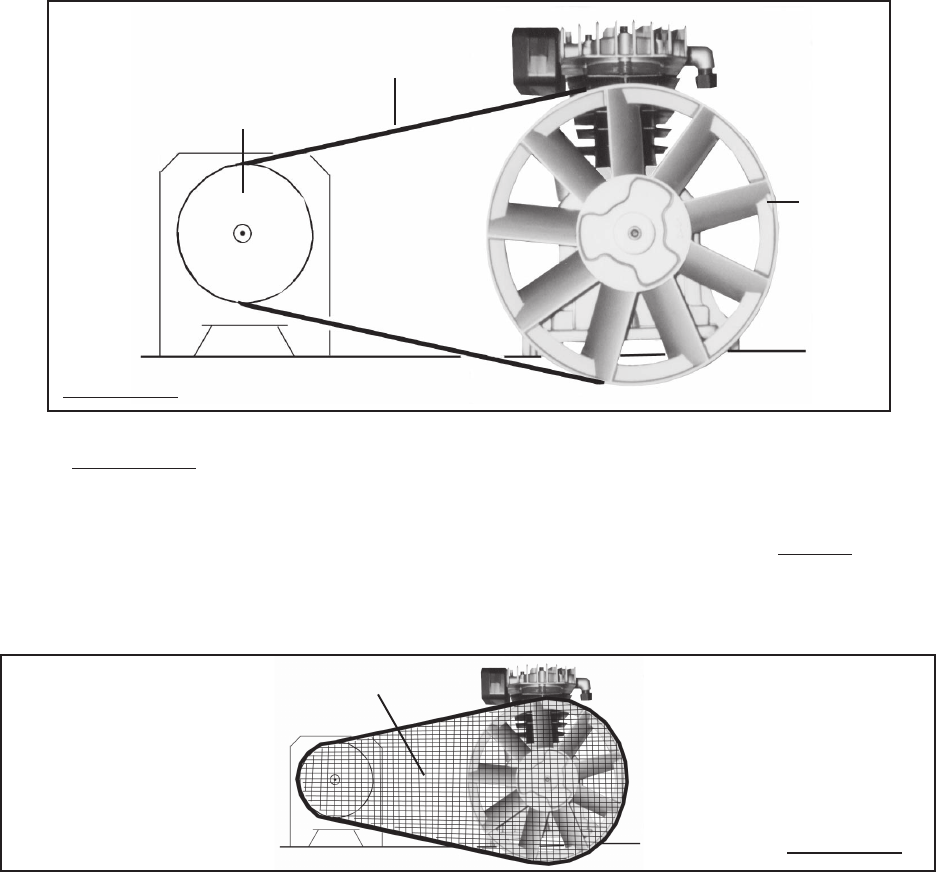

“V” BELT PULLEY
(NOT INCLUDED)
3 HP MOTOR PULLEY
(NOT INCLUDED)
PULLEY
(#38)
FIGURE B
7. WARNING! To avoid personal injury and/or property damage, it is recommended
that a properly functioning Pulley/Belt Guard (not included) be installed. The
Pulley/Belt Guard should
fully
enclose (front, back, top, bottom) the Air Compres-
sor Pump’s Pulley (part #38), the “V” Belt, and the Motor’s Pulley. NOTE: Make
sure to allow for about 1” clearance, on all sides, between the Pulley/Belt Guard
and the Air Compressor Pump’s Pulley, the “V” Belt, and the Motor’s Pulley.
(See Figure C.)
CONVENTIONAL PULLEY/BELT GUARD
(NOT INCLUDED)
FIGURE C
SKU 09592 PAGE 6
