22
● Store batteries out of the reach of children.
● Use batteries correctly in accordance with the battery specifications and indications.
2. Using the bit holder
CAUTION:
● Stow the bit in the specified location on the tool. If
the tool is used with the bit stowed improperly,
the bit may fall and cause bodily injury.
● Do not stow bits that are of a different length,
gauge or dimension than the plus driver bit (65 mm
long) included in the STANDARD ACCESSORIES.
The bit may fall and cause bodily injury.

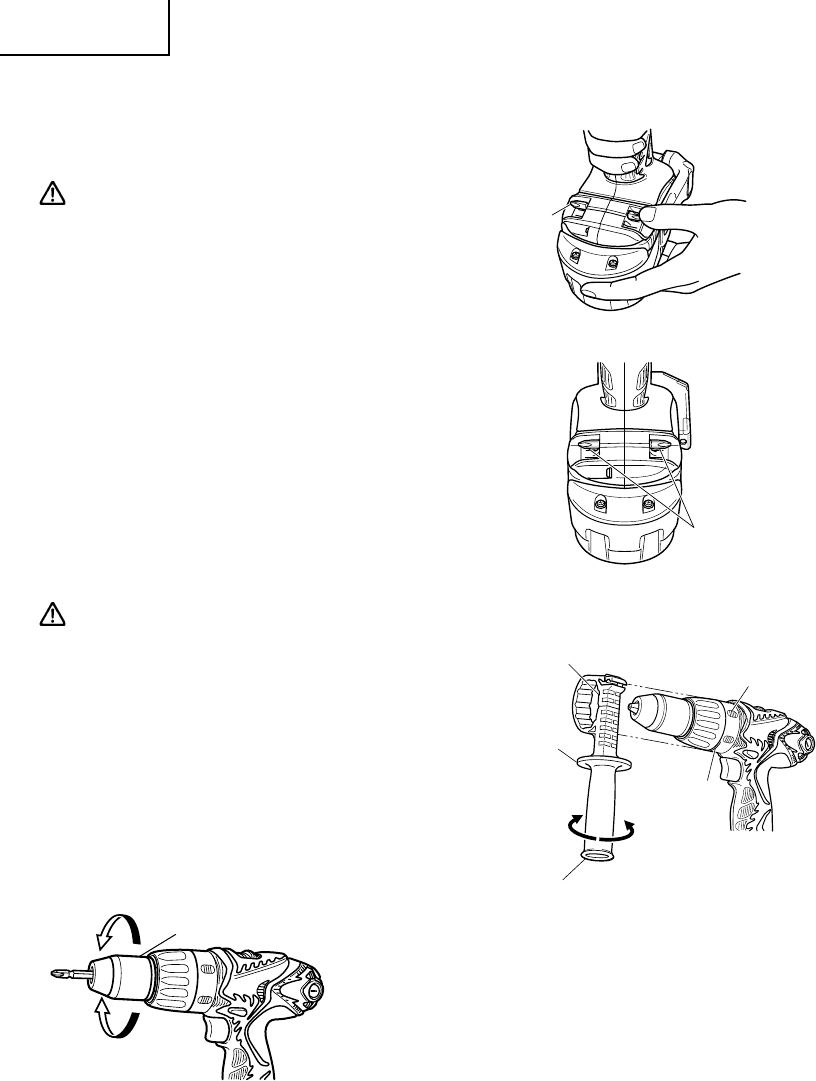

(1) Removing the bit
Securely hold the main unit and pull out the bit by
holding the tip with your thumb. (Fig. 16)
(2) Installing the Bit
Install the bit with steps opposite of when removing.
Insert the bit so that the right and left sides are
equal, as shown in Fig. 17.
3. Installing/Removing the side handle
CAUTION:
● Firmly install the side handle. If loose, the side
handle may gyrate or fall out and cause bodily
injury.
(1) Install the side handle so that the protrusions on
the main unit and grooves on the side handle
interlock. Tighten the grip after checking that the
side handle is not riding on the slip prevention
protrusion. (Fig. 18)
(2) Loosen the grip to remove the side handle.
4. Mounting and dismounting the bit
(1) Mounting the bit
Loosen the sleeve by turning it toward the left (in the
counterclockwise direction as viewed from the front) to
open the clip on the keyless chuck. After inserting a driver
bit, etc., into the keyless drill chuck, and tighten the sleeve
by turning it toward the right (in the clockwise direction
as viewed from the front). (See Fig. 19)
NOTE: If the sleeve becomes loose during operation,
tighten it further.
The tightening force becomes stronger when the
sleeve is tightened.
Fig. 16
Bit
Fig. 17
Insert so that
bit does not
protrude
from main unit
Fig. 18
Concave
Tighten
Slip preventing
protrusion
Rotate preventing
protrusion
Fig. 19
Loosen
Tighten
Sleeve
Loosen
Grip
Side
handle
