ASSEMBLY AND OPERATION
APPLICATIONS
⅜ Use as a drill
Drilling of soft steel, wood, plastic and aluminum materials.
⅜ Use as a screwdriver
Tightening and loosening of machine screws, wood screws and tapping screws.
REMOVAL AND INSTALLATION METHOD OF BATTERY
⅜ How to install the battery.
Align the battery with the groove in tool
handle and slip it into place.
Always insert it all the way until it locks in
place with a little click, If not, it may acciden-
tally fall out of the tool, causing injury to
you or someone around you. (Fig. 3)
⅜ How to remove the battery.
Withdraw battery from the tool handle while
pressing the latch on the front of the battery.
(Fig. 3)
CHARGING METHOD
NOTE: Before plugging into the receptacle, make sure the following points.
⅜ The power source voltage is stated on the nameplate.
⅜ The cord is not damaged.
WARNING: Do not charge at voltage higher than indicated on the nameplate.
If charged at voltage higher than indicated on the nameplate, the
charger will burn up.
1. Insert the battery to the battery charger.
Insert the battery into the battery charger as
shown in Fig. 4. Make sure it contacts the
bottom of the battery charger.
2. Insert the plug of battery charger into
the receptacle.
WARNING: Do not use the electrical
cord if damaged. Have it
repaired immediately.

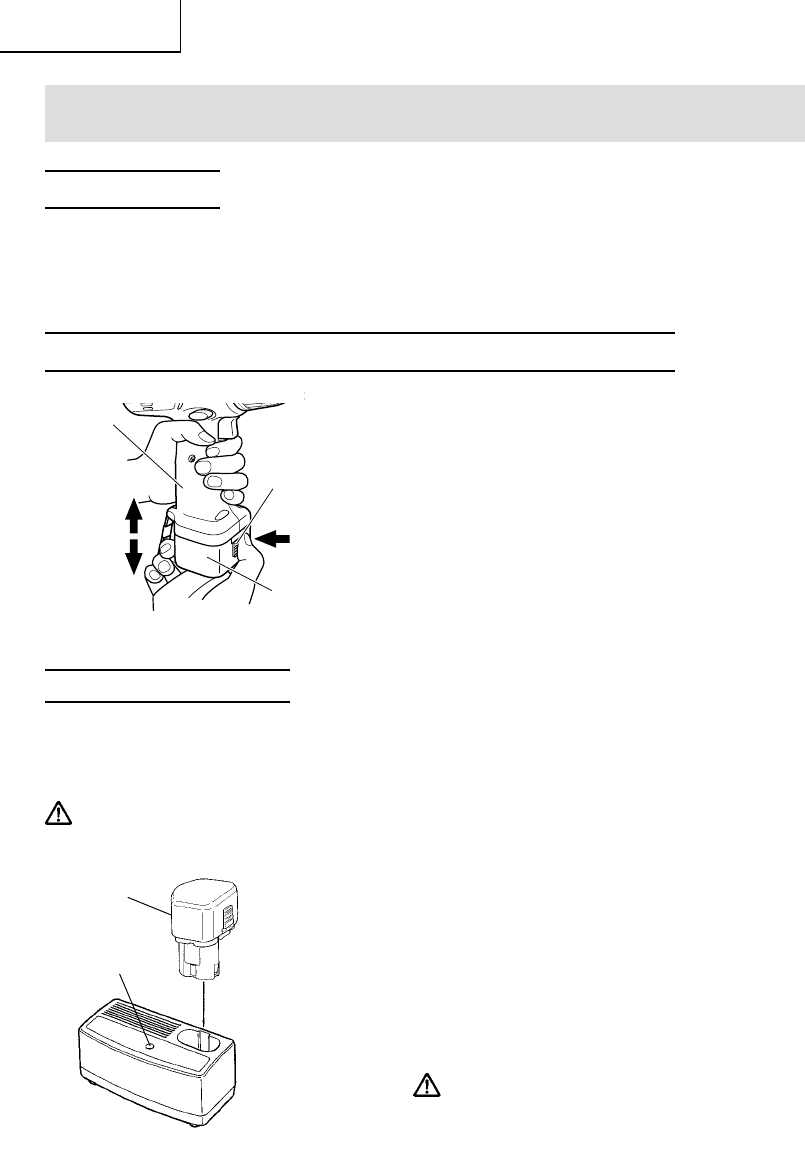

Fig. 3
Latch
Push
Handle
Pull out
Insert
Pilot Lamp
Battery
Fig. 4
Battery
