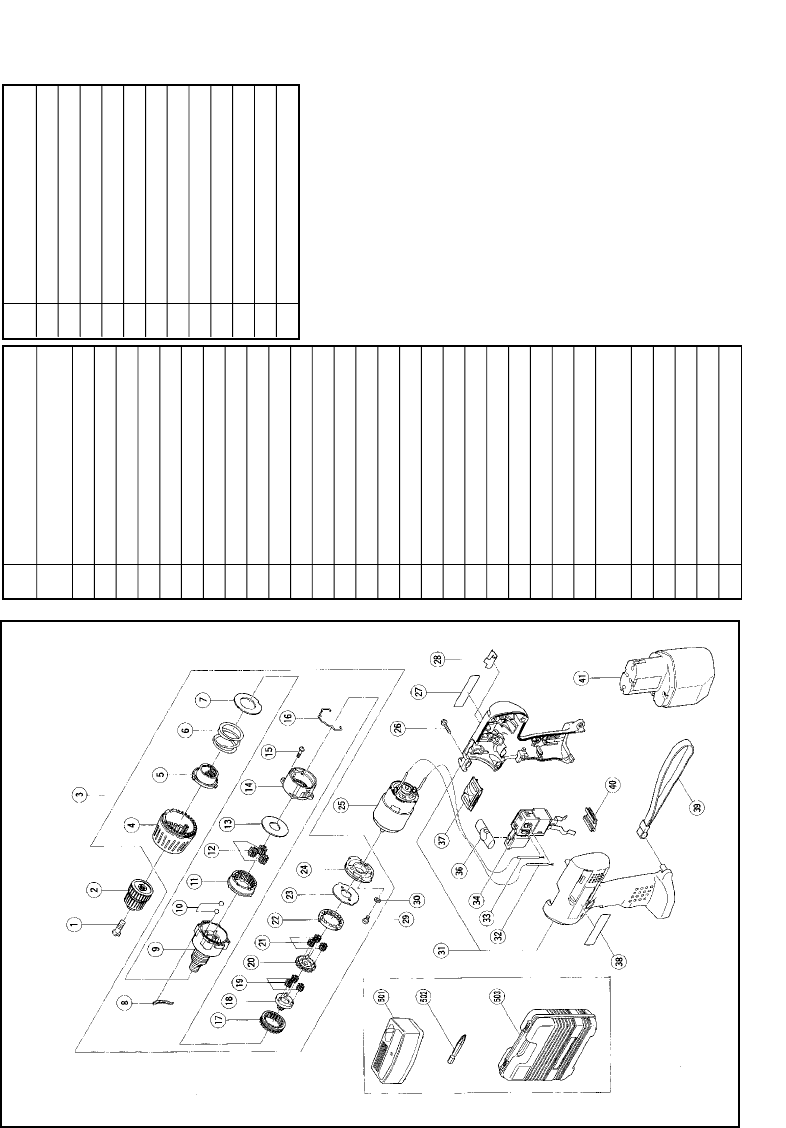

FDS12DVA
Item
Part Name
No.
1
Special Screw (Left Hand)
M5 × 35
2 Drill Chuck 10TLRD-N
3 Gear Box Ass'y
4 Cap
5 Nut
6 Spring
7 Washer (D)
8 Click Spring
9 Front Case
10 Steel Ball D5
11 Ring Gear
12 Planet Gear (C) Set
13 Washer (A)
14 Rear Case
15 Screw Set D3 × 12
16 Shift Arm
17 Slide Ring Gear
18 Pinion (C)
19 Planet Gear (B) Set
20 Pinion (B)
21 Planet Gear (A) Set
22 First Ring Gear
23 Washer (B)
24 Motor Spacer
25 Motor
26
Tapping Screw (W/Washer)
D3 × 16
27 Nameplate
28 Bit Holder
29 Machine Screw M3 × 8
30 Spring Washer M4
31 Housing (A) • (B) Set
Item
Part Name
No.
32 Internal Wire (B) (BLACK)
33 Internal Wire (B) (RED)
34 DC-Speed Control Switch
36 Pushing Button
37 Shift Knob
38 HITACHI Label
39 Strap
40 Terminal Support (A)
41 Battery FEB12S
501 Charger (Model UC12SD)
502 Phillps Bit No.2 55L
503 Case
FDS12DVA
