Husky HD219000 Nail Gun User Manual



Operational Modes
(Continued)

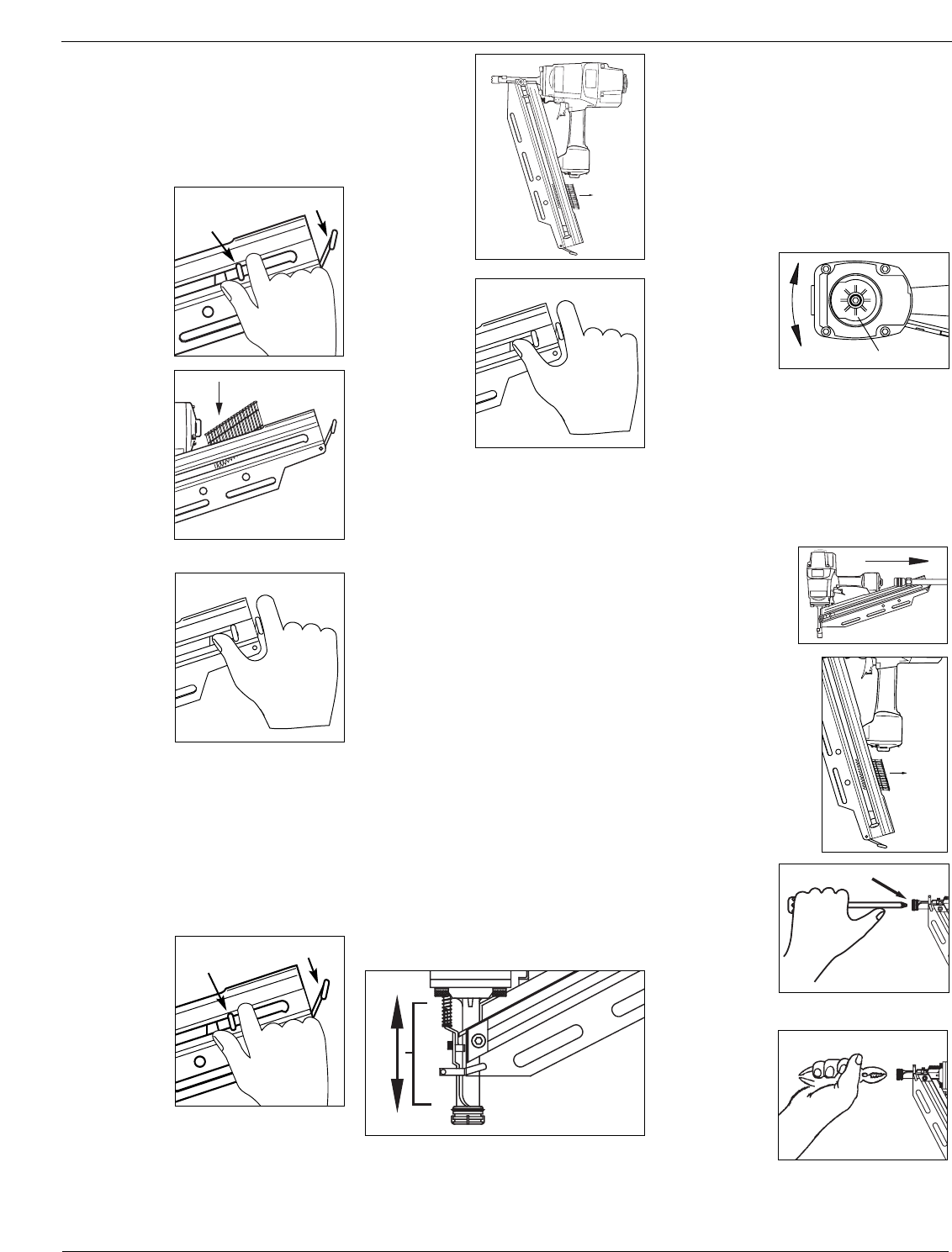

LOADING THE NAILER
1. Always connect the tool to the air
supply before loading fasteners.
2. Pull nail
pusher
mechanism
back until
pusher
engages
with
magazine
latch.
3. Load strips
of fasteners
into the
magazine
slot. Make
sure that
the nails
are placed
into tool at
the proper orientation.
4. Squeeze
the pusher
and the
latch
together to
unlatch
pusher.
Make sure
the head of
the last nail is under the head of the
pusher.
UNLOADING THE NAILER
1. Always unload all fasteners before
removing tool from service.
Unloading is the reverse of loading,
except always disconnect the air
hose before unloading.
2. Pull nail
pusher
mechanism
back until
pusher
engages
with
magazine
latch.
3. Hold tool
upright so
nails will
slide
backwards
toward
magazine
slot.
4. Squeeze
the pusher
and latch
together
to unlatch
the pusher
once all
nails have
been
removed.
ADJUSTING THE NAIL PENETRATION
The HD219000, HD289000, and HD349000
nailers are equipped with an adjustable
depth of drive feature. This allows the user
to determine how deep a fastener will be
driven into the work surface.
1. Adjust the operating pressure to a
pressure which will consistently
drive the fasteners. Do not exceed
the maximum operating pressure of
the nailer of 120 psi.
2. To adjust the depth-of-drive, loosen
the 4mm bolt on the top of nose.
To increase depth, push WCE in
toward nose as much as desired. Re-
tighten bolt. To decrease depth,
pull WCE out as much as desired.
Re-tighten bolt.
3. Make sure that the trigger and
work contact element (WCE) move
freely up and down without
binding or sticking after each
adjustment.
ANTI-DRY FIRE
The HD219000 is equipped with an Anti-
Dry Fire feature. This prevents the WCE
from being pushed in when only a few
nails remain. Simply load new nail clip
behind remaining nails to continue
shooting.
ADJUSTING THE DIRECTION OF THE
EXHAUST
The HD219000,
HD289000, and
HD349000
nailers are
equipped with
an adjustable
direction exhaust deflector. This is
intended to allow the user to change
the direction of the exhaust. Using the
5mm wrench provided, loosen the
deflector screw; then twist the
deflector to any direction desired and
re-tighten the screw.
CLEARING A JAM FROM THE NAILER
1. Disconnect
nailer from air
supply.
2. Remove all nails
from the
magazine (see
Loading/
Unloading).
Failure to do so
will cause the
nails to eject
from the front of
the tool.
3. Insert a
screw-
driver into
the nose of
the tool.
Push up on
the driver
blade to free the jammed nail.
4. Grab the
jammed
nail with
pliers and
remove.
Models HD219000, HD289000, & HD349000
5
Rotate
Nail pusher
mechanism
Latch
Nail pusher
mechanism
Latch
