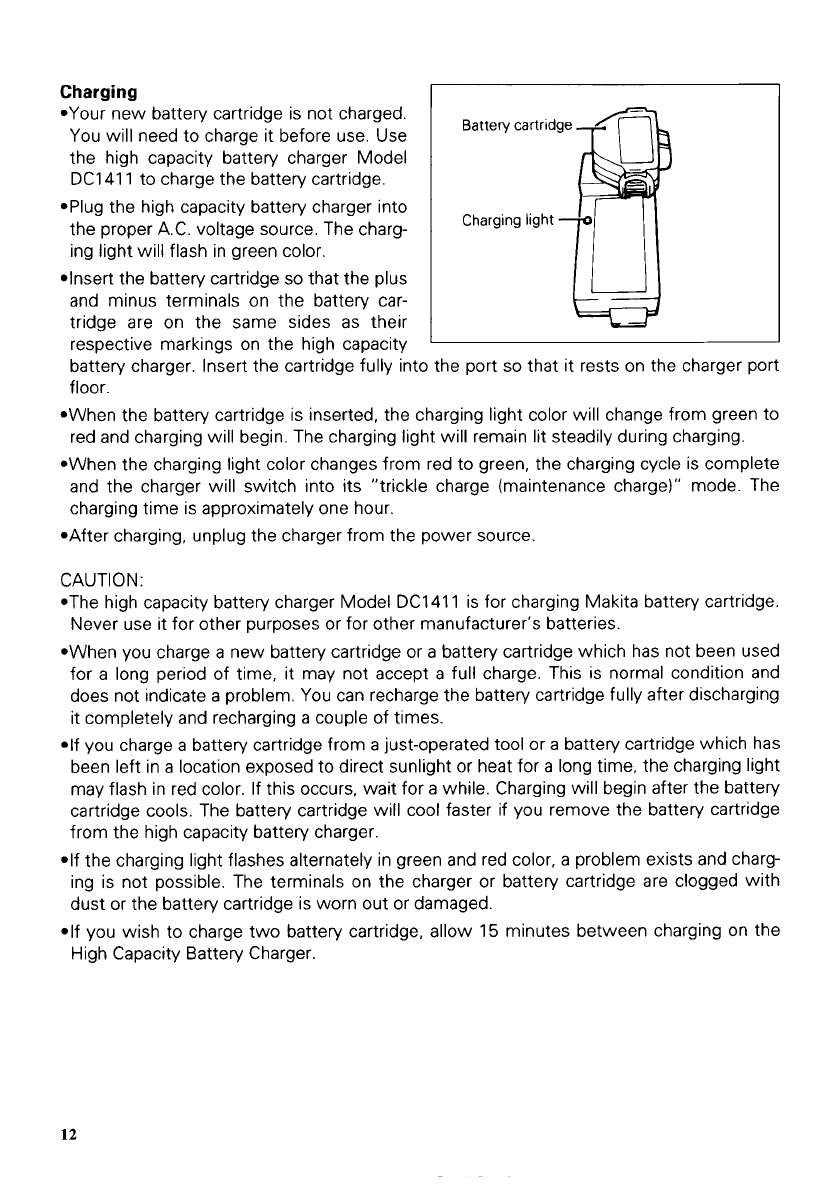

Charging
*Your new battery cartridge is not charged.
You will need to charge it before use. Use
the high capacity battery charger Model
DC1411 to charge the battery cartridge.
*Plug the high capacity battery charger into
the proper A.C. voltage source. The charg-
ing light will flash in green color.
*Insert the battery cartridge
so
that the plus
and minus terminals on the battery car-
tridge are on the same sides as their
respective markings on the high capacity
battery charger. Insert the cartridge fully into the port
so
that it rests on the charger port
floor.
*When the battery cartridge is inserted, the charging light color will change from green to
red and charging will begin. The charging light will remain lit steadily during charging.
*When the charging light color changes from red to green, the charging cycle is complete
and the charger will switch into its ”trickle charge (maintenance charge)” mode. The
charging time is approximately one hour.
*After charging, unplug the charger from the power source
CAUTIO
N
:
*The high capacity battery charger Model DC1411 is for charging Makita battery cartridge.
Never use it for other purposes or for other manufacturer‘s batteries.
*When you charge
a
new battery cartridge or
a
battery cartridge which has not been used
for
a
long period of time,
it
may not accept
a
full charge. This is normal condition and
does not indicate a problem. You can recharge the battery cartridge fully after discharging
it completely and recharging
a
couple of times.
*If you charge
a
battery cartridge from
a
just-operated tool or
a
battery cartridge which has
been left in
a
location exposed to direct sunlight or heat for
a
long time, the charging light
may flash in red color. If this occurs,
wait
for
a
while. Charging will begin after the battery
cartridge cools. The battery cartridge will cool faster if you remove the battery cartridge
from the high capacity battery charger.
*If the charging light flashes alternately in green and red color,
a
problem exists and charg-
ing is not possible. The terminals on the charger or battery cartridge are clogged with
dust or the battery cartridge is worn out or damaged.
*If you wish to charge two battery cartridge, allow 15 minutes between charging on the
High Capacity Battery Charger.
12
