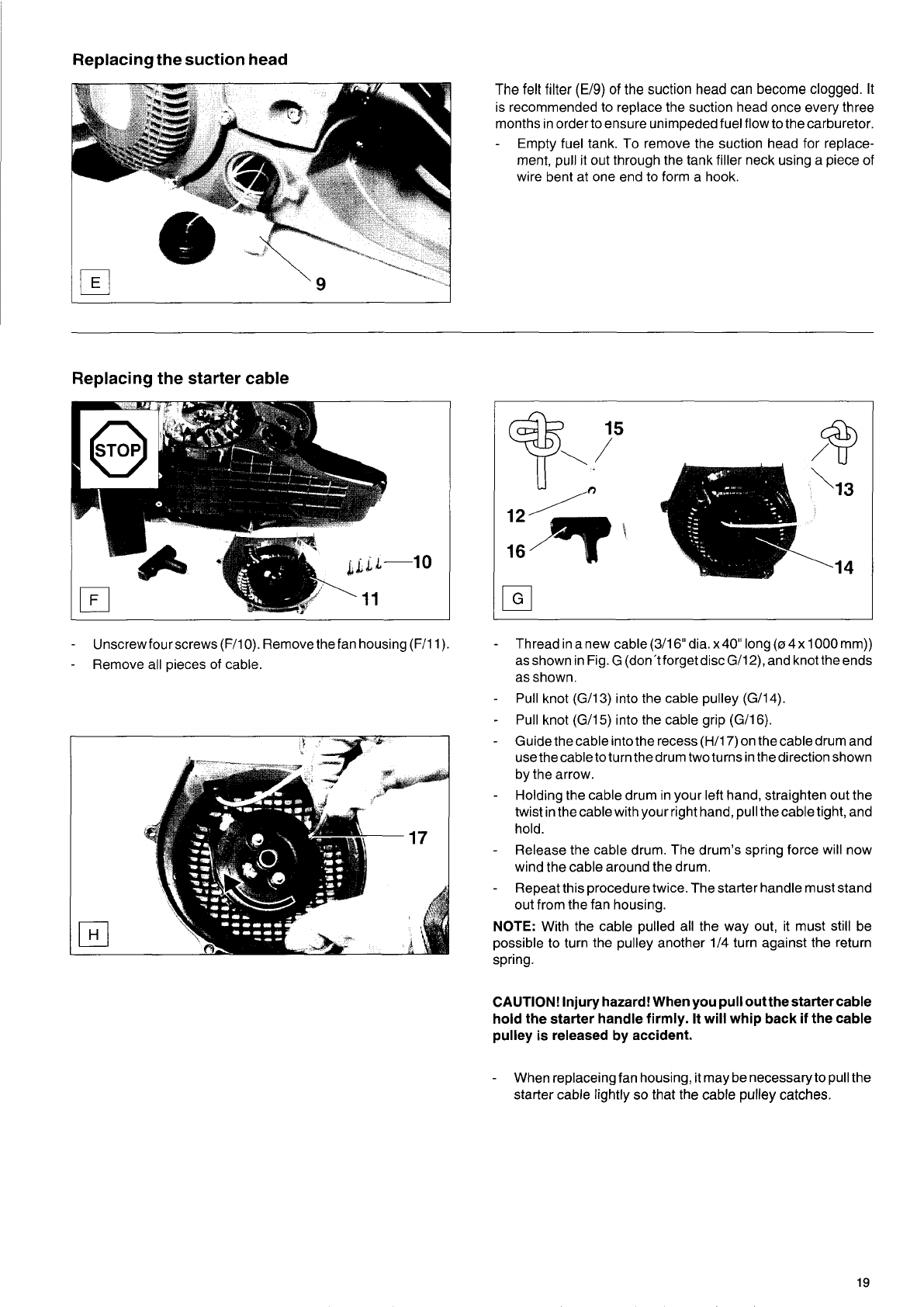

Replacing the suction head
The
felt filter
(E/9)
of
the suction head can become clogged. It
is recommended to replace the suction head once every three
months in orderto ensure unimpeded fuel flow to the carburetor.
-
Empty fuel tank. To remove the suction head for replace-
ment, pull it out through the tank filler neck using a piece
of
wire bent at one end to form a hook.
Replacing the starter cable
-
Unscrewfourscrews(F/lO).
Removethefan housing (F/ll).
-
Remove all pieces of cable.
-
Threadinanew
cable(3/16"dia.x40"long(04x1000mm))
as shown in Fig. G (don't forget disc G/12), and knot the ends
as shown.
-
Pull knot (G/13) into the cable pulley (G/14).
-
Pull knot (G/15) into the cable grip (G/16).
-
Guidethecableintothe recess(H/17)on thecabledrum and
use the cable to turn the drum two turns in the direction shown
by the arrow.
Holding the cable drum in your left hand, straighten out the
twist in the cable with your right hand, pull the cable tight, and
hold.
Release the cable drum. The drum's spring force will now
wind the cable around the drum.
-
Repeat this procedure twice. The starter handle must stand
out from the fan housing.
NOTE:
With the cable pulled all the way out, it must still be
possible to turn the pulley another 1/4 turn against the return
spring.
-
-
CAUTION!
Injury hazard! When you pull out the starter cable
hold the starter handle firmly. It will whip back
if
the cable
pulley
is
released by accident.
-
When replaceingfan housing, it may be necessaryto pull the
starter cable lightly
so
that the cable pulley catches.
19
