13

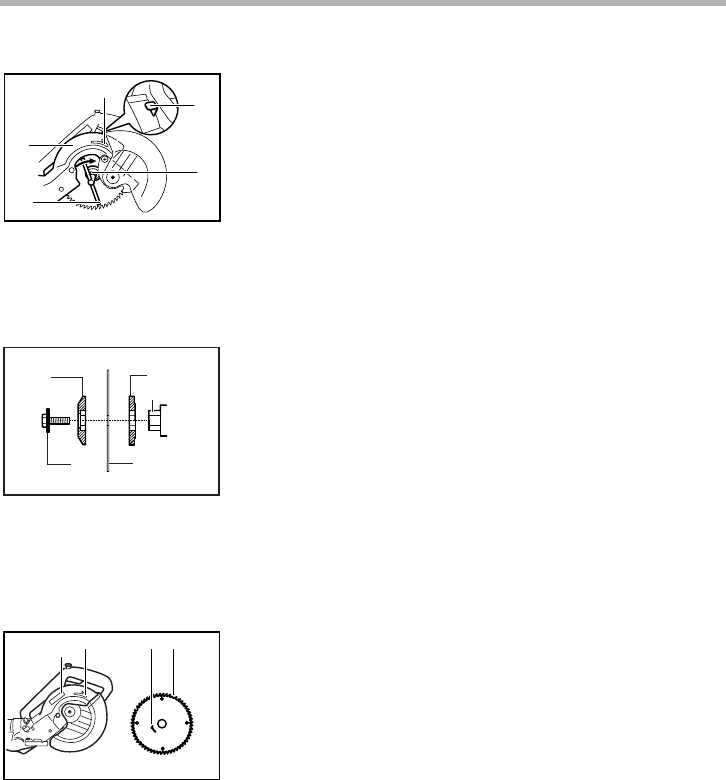

Press the shaft lock to lock the spindle and use the socket
wrench to loosen the hex bolt clockwise. Then remove the
hex bolt, outer flange and blade.
To install the blade, mount it carefully onto the spindle, mak-
ing sure that the direction of the arrow on the surface of the
blade matches the direction of the arrow on the blade case.
Install the outer flange and hex bolt, and then use the socket
wrench to tighten the hex bolt (left-handed) securely counter-
clockwise while pressing the shaft lock.
Return the blade guard and center cover to its original posi-
tion. Then tighten the hex bolt clockwise to secure the center
cover. Release the handle from the raised position by pulling
the stopper pin. Lower the handle to make sure that the
blade guard moves properly. Make sure shaft lock has
released spindle before making cut.
1. Shaft lock
2. Arrow
3. Blade case
4. Socket wrench
5. Hex bolt
2
5
4
3
1
002216
1. Outer flange
2. Inner flange
3. Spindle
4. Saw blade
5. Hex bolt
1. Blade case
2. Arrow
3. Saw blade
4. Arrow
5
4
3
2
1
001771
21 34
002254
