Makita LS0711Z Cordless Saw User Manual



15

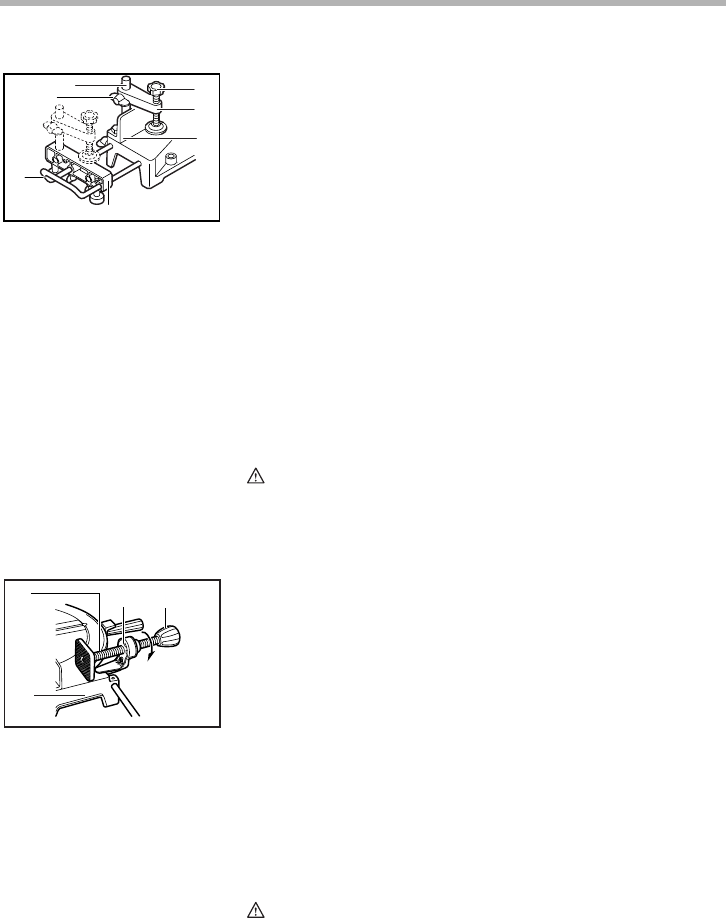

Vertical vise
The vertical vise can be installed in two positions on either
the left or right side of the guide fence or the holder assembly
(optional accessory). Insert the vise rod into the hole in the
guide fence or the holder assembly and tighten the screw to
secure the vise rod.
Position the vise arm according to the thickness and shape
of the workpiece and secure the vise arm by tightening the
screw. If the screw to secure the vise arm contacts the guide
fence, install the screw on the opposite side of vise arm.
Make sure that no part of the tool contacts the vise when
lowering the handle fully and pulling or pushing the carriage
all the way. If some part contacts the vise, re-position the
vise.
Press the workpiece flat against the guide fence and the turn
base. Position the workpiece at the desired cutting position
and secure it firmly by tightening the vise knob.
CAUTION:
The workpiece must be secured firmly against the turn
base and guide fence with the vise during all operations.
Horizontal vise (optional accessory)
The horizontal vise can be installed on the left side of the
base. By turning the vise knob counterclockwise, the screw
is released and the vise shaft can be moved rapidly in and
out. By turning the vise knob clockwise, the screw remains
secured. To grip the workpiece, turn the vise knob gently
clockwise until the projection reaches its topmost position,
then fasten securely. If the vise knob is forced in or pulled out
while being turned clockwise, the projection may stop at an
angle. In this case, turn the vise knob back counterclockwise
until the screw is released, before turning again gently clock-
wise.
The maximum width of the workpiece which can be secured
by the horizontal vise is 120 mm (4-3/4).
CAUTION:
Grip the workpiece only when the projection is at the
topmost position. Failure to do so may result in
insufficient securing of the workpiece. This could cause
the workpiece to be thrown, cause damage to the blade
or cause the loss of control, which can result in
PERSONAL INJURY.
1. Vise arm
2. Vise rod
3. Guide fence
4. Holder
5. Holder assembly
6. Vise knob
7. Screw
2
7
4
5
3
1
6
002255
1. Vise knob
2. Projection
3. Vise shaft
4. Base
12
3
4
001807
