10
positioning which exposes operator to chips and wood dust
being ejected from saw. Use eye protection to help avoid
injury.

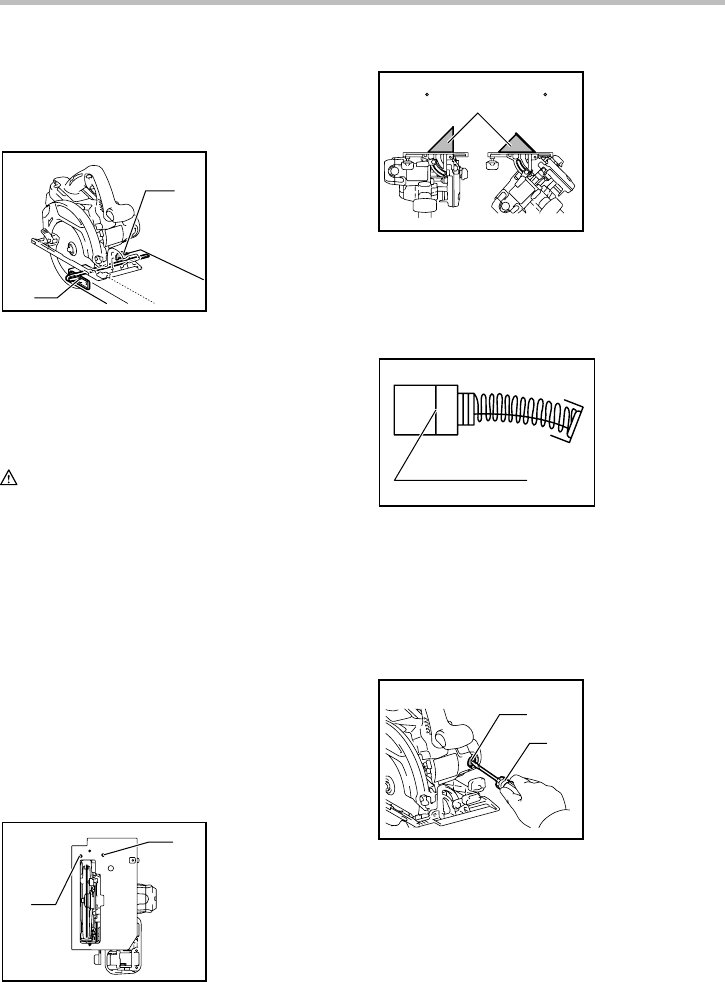

Rip fence (Guide rule) (optional accessory)
1
2
014253
The handy rip fence allows you to do extra-accurate
straight cuts. Simply slide the rip fence up snugly
against the side of the workpiece and secure it in
position with the clamping screw on the front of the base.
It also makes repeated cuts of uniform width possible.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Clean out the upper and lower guards to
ensure there is no accumulated sawdust which
may impede the operation of the lower
guarding system. A dirty guarding system may
limit the proper operation which could result in
serious personal injury. The most effective way to
accomplish this cleaning is with compressed air. If
the dust is being blown out of the guards be
sure the proper eye and breathing protection is
used.
•
Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
Adjusting for accuracy of 0° and 45° cut
(vertical and 45° cut)
1
2
014230
1
0
45
014231
This adjustment has been made at the factory. But if it is
off, adjust the adjusting screws with a hex wrench while
inspecting 0° or 45° the blade with the base using a
triangular rule or square rule, etc.
Replacing carbon brushes
1
001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
1
2
014233
After replacing brushes, insert the battery cartridge into
the tool and break in brushes by running tool with no
load for about 1 minute. Then check the tool while
running and electric brake operation when releasing the
switch trigger. If electric brake is not working well, ask
your local Makita service center for repair.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
1. Screwdriver
2. Brush holder cap
1. Limit mark
1. Triangular rule
1. Adjusting screw
for 45 ﾟ
2. Adjusting screw
for 0 ﾟ
1. Clamping screw
2. Rip fence
(Guide rule)
