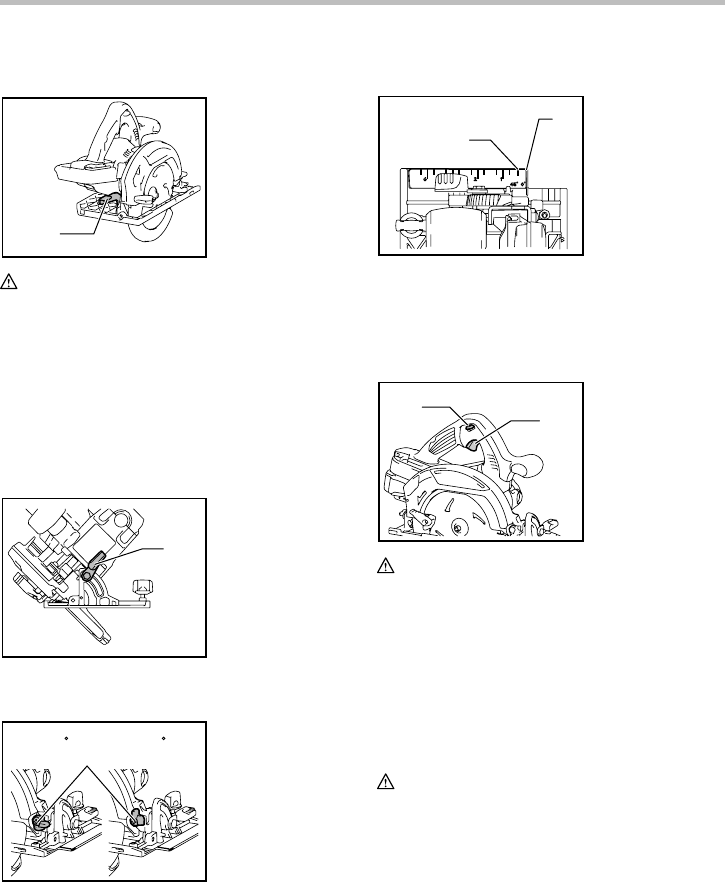

Adjusting depth of cut
1
014224
CAUTION:
• After adjusting the depth of cut, always tighten the
lever securely.
Loosen the lever on the depth guide and move the base
up or down. At the desired depth of cut, secure the base
by tightening the lever.
For cleaner, safer cuts, set cut depth so that no more
than one blade tooth projects below workpiece. Using
proper cut depth helps to reduce potential for dangerous
KICKBACKS which can cause personal injury.
Bevel cutting
1
014225
Loosen the front lever. Set for the desired angle (0° -
50°) by tilting accordingly, then tighten the lever securely.
1
0-45
0-50
014226
Use the 45° stopper when you do precise 45° angle
cutting. Turn the stopper clockwise fully for bevel cut (0°
- 45°) and turn it counterclockwise for 0° - 50° bevel
cuts.
Sighting
1
2
014227
For straight cuts, align the 0° position on the front of the
base with your cutting line. For 45° bevel cuts, align the
45° position with it. The position of the top guide is
adjustable.
Switch action
1
2
014211
CAUTION:
• Before installing the battery cartridge into the tool,
always check to see that the switch trigger
actuates properly and returns to the "OFF"
position when released.
• Do not pull the switch trigger hard without pressing
the lock-off lever. This can cause switch breakage.
To prevent the switch trigger from being accidentally
pulled, a lock-off lever is provided. To start the tool,
press the lock-off lever and pull the switch trigger.
Release the switch trigger to stop.
WARNING:
• For your safety, this tool is equipped with lock-off
lever which prevents the tool from unintended
starting. NEVER use the tool if it runs when you
simply pull the switch trigger without pressing the
lock-off lever. Return tool to a MAKITA service
center for proper repairs BEFORE further usage.
• NEVER tape down or defeat purpose and function
of lock-off lever.
1. Switch trigger
2. Lock-off lever
1. Cutting line
(0 ﾟ position)
2. Cutting line
(45 ﾟ position)
1. Stopper
1. Front lever
1. Lever
