11 - ENG A15414
by the regulator and is always less
than or equal to the tank pressure.
Regulator: Controls the air
pressure shown on the outlet
pressure gauge. Turn regulator knob
clockwise to increase pressure
and counterclockwise to decrease
pressure.
Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan
to blow air through the vent holes
in large amounts. You know that the
cooling system is working when air is
being expelled.
Air Compressor Pump (not shown):
Compresses air into the air tank.
Working air is not available until the
compressor has raised the air tank
pressure above that required at the
air outlet.
Description of Operation
Become familiar with these controls
before operating the unit.
On(I)/Off(O) Switch: Place this switch
in the ON (I) position to provide auto-
matic power to the pressure switch
and OFF (O) to remove power at the
end of each use.
Pressure Switch (not shown): The
pressure switch automatically starts
the motor when the air tank pressure
drops below the factory set "cut-in"
pressure. It stops the motor when the
air tank pressure reaches the factory
set "cut-out" pressure.
Safety Valve: If the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its fac-
tory set pressure (slightly higher than
the pressure switch "cut-out" setting).
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air pres-
sure available at the outlet side of the
regulator. This pressure is controlled
OPERATION

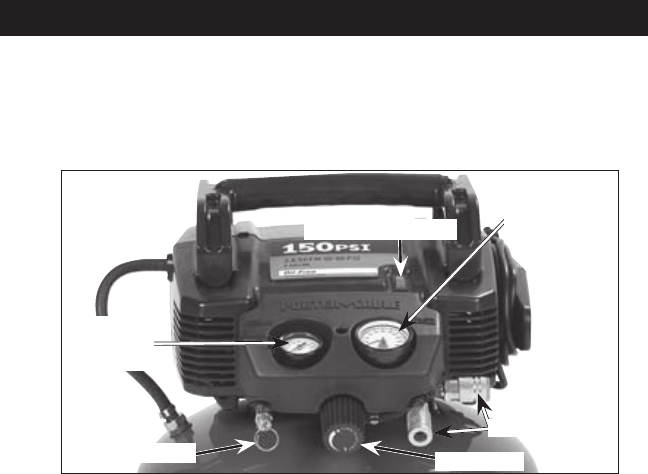

Know Your Air Compressor
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
On(I)/Off(O) Switch
Safety Valve
Tank
Pressure
Gauge
Outlet
Pressure
Gauge
Regulator
Quick Connect
